Prediction and Design of the Optimal Punch Shape for Recess Forging

Abstract:

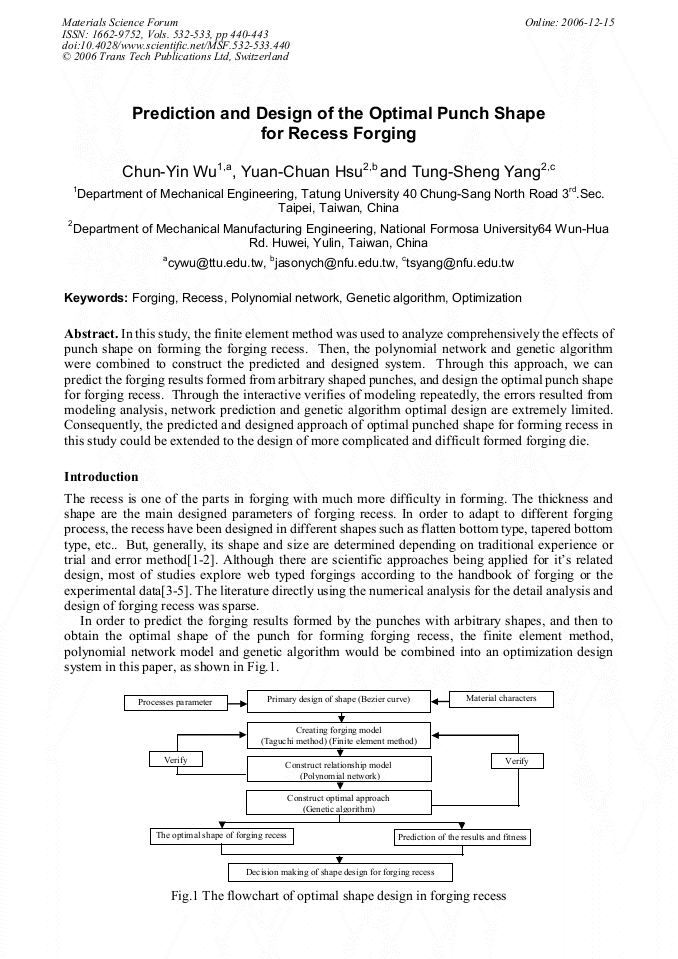

Article Preview

In this study, the finite element method was used to analyze comprehensively the effects of punch shape on forming the forging recess. Then, the polynomial network and genetic algorithm were combined to construct the predicted and designed system. Through this approach, we can predict the forging results formed from arbitrary shaped punches, and design the optimal punch shape for forging recess. Through the interactive verifies of modeling repeatedly, the errors resulted from modeling analysis, network prediction and genetic algorithm optimal design are extremely limited. Consequently, the predicted and designed approach of optimal punched shape for forming recess in this study could be extended to the design of more complicated and difficult formed forging die.

Info:

Periodical:

Materials Science Forum (Volumes 532-533)

Edited by:

Chengyu Jiang, Geng Liu, Dinghua Zhang and Xipeng Xu

Pages:

440-443

DOI:

10.4028/www.scientific.net/MSF.532-533.440

Citation:

C. Y. Wu et al., "Prediction and Design of the Optimal Punch Shape for Recess Forging ", Materials Science Forum, Vols. 532-533, pp. 440-443, 2006

Online since:

December 2006

Export:

Price:

$35.00

[1] W.S. Lin: Handbook of Forging Technology (The Forging Association of R.O.C., 1997).

[2] I.G. Lin: Handbook of Hot Forging Die Aesign (The Center of Metal Industrial Development, 1990).

[3] S.I. Oh and S. M. Yoon: Annals of the CIRP, Vol. 43/1 (1994).

[4] J.C. Choi, B.M. Kim and S.W. Kim: J. of Mater. Pro. Tech., Vol. 54 (1995).

[5] J.C. Choi, B.M. Kim, S.W. Kim and C.H. Kim: J. of Mater. Pro. Tech., Vol. 62 (1996).

[6] W.J. Gordon and R.F. Riesenfeld: Journal of ACM, Vol. 21 (1974).

[7] A.G. Ivakhnenko: IEEE Transaction on Systems, Man, and Cybernetics, 1/4 (1971).

[8] User's Manual AIM-PC Version1. 0 (Abtech Corpration, 1988).

[9] D.E. Goldberg: Genetic Algorithms in Search, Optimization and Machine Learning (Addison-Wesley Publishing Company, Inc. 1989). Output value of GA Input value(X1, X2, X3) Fitness Effective strain Forging load.
