Study on Fixed Abrasive Lapping Technology for Ceramic Balls

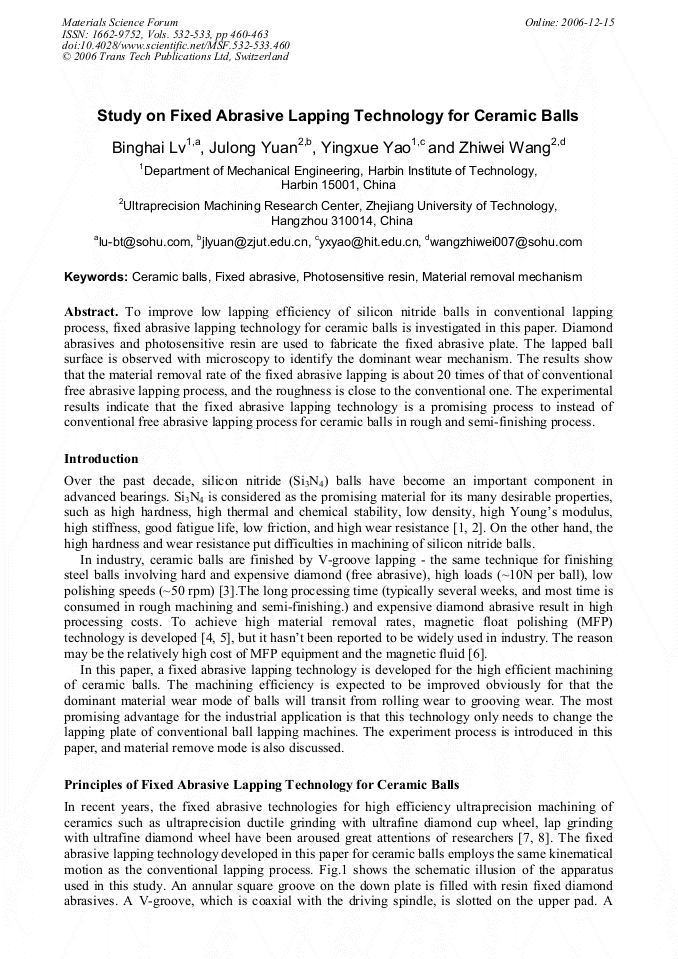

Article Preview

To improve low lapping efficiency of silicon nitride balls in conventional lapping process, fixed abrasive lapping technology for ceramic balls is investigated in this paper. Diamond abrasives and photosensitive resin are used to fabricate the fixed abrasive plate. The lapped ball surface is observed with microscopy to identify the dominant wear mechanism. The results show that the material removal rate of the fixed abrasive lapping is about 20 times of that of conventional free abrasive lapping process, and the roughness is close to the conventional one. The experimental results indicate that the fixed abrasive lapping technology is a promising process to instead of conventional free abrasive lapping process for ceramic balls in rough and semi-finishing process.



Materials Science Forum (Volumes 532-533)

Edited by:

Chengyu Jiang, Geng Liu, Dinghua Zhang and Xipeng Xu




B. H. Lv et al., "Study on Fixed Abrasive Lapping Technology for Ceramic Balls", Materials Science Forum, Vols. 532-533, pp. 460-463, 2006

Online since:

December 2006




[1] M. Jiang and R. Komanduri: Key Engineering Materials, Vol. 202-203 (2001), pp.1-14.

[2] N. Umehara, T. Kirtane and et al: International Journal of Machine Tools & Manufacture, Vol. 46 (2006), pp.151-169.

[3] J.L. Yuan, B.H. Lu and et al: Journal of Materials Processing Technology, Vol. 129 (2002), pp.171-175.

[4] Y. Tani and K. Kawata: Annals of the CIRP, Vol. 33 (1984) No. 1, pp.17-220.

[5] M. Raghunandan and R. Komanduri: Trans. ASME J. Manf. Sci. and Eng., Vol. 120 (1998), pp.376-386.

[6] T.H.C. Child and D.J. Moss: Annals of the CIRP, Vol. 49 No. 1 (2000), pp.261-255.

[7] H.H. Gatzen and J. Chris Maetzig: Vol. 21 (1997), pp.134-13.

[8] H. Eda, L. Zhou and et al: Annals of CIRP, Vol. 50 (2001) No. 1, pp.225-228.

[9] W. Peng, T. Gao and C.Y. Yao: Key Engineering Material, Vol. 304-305 (2006), pp.71-75.
