Synthesis and Characterization of Delafossite CuLaO2 for Thermoelectric Application

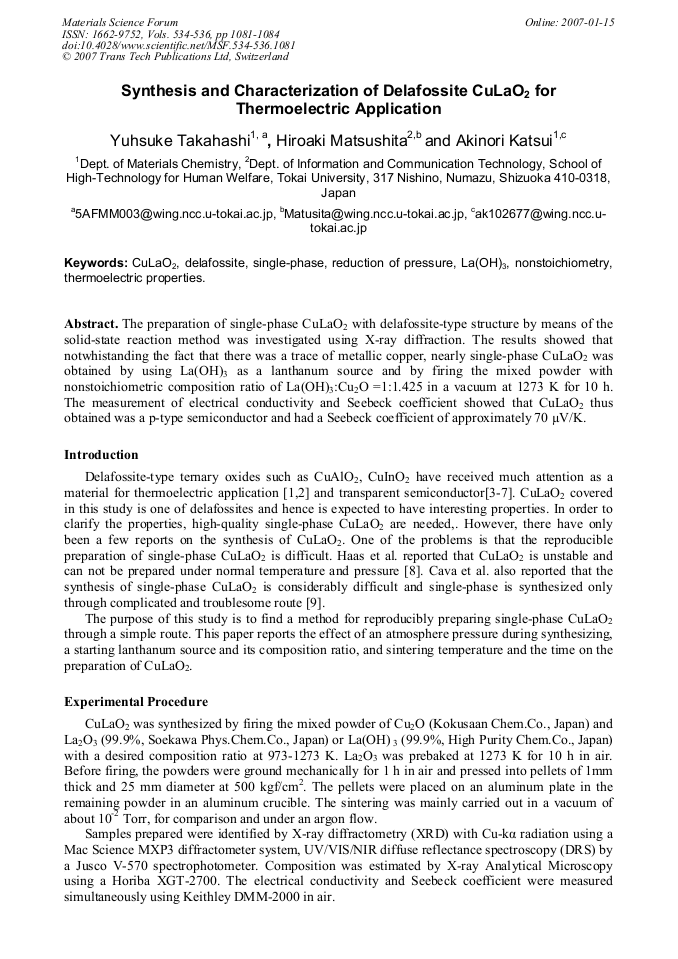

Article Preview

The preparation of single-phase CuLaO2 with delafossite-type structure by means of the solid-state reaction method was investigated using X-ray diffraction. The results showed that notwhistanding the fact that there was a trace of metallic copper, nearly single-phase CuLaO2 was obtained by using La(OH)3 as a lanthanum source and by firing the mixed powder with nonstoichiometric composition ratio of La(OH)3:Cu2O =1:1.425 in a vacuum at 1273 K for 10 h. The measurement of electrical conductivity and Seebeck coefficient showed that CuLaO2 thus obtained was a p-type semiconductor and had a Seebeck coefficient of approximately 70 /V/K.



Materials Science Forum (Volumes 534-536)

Edited by:

Duk Yong Yoon, Suk-Joong L. Kang, Kwang Yong Eun and Yong-Seog Kim




Y. Takahashi et al., "Synthesis and Characterization of Delafossite CuLaO2 for Thermoelectric Application", Materials Science Forum, Vols. 534-536, pp. 1081-1084, 2007

Online since:

January 2007




Fetching data from Crossref.
This may take some time to load.
