Shrinkage Free Sintering of Low Temperature Cofired Ceramics by Glass Infilteration

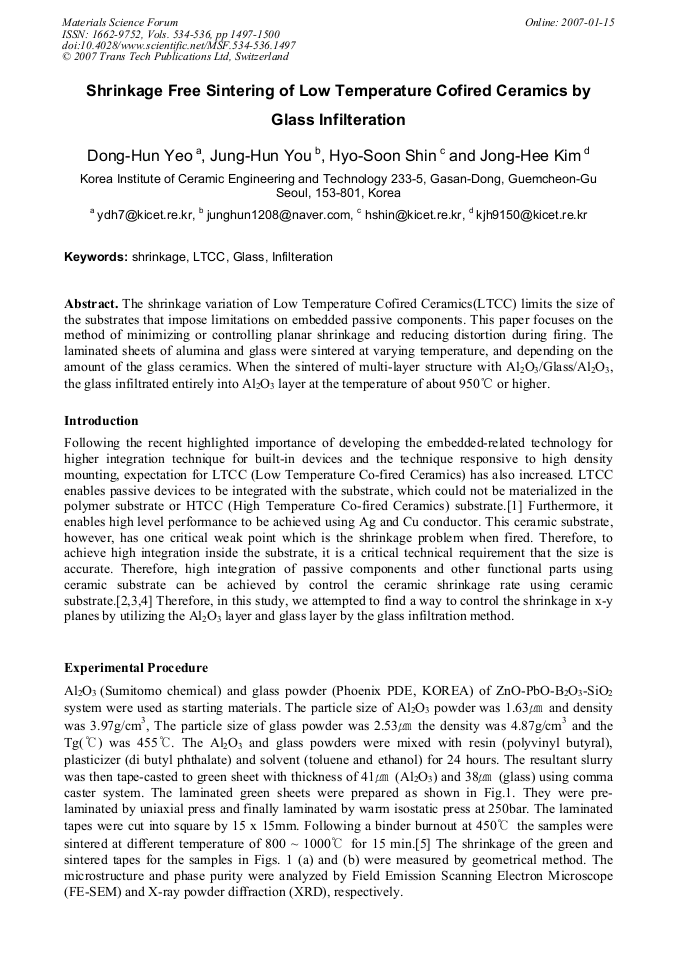

Article Preview

The shrinkage variation of Low Temperature Cofired Ceramics(LTCC) limits the size of the substrates that impose limitations on embedded passive components. This paper focuses on the method of minimizing or controlling planar shrinkage and reducing distortion during firing. The laminated sheets of alumina and glass were sintered at varying temperature, and depending on the amount of the glass ceramics. When the sintered of multi-layer structure with Al2O3/Glass/Al2O3, the glass infiltrated entirely into Al2O3 layer at the temperature of about 950°C or higher.



Materials Science Forum (Volumes 534-536)

Edited by:

Duk Yong Yoon, Suk-Joong L. Kang, Kwang Yong Eun and Yong-Seog Kim




D. H. Yeo et al., "Shrinkage Free Sintering of Low Temperature Cofired Ceramics by Glass Infilteration ", Materials Science Forum, Vols. 534-536, pp. 1497-1500, 2007

Online since:

January 2007




[1] M. Udovic, M. Valant and D. Duvorov: J. Am. Ceram. Soc. Vol. 87(2004), p.591.

[2] Frans P. Lautzenhiser, Edmar M. Amaya and J. Thomas, U.S. Patent 6, 949, 156B2. (2005).

[3] Carl Baasun Wang, Kenneth Warren Hang, Christopher Roderick and Stewart Needes, U.S. Patent 6, 776, 861B2. (2004).

[4] Kurt R. Mikeska and Daniel T. Schaefer, U.S. Patent 5, 474, 741. (1995).

[5] Jae-Suk Sung, Ki-Duk Koo and Chong-Kwang Yoon: J. Korean Ceramic Soc. Vol. 33, No. 11(1996), p.1253.

[6] Hyo-Soon Shin, Jong-Hoe Wang and Jong-Hee Kim: submitted to Materials Science Forum (2006).

[7] Chin-Lung Chen, Wen-Cheng J. Wei and Andreas Roosen: J. European Ceramic Soc. 26 (2006), p.59.
