Fabrication of Deep-Sub-Millimeter-Thick Compacts Using Spark Plasma Sintering

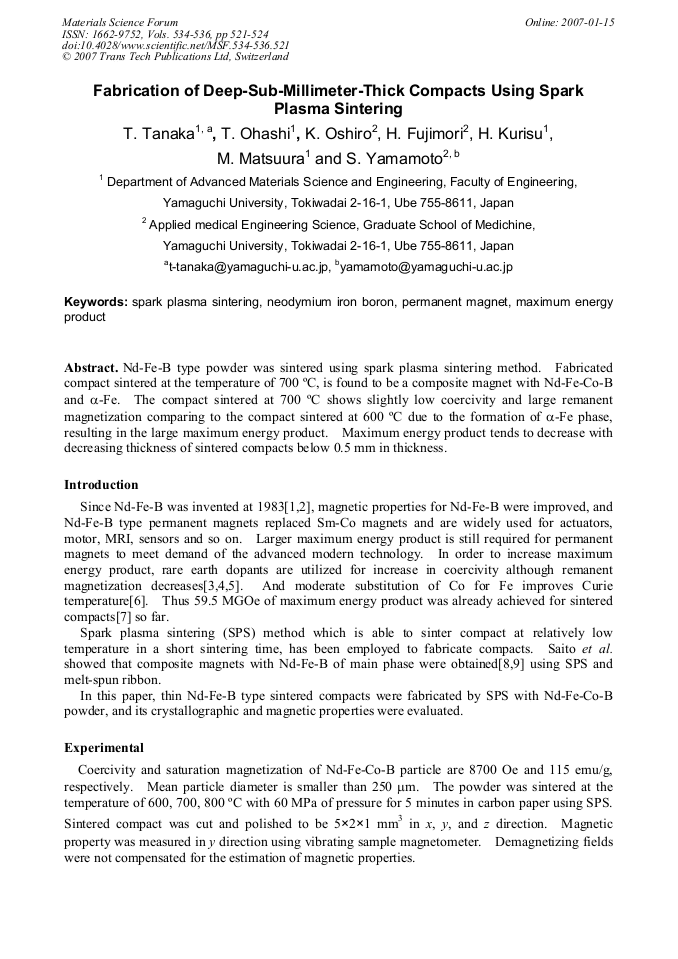

Article Preview

Nd-Fe-B type powder was sintered using spark plasma sintering method. Fabricated compact sintered at the temperature of 700 °C, is found to be a composite magnet with Nd-Fe-Co-B and α-Fe. The compact sintered at 700 °C shows slightly low coercivity and large remanent magnetization comparing to the compact sintered at 600 °C due to the formation of α-Fe phase, resulting in the large maximum energy product. Maximum energy product tends to decrease with decreasing thickness of sintered compacts below 0.5 mm in thickness.



Materials Science Forum (Volumes 534-536)

Edited by:

Duk Yong Yoon, Suk-Joong L. Kang, Kwang Yong Eun and Yong-Seog Kim




T. Tanaka et al., "Fabrication of Deep-Sub-Millimeter-Thick Compacts Using Spark Plasma Sintering", Materials Science Forum, Vols. 534-536, pp. 521-524, 2007

Online since:

January 2007




[1] M. Sagawa, S. Fujirama, H. Yamamoto and Y. Matsuura: J. Appl. Phys., Vol. 55 (1984) p. (2083).

[2] J. J. Croat, J. F. Herbst, R. W. Lee and F. E. Pinkerton:J. Appl. Phys., Vol. 55 (1984) p. (2079).

[3] M. Sagawa, S. Fujirama, H. Yamamoto and K. Hiraga: IEEE Trans. Magn., Vol. MAG-20 (1984), p.1584.

[4] R. D. Brown and J. R. Cost : IEEE Trans. Magn., Vol. 20 (1989), p.3117.

[5] D. N. Brown, M. Smith, B. M. Ma and P. Campbell: IEEE Trans. Magn., Vol. 40 (2004), p.2895.

[6] V. Neu and L. Schults:J. Appl. Phys., Vol. 90 (2001) p.1540.

[7] NEOMAX environmental sustainability report, (2005) p.26.

[8] H. Ono, N. Waki, M. Shimada, T. Sugiyama, A. Fujiki, H. Yamamoto and M. Tani: IEEE Trans. Magn., Vol. 37 (2001) p.2552.

[9] T. Saito, T. Takeuchi and H. Kageyama: J. Appl. Phys., Vol. 97(2005) p. 10H103.

[10] H. Ono, T. Tayu, N. Waki, T. Sugiyama, M. Shimada, M. Kanou, A. Fijiki, H. Yamamoto, K. Takasugi and M. Tani:J. Appl. Phys., Vol. 93(2003) p.4060.

[11] K. Mori, R. Nakayama and K. Morimoto:J. Jpn. Soc. Pwder and Powder Metallurgy Vol. 52, (2005) p.700. Fig. 4 Thickness dependence of normalized maximum energy product for compact sintered at 700 ºC.
