Stable and Unstable Crack Growth in Chromium Pre-Alloyed Steel


Article Preview

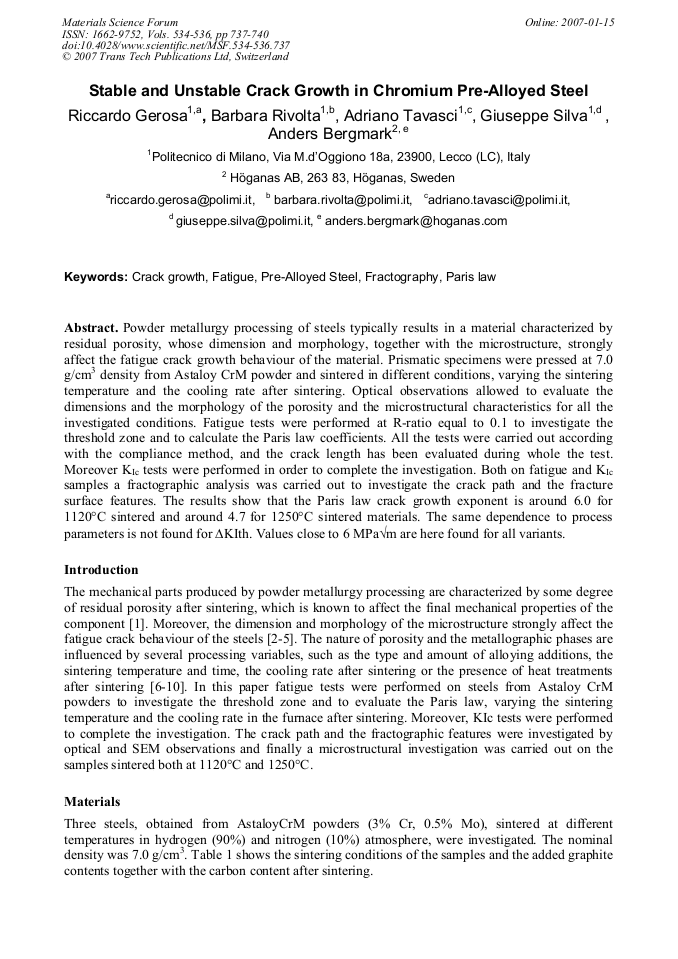

Powder metallurgy processing of steels typically results in a material characterized by residual porosity, whose dimension and morphology, together with the microstructure, strongly affect the fatigue crack growth behaviour of the material. Prismatic specimens were pressed at 7.0 g/cm3 density from Astaloy CrM powder and sintered in different conditions, varying the sintering temperature and the cooling rate after sintering. Optical observations allowed to evaluate the dimensions and the morphology of the porosity and the microstructural characteristics for all the investigated conditions. Fatigue tests were performed at R-ratio equal to 0.1 to investigate the threshold zone and to calculate the Paris law coefficients. All the tests were carried out according with the compliance method, and the crack length has been evaluated during whole the test. Moreover KIc tests were performed in order to complete the investigation. Both on fatigue and KIc samples a fractographic analysis was carried out to investigate the crack path and the fracture surface features. The results show that the Paris law crack growth exponent is around 6.0 for 1120°C sintered and around 4.7 for 1250°C sintered materials. The same dependence to process parameters is not found for KIth. Values close to 6 MPa√m are here found for all variants.



Materials Science Forum (Volumes 534-536)

Edited by:

Duk Yong Yoon, Suk-Joong L. Kang, Kwang Yong Eun and Yong-Seog Kim




R. Gerosa et al., "Stable and Unstable Crack Growth in Chromium Pre-Alloyed Steel ", Materials Science Forum, Vols. 534-536, pp. 737-740, 2007

Online since:

January 2007




[1] German, R.M., Powder Metallurgy of Iron and Steel, Wiley Intersciences, New York, (1998).

[2] Bergmark, L. Alzati, FFEMS, Vol. 28, n 1-2, (2005).

[3] D.A. Gerard, D.A. Koss, Int. J. Fatigue, Vol. 13, n. 4, 345-352, (1991).

[4] Holmes J., Queeney R.A., Powd. Metall., Vol. 28, n 4, pp.231-235, (1985).

[5] S.J. Polasik, J.J. Williams, N. Chawlas, Metall and Mat Trans A, Vol. 33, n 1, pp.73-81, (2002).

[6] G. L'Esperance, E. Duchesne, A. de Rege, Adv Powd Metall&Part Mat, Metal Powder Industries Federation, Princeton, NJ, 1996, 11-397/11-413.

[7] G. F. Bocchini, B. Rivolta, G. Silva, P. Piccardo, M. R. Pinasco, E. Poggio, P/M Sci & Tech Briefs, Vol. 4, n 4, 2002, 16-21.

[8] G. F. Bocchini, B. Rivolta, G. Silva, M.G. Ienco, M.R. Pinasco, E. Stagno, Adv Powd Metall & Partic Mat, Metal Powder Industries Federation, Princeton, NJ, 2002, 13-60/13-72.

[9] G. F. Bocchini, B. Rivolta, G. Silva, A. Baggioli, P. Piccardo, E. Poggio, 2002 World Congress on Powd Metall&Part Mat, Orlando, 16-21 June (2002).

[10] G. F. Bocchini, A. Baggioli, R. Gerosa, B. Rivolta, G. Silva, Int. J. Powd. Metall., Vol. 40, n 5, (2004).

[11] R. Gerosa, B. Rivolta, A. Tavasci, G. Silva, CP2006, Parma, September 2006, in press.

[12] BS 6835, BSI, (1998).

[13] ASTM E647-00, ASTM, West Conshohocken, USA.

[14] I. Bertilsson, Mechanical behaviour of sintered steels, Department of Engineering Metals Chalmers University of Technology, S412 96 Goteborg, Sweden.

[15] H. Drar, Adv Powd Metall & Part Mat, PM2TEC 2001, New Orleans.

[16] H. Drar, Eng. Fract. Mech., Vol. 55, n 6 (1996), 901-917.

[17] ASTM E 399 - 90 (Reapproved 1997), ASTM, West Conshohocken, USA.

Fetching data from Crossref.
This may take some time to load.
