Effect of Porosity Content on the Weldability of Powder Metal Parts Produced by Friction Stir Welding


Article Preview

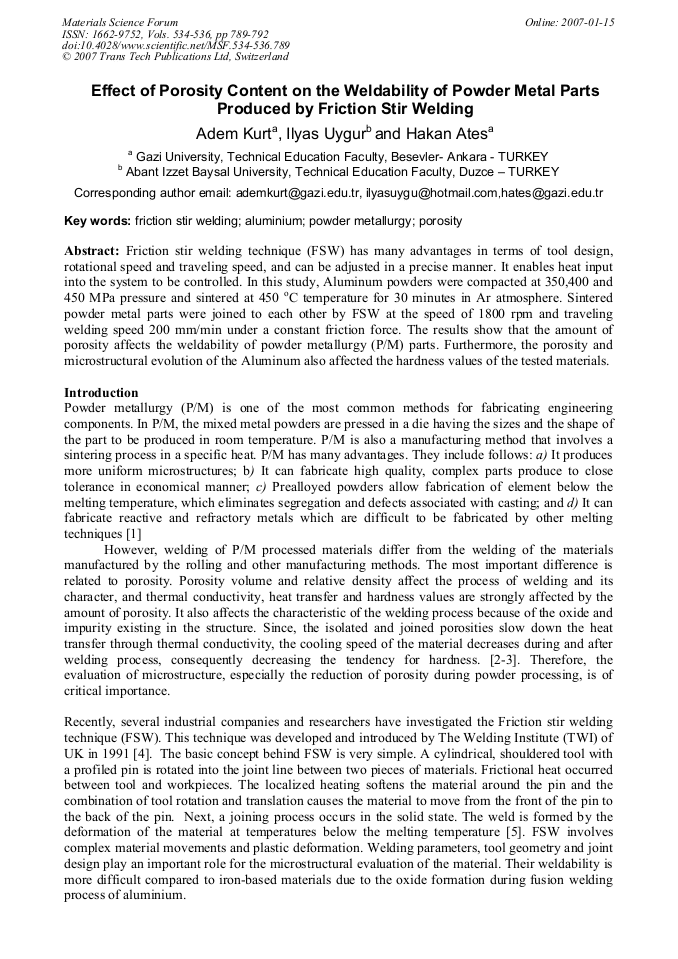

Friction stir welding technique (FSW) has many advantages in terms of tool design, rotational speed and traveling speed, and can be adjusted in a precise manner. It enables heat input into the system to be controlled. In this study, Aluminum powders were compacted at 350,400 and 450 MPa pressure and sintered at 450 oC temperature for 30 minutes in Ar atmosphere. Sintered powder metal parts were joined to each other by FSW at the speed of 1800 rpm and traveling welding speed 200 mm/min under a constant friction force. The results show that the amount of porosity affects the weldability of powder metallurgy (P/M) parts. Furthermore, the porosity and microstructural evolution of the Aluminum also affected the hardness values of the tested materials.



Materials Science Forum (Volumes 534-536)

Edited by:

Duk Yong Yoon, Suk-Joong L. Kang, Kwang Yong Eun and Yong-Seog Kim




A. Kurt et al., "Effect of Porosity Content on the Weldability of Powder Metal Parts Produced by Friction Stir Welding", Materials Science Forum, Vols. 534-536, pp. 789-792, 2007

Online since:

January 2007




[1] Metals Handbook 9th Ed. Vol. 7, Powder Metallurgy, ASM, Ohio, USA, pp.23-99, (1984).

[2] Kurt, A., Gülenç,B., Durgutlu, A., Investigation of HAZ in Rolle-PM Cu Materials Joined by Fusion Welding Methods, 2. National Powder Metallurgy Conference Proceedings, p.565570, 1999. ( In Turkish).

[3] Kurt, A., Ates, H., Durgutlu, A., Karacıf, K., Exploring the weldability of Powder Metal Parts, Welding Journal, Dec. 2004; 34-37.

[4] www. twi. co. uk.

[5] Reynolds, A.P., Lockwood, W.D., Seidel, T.U., Processing-property correlation in friction stir welding, Mat. Sci. Forum 2000; 331-37: 1719-24.

DOI: https://doi.org/10.4028/www.scientific.net/msf.331-337.1719

[6] Peel, M., Steuwer, A., Preuss, M., Withers, P.J., Microstructure, mechanical properties and residual stresses as a function of welding speed in aluminium AA5083 friction stir welds, Acta Mater. 50 (2003).

DOI: https://doi.org/10.1016/s1359-6454(03)00319-7

[7] Sato, Y.S., Kurihara, Y., Park, S.H.C., Kokawa, H., Tsuji, N., Friction stir welding of ultrafine grained Al alloy 1100 produced by accumulative roll-bonding, Scripta Mater. 50 (2004) 57-60.

DOI: https://doi.org/10.1016/j.scriptamat.2003.09.037

[8] Schaffer, G.B., Hall, B.J., Bonner, S.J., Huo, S.H., Sercome, T.B., The effect of the atmsphere and the role of pore filling on the sintering of aluminium, Acta Mater. 54 (2006) 131-138.

[9] Ueji, R., Huang, X., Hansen, N., Tsuji, N., Minamino,Y., Quantitative analysis of structurestrength relation of commercial purity aluminium deformed by accumulative roll bonding and annealed at low temperature,. Mater. Sci. Forum 2003; 426-432: 405.

DOI: https://doi.org/10.4028/www.scientific.net/msf.426-432.405
