Thin Film Carbon Layers with Continously Changing Bonding Properties

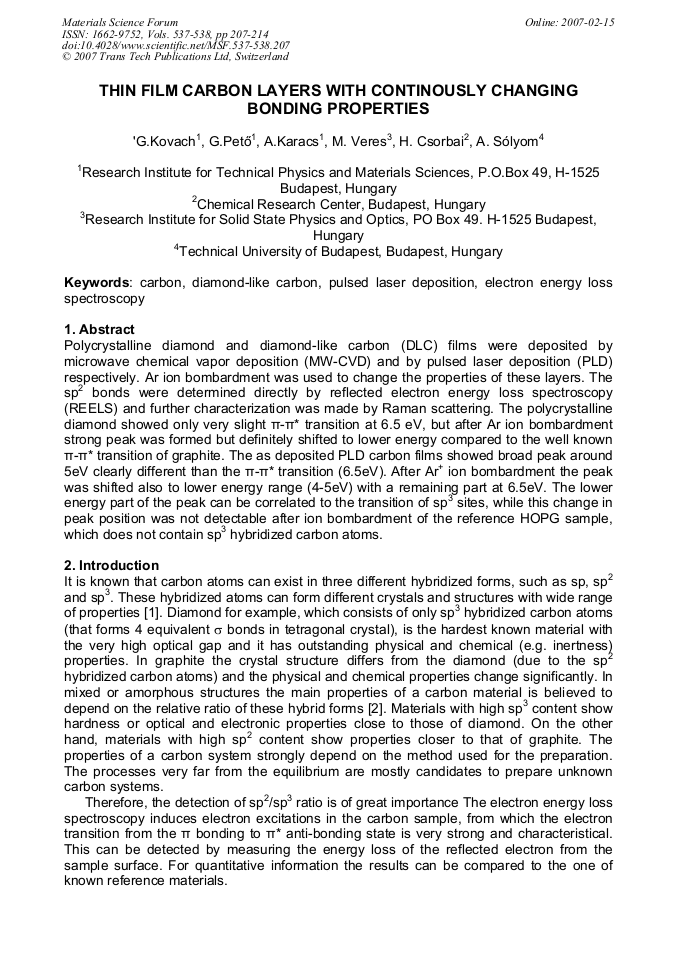

Article Preview

Polycrystalline diamond and diamond-like carbon (DLC) films were deposited by microwave chemical vapor deposition (MW-CVD) and by pulsed laser deposition (PLD) respectively. Ar ion bombardment was used to change the properties of these layers. The sp2 bonds were determined directly by reflected electron energy loss spectroscopy (REELS) and further characterization was made by Raman scattering. The polycrystalline diamond showed only very slight π-π* transition at 6.5 eV, but after Ar ion bombardment strong peak was formed but definitely shifted to lower energy compared to the well known π-π* transition of graphite. The as deposited PLD carbon films showed broad peak around 5eV clearly different than the π-π* transition (6.5eV). After Ar+ ion bombardment the peak was shifted also to lower energy range (4-5eV) with a remaining part at 6.5eV. The lower energy part of the peak can be correlated to the transition of sp3 sites, while this change in peak position was not detectable after ion bombardment of the reference HOPG sample, which does not contain sp3 hybridized carbon atoms.



Materials Science Forum (Volumes 537-538)

Edited by:

J. Gyulai and P.J. Szabó




G. Kovách et al., "Thin Film Carbon Layers with Continously Changing Bonding Properties", Materials Science Forum, Vols. 537-538, pp. 207-214, 2007

Online since:

February 2007




[1] J. Robertson, Mat. Sci. and Eng. R 37 (2002) 129-281.

[2] P. J. Fallon, V. S. Veerasamy, C. A. Davis, J. Robertson, G. A. J. Amaratunga, W. I. Milne, J. Koskinen Phys. Rev. B 48, 4777-4782 (1993) Phys. Rev. B 48, 4777 (1993).

DOI: 10.1103/physrevb.48.4777

[3] R.F. Egerton, Electron Energy-Loss Spectroscopy in the Electron Microscope (1986).

[4] D. Guerard and A. Herold, Carbon, 13, 337 (1975). [Inspec].

[5] A. A. Voevodin and M. S. Donley, Surface and Coatings Technology, Volume 82, Issue 3, August 1996, Pages 199-213.

[6] H. C. Ong and R. P. H. Chang: Phys. Rev. B Vol. 55 No. 19 (1996).

[7] D. L. Pappas, K. L. Saenger, J. Bruley, W. Krakow and J. J. Cuomo.

[8] G. Kovach, H. Csorbai, G.Z. Radnoczi, et al., Mat. Sci. Forum 414-4: 127-132, (2003).

[9] J. Yuan, L.M. Brown, Micron 31 (2000) 515.

[10] X S. Waidmann, M. Knupfer, B. Arnold, J. Fink A. Fleszar,W. Hanke. Phys Rev. B Vol. 61 No 15 10149-10153 (15 apr 2000-1) Properties of high-density amorphous carbon films deposited by laser ablation.

DOI: 10.1103/physrevb.61.10149

[11] A. Gali, A. Mészáros and P. Deák, Diamond & Rel. Mater. 5 613-616 (1996) J. Appl. Phys. 71, 5675 (1992) [ADS][ SPIN][ INSPEC].

[12] A.C. Ferrari, J. Robertson, Phys. Rev. B 63 121405 (2001).
