Changes of Subsurface Structure of Materials Developed during Sliding Friction

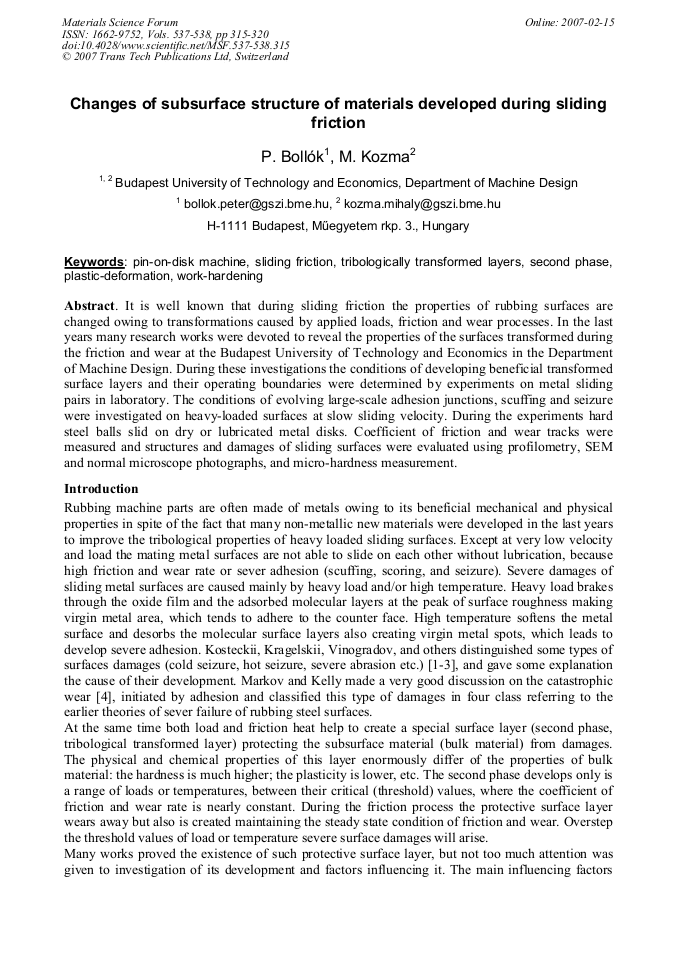

Article Preview

It is well known that during sliding friction the properties of rubbing surfaces are changed owing to transformations caused by applied loads, friction and wear processes. In the last years many research works were devoted to reveal the properties of the surfaces transformed during the friction and wear at the Budapest University of Technology and Economics in the Department of Machine Design. During these investigations the conditions of developing beneficial transformed surface layers and their operating boundaries were determined by experiments on metal sliding pairs in laboratory. The conditions of evolving large-scale adhesion junctions, scuffing and seizure were investigated on heavy-loaded surfaces at slow sliding velocity. During the experiments hard steel balls slid on dry or lubricated metal disks. Coefficient of friction and wear tracks were measured and structures and damages of sliding surfaces were evaluated using profilometry, SEM and normal microscope photographs, and micro-hardness measurement.



Materials Science Forum (Volumes 537-538)

Edited by:

J. Gyulai and P.J. Szabó




P. Bollók and M. Kozma, "Changes of Subsurface Structure of Materials Developed during Sliding Friction", Materials Science Forum, Vols. 537-538, pp. 315-320, 2007

Online since:

February 2007





[1] G. V. Vinogradov, U. J. Podolskii, N. V. Krepova,: Conditions and types of galling at friction of quenched steel in carbonic lubricants,; Mashinostroenie, N5, Moscow (1965), pp.109-114.

[2] B. I. Kostetskii: Wear resistance of materials,; Nauka, Moscow (1980).

[3] V. Kragelskii, N. M. Alekseev, L. E. Fisun,: On nature of seizure under dry and boundary friction,; Journal Friction and Wear 2 (1980), pp.197-208.

[4] D. Markov, D. Kelly: Establishment of a new class of wear: Adhesion initiated catastrophic wear,; 2 nd World Congress on Tribology, Vienna (2001), Papers on CD.

[5] M. Kozma, P. Bollók: Tribological investigation of ball-plane sliding pairs,; Proceedings of Second Conference on Mechanical Engineering, Budapest (2000), pp.144-148.

[6] M. Kozma, P. Bollók: Súrlódó felületek károsodásának okai,; Gépgyártástechnológia XLI, 7-8 (2001), pp.25-28.

[7] M. Kozma, P. Bollók: Research of contact pairs on pin-on-disk tribometer,; Proceedings of Third Conference on Mechanical Engineering, Budapest (2002), pp.644-648.

[8] M. Kozma, P. Bollók: Investigation of seizure and scuffing of machine parts,; Proceedings of 5 th International multidisciplinary conference, Baia Mare, Romania (2003).

[9] M. Kozma, P. Bollók: Changes of dry and lubricated metal surfaces during sliding friction,; Proceedings of 14 th International Colloquium Tribology, Stuttgart/Ostfildern, Germany (2004), pp.1667-1672.
