The Sodium Transport in Polycrystalline Alumina

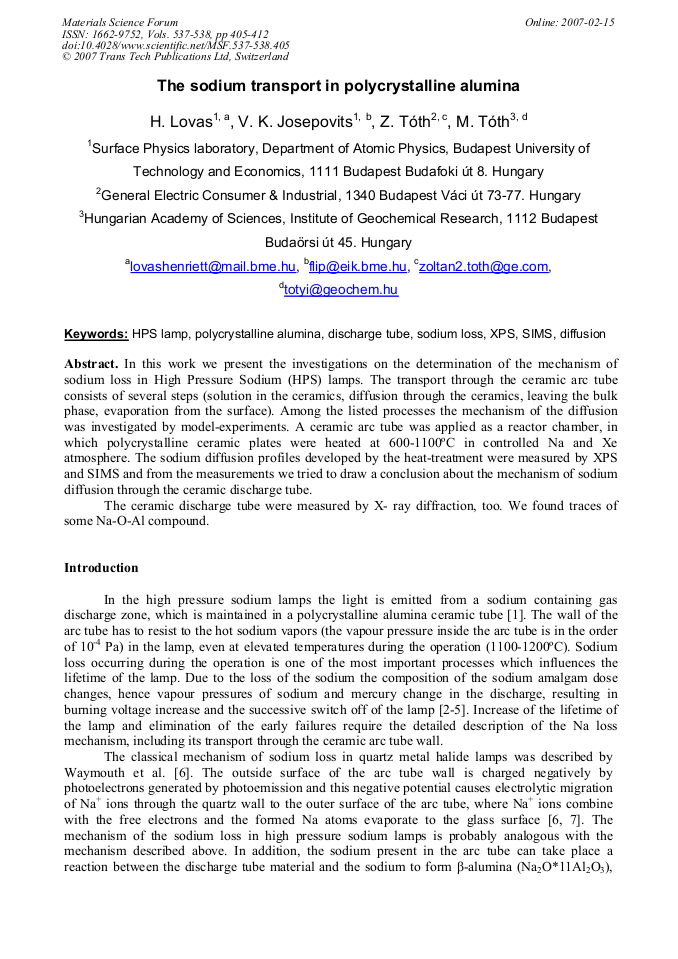

Article Preview

In this work we present the investigations on the determination of the mechanism of sodium loss in High Pressure Sodium (HPS) lamps. The transport through the ceramic arc tube consists of several steps (solution in the ceramics, diffusion through the ceramics, leaving the bulk phase, evaporation from the surface). Among the listed processes the mechanism of the diffusion was investigated by model-experiments. A ceramic arc tube was applied as a reactor chamber, in which polycrystalline ceramic plates were heated at 600-1100°C in controlled Na and Xe atmosphere. The sodium diffusion profiles developed by the heat-treatment were measured by XPS and SIMS and from the measurements we tried to draw a conclusion about the mechanism of sodium diffusion through the ceramic discharge tube. The ceramic discharge tube were measured by X- ray diffraction, too. We found traces of some Na-O-Al compound.



Materials Science Forum (Volumes 537-538)

Edited by:

J. Gyulai and P.J. Szabó




H. Lovas et al., "The Sodium Transport in Polycrystalline Alumina", Materials Science Forum, Vols. 537-538, pp. 405-412, 2007

Online since:

February 2007




[1] J. De Groot, J. Van Vliet: The high pressure sodium lamp (Philips Technical Library, Deventer 1986).

[2] P. Ingalls, R. Dolan, J. Plumb, H. Zhu, and E. Wyner: Noncycling High Pressure Sodium Lamp (Iesna Annual Conference 1994. ).

[3] G. De With, P. J. Vrugt, A. J. C. Van De Ven: J. Mater. Sci. Vol. 20 (1985), pp.1215-1221.

[4] M.A. Ryan, R.M. Williams, C.E. Allewato, C.B. Vining, C.K. Lowe-Ma and S.B. Robie: J. Phys. Chem. Solids Vol. 55 (1994), pp.1255-1260.

[5] K. L. Lutra: J. Electrochem. Soc.: Solid-state science and technology, Vol. 134 (1987), pp.229-235.

[6] J.F. Waymouth, F. Koury, W.C. Gungle and C. Peterson: Illum. Eng. 62 (1967), pp.214-220.

[7] W. van Erk, J. Tu and J. Siujker: LS 10 Conference paper (2004), pp.247-248.

[8] C. Hirayama, K. F. Andrew, R. L. Kleinosky: Thermochemica Acta Vol. 45 (1981), p.23.

[9] K. Weinmüller: Technisch-wissenschaftliche Abhandlungen der Osram Gesellschaft (Springer Verlag, Berlin-Heidelberg-New York-Tokyo), Vol. 12 (1986), pp.105-112.


[10] G. C. Wei, A. Hecker and D. A. Goodman: Journal of the American Ceramic Society, Vol. 84 (2001), pp.1-23.

[11] Dr. Giber János, Dr. Gyulai József, Vargáné Dr. Josepovits Katalin, Dr. Bíró László Péter: ( Diffúzió és implantáció szilárdtestekben, (Diffusion and implantation in solids, in Hungarian), Műegyetemi Kiadó, Budapest (1997).

[12] Jean Philibert: Atom movements diffusion and mass transport in solids, Les Éditions de Physique (1991).
