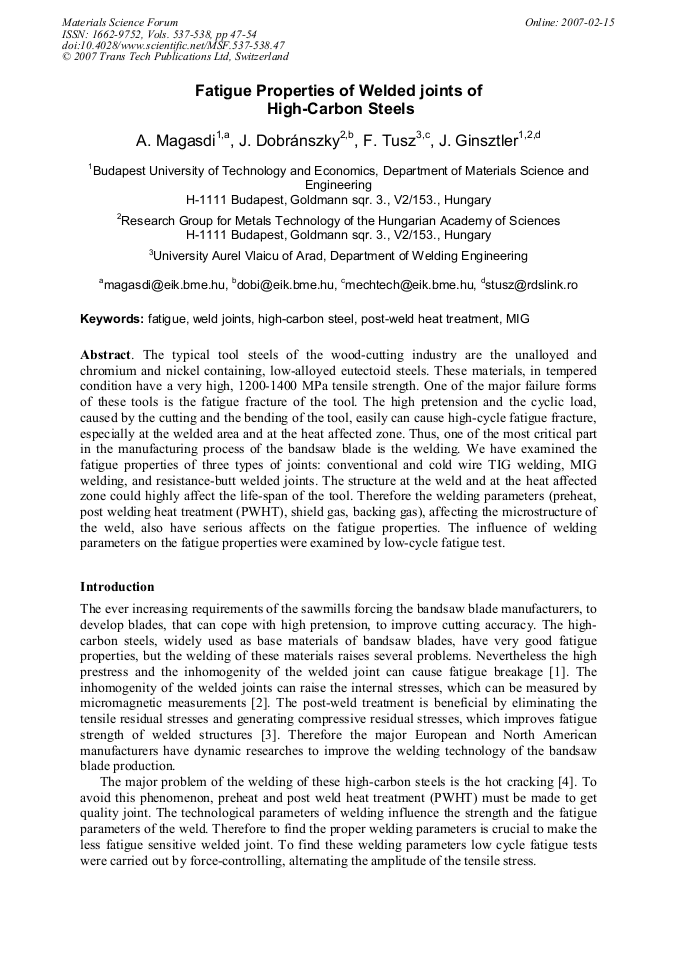

Fatigue Properties of Welded Joints of High-Carbon Steels

Abstract:

Article Preview

The typical tool steels of the wood-cutting industry are the unalloyed and chromium and nickel containing, low-alloyed eutectoid steels. These materials, in tempered condition have a very high, 1200-1400 MPa tensile strength. One of the major failure forms of these tools is the fatigue fracture of the tool. The high pretension and the cyclic load, caused by the cutting and the bending of the tool, easily can cause high-cycle fatigue fracture, especially at the welded area and at the heat affected zone. Thus, one of the most critical part in the manufacturing process of the bandsaw blade is the welding. We have examined the fatigue properties of three types of joints: conventional and cold wire TIG welding, MIG welding, and resistance-butt welded joints. The structure at the weld and at the heat affected zone could highly affect the life-span of the tool. Therefore the welding parameters (preheat, post welding heat treatment (PWHT), shield gas, backing gas), affecting the microstructure of the weld, also have serious affects on the fatigue properties. The influence of welding parameters on the fatigue properties were examined by low-cycle fatigue test.

Info:

Periodical:

Materials Science Forum (Volumes 537-538)

Edited by:

J. Gyulai and P.J. Szabó

Pages:

47-54

DOI:

10.4028/www.scientific.net/MSF.537-538.47

Citation:

A. Magasdi et al., "Fatigue Properties of Welded Joints of High-Carbon Steels ", Materials Science Forum, Vols. 537-538, pp. 47-54, 2007

Online since:

February 2007

Export:

Price:

$38.00

[1] S. Suresh: Fatigue of Materials. Cambridge University Press, (1998), pp.297-302.

[2] I. Mészáros: Micromagnetic Measurements and Their Applications. Materials Science Forum Vols. 414-415 (2003), pp.275-280.

DOI: 10.4028/www.scientific.net/msf.414-415.275

[3] X. Cheng, J. W. Fisher, H. J. Prask et al. : Residual stress modification by post-weld treatment and its beneficial effect on fatigue strength of welded structures. Int. J. of Fatigue, 25 (2003), pp.1259-1269.

DOI: 10.1016/j.ijfatigue.2003.08.020

[4] T. Mohandas, G. Madhusudan Reddy, B. Satish Kumar: Heat affected zone softening in high-strength low-alloy steels. Journal of Materials Processing Technology, 88 (1999), pp.284-294.

DOI: 10.1016/s0924-0136(98)00404-x

[5] J. Onoro, C. Ranninger: Fatigue behaviour of laser welds of high-strength low-alloy steels. Journal of Materials Processing Technology, 68 (1997), pp.68-70.

DOI: 10.1016/s0924-0136(96)02541-1

[6] J. Prohászka: Mechanical properties of metals and alloys (in Hungarian), Mőegyetemi Kiadó, (2001), pp.233-236.

[7] T. Berecz, P. J. Szabó: Study of the Isothermal Phase Transformations in Duplex Stainless Steels by EBSD Method, Mat. Sci. Forum, 473-474 (2005), pp.177-182.

DOI: 10.4028/www.scientific.net/msf.473-474.177
