Simulation of 3-Dimensional Cell Population Growth Processes in Polyhedral Cellular Systems

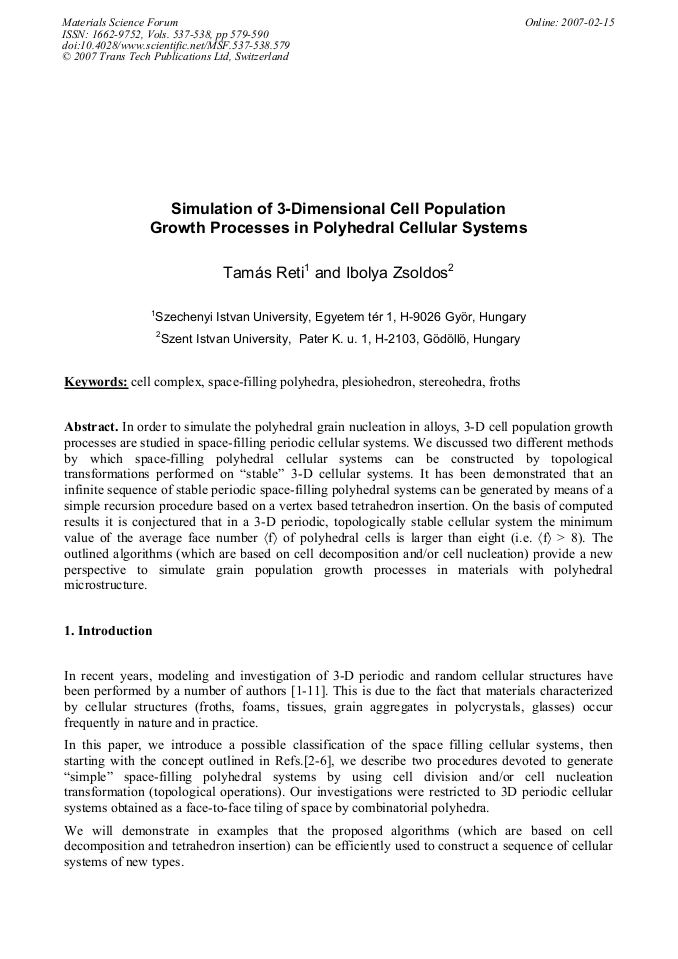

Article Preview

In order to simulate the polyhedral grain nucleation in alloys, 3-D cell population growth processes are studied in space-filling periodic cellular systems. We discussed two different methods by which space-filling polyhedral cellular systems can be constructed by topological transformations performed on “stable” 3-D cellular systems. It has been demonstrated that an infinite sequence of stable periodic space-filling polyhedral systems can be generated by means of a simple recursion procedure based on a vertex based tetrahedron insertion. On the basis of computed results it is conjectured that in a 3-D periodic, topologically stable cellular system the minimum value of the average face number 〈f〉 of polyhedral cells is larger than eight (i.e. 〈f〉 > 8). The outlined algorithms (which are based on cell decomposition and/or cell nucleation) provide a new perspective to simulate grain population growth processes in materials with polyhedral microstructure.



Materials Science Forum (Volumes 537-538)

Edited by:

J. Gyulai and P.J. Szabó




T. Réti and I. Zsoldos, "Simulation of 3-Dimensional Cell Population Growth Processes in Polyhedral Cellular Systems ", Materials Science Forum, Vols. 537-538, pp. 579-590, 2007

Online since:

February 2007
