High Elasticity Strain Gauge Made from Conductive Silicone Rubber

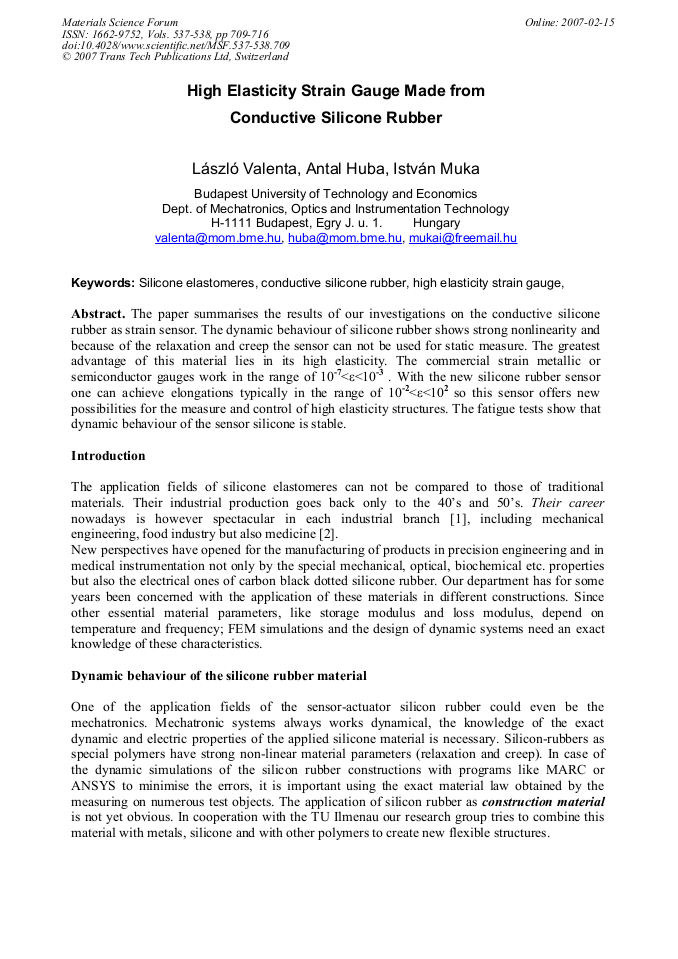

Article Preview

The paper summarises the results of our investigations on the conductive silicone rubber as strain sensor. The dynamic behaviour of silicone rubber shows strong nonlinearity and because of the relaxation and creep the sensor can not be used for static measure. The greatest advantage of this material lies in its high elasticity. The commercial strain metallic or semiconductor gauges work in the range of 10-7<ε<10-3 . With the new silicone rubber sensor one can achieve elongations typically in the range of 10-2<ε<102 so this sensor offers new possibilities for the measure and control of high elasticity structures. The fatigue tests show that dynamic behaviour of the sensor silicone is stable.



Materials Science Forum (Volumes 537-538)

Edited by:

J. Gyulai and P.J. Szabó




L. Valenta et al., "High Elasticity Strain Gauge Made from Conductive Silicone Rubber", Materials Science Forum, Vols. 537-538, pp. 709-716, 2007

Online since:

February 2007




[1] Tomanek, A.: Silicone & Technik, Hanser Verl. (1990).

[2] Huba, A., Valenta, L., Molnár, L.,: Silicone-Elastomers, Its Properties, and their Applications in Precision Engineering and in Medicine Conf. Gépészet 2000, Budapest.

[3] Huba, A., Molnár, L.,: Dynamical Models of Silicone Rubbers Based on the Synthesis Method Materials Science, Testing and Informatics, 2002. PP 95 - 100. Trans Tech. Publications Uetikon/Zürich.

[4] Molnár, L., Huba, A., Linear Lumped Models of Silicon Elastomers Conf. Gépészet, 2002. Budapest, PP224-228.

[5] , , Accepted Hungarian and EPC patents.

[6] Sichel, E. K.: Carbon black-polymer composites: The physics of electrically conducting composites. Dekker, New York, 1982. PP79-101, 135-161.

[7] Halmai, A., Halas, J., Valenta, L.: Technical Realisation of a Snail Like Movement. 47. Internationales Wissenschaftliches Kolloquium, TU Ilmenau, (2002).
