Effect of Laser Surface Treatment on Microstructure and Properties of MRI 230D Mg Alloy

Abstract:

Article Preview

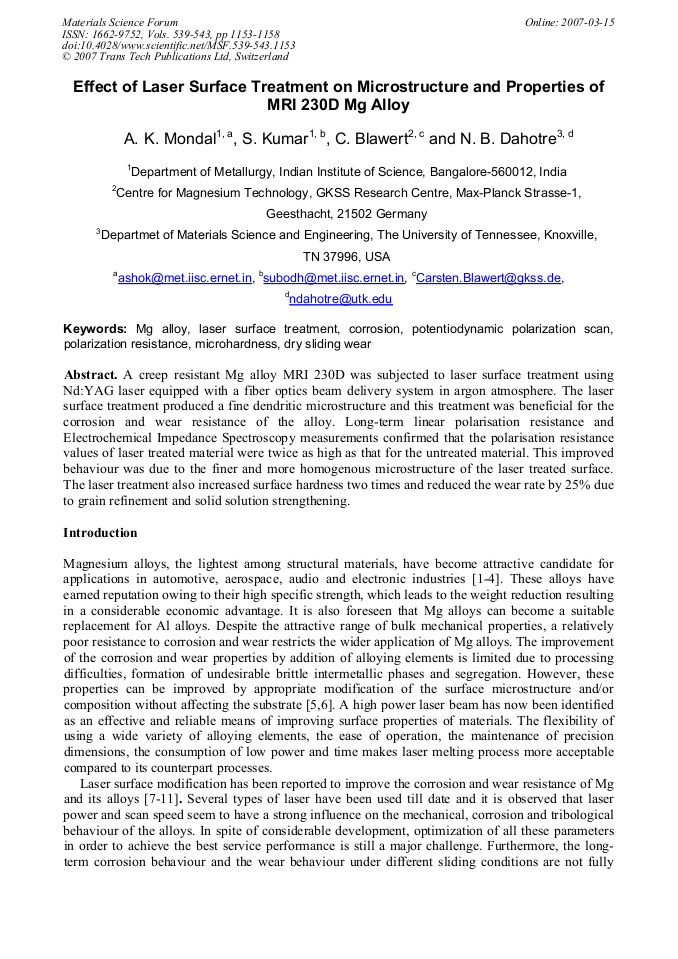

A creep resistant Mg alloy MRI 230D was subjected to laser surface treatment using Nd:YAG laser equipped with a fiber optics beam delivery system in argon atmosphere. The laser surface treatment produced a fine dendritic microstructure and this treatment was beneficial for the corrosion and wear resistance of the alloy. Long-term linear polarisation resistance and Electrochemical Impedance Spectroscopy measurements confirmed that the polarisation resistance values of laser treated material were twice as high as that for the untreated material. This improved behaviour was due to the finer and more homogenous microstructure of the laser treated surface. The laser treatment also increased surface hardness two times and reduced the wear rate by 25% due to grain refinement and solid solution strengthening.

Info:

Periodical:

Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran

Pages:

1153-1158

Citation:

A.K. Mondal et al., "Effect of Laser Surface Treatment on Microstructure and Properties of MRI 230D Mg Alloy", Materials Science Forum, Vols. 539-543, pp. 1153-1158, 2007

Online since:

March 2007

Export:

Price:

$38.00

[1] G.V. Raynor: The Physical Metallurgy of Magnesium and its alloys, Pergamon Press, London (1959).

[2] R.W. Cahn, P. Haasan, E.J. Kramer (Ed. ): Mater. Sci. Tech. 8, VCH-Verlagsgesellschaft, Weinheim, (1996).

[3] H. Baker: Adv. Mater. Processes (1989), p.35.

[4] G.B. Evans: Application of magnesium in aerospace, Magnesium Tech. Inst. Met. (1986), p.103.

[5] M.G. Fontana (Ed. ): Corrosion Engineering, McGraw-Hill, New York (1987), p.71.

[6] ASM failure, analysis and prevention, in: Metals Handbook, vol. 11, ASM, Metals Park, OH (1986), p.155.

[7] R. Subramanian, S. Sircar and J. Mazumder: J. Mater. Sci. Vol. 26 (1991), p.951.

[8] T.Z. Kattamis, in: Lasers in Metallurgy, edited by K. Mukherjee and J. Mazumder, The Metals Society of AIME, Warrendale, PA (1981), p.1.

[9] R.K. Kalimullin, V.V. Valuev and A.T. Berdnikov: Met. Sci. Heat Treat. Vol. 28 (1986), p.668.

[10] C.F. Chang, S.K. Das, D. Raybould, in: Rapidly Solidified Materials, edited by P.W. Lee and R.S. Carbonara, ASM, Metals Park, Ohio (1986), p.129.

[11] C.F. Chang, S.K. Das, D. Raybould and A. Brown: Met. Powder Rep. Vol. 41 (1986), p.302.

[12] E. Aghion, B. Bronfin, D. Eliezer, F. Von Buch, S. Schumann and H. Friedrich: Mater. Sci. Forum Vol. 419-422 (2003), p.407.

DOI: https://doi.org/10.4028/www.scientific.net/msf.419-422.407

Fetching data from Crossref.
This may take some time to load.
