Multifunctional Ti-Si-B-C-N Tribological Nanocomposite Coatings for Aerospace Applications


Article Preview

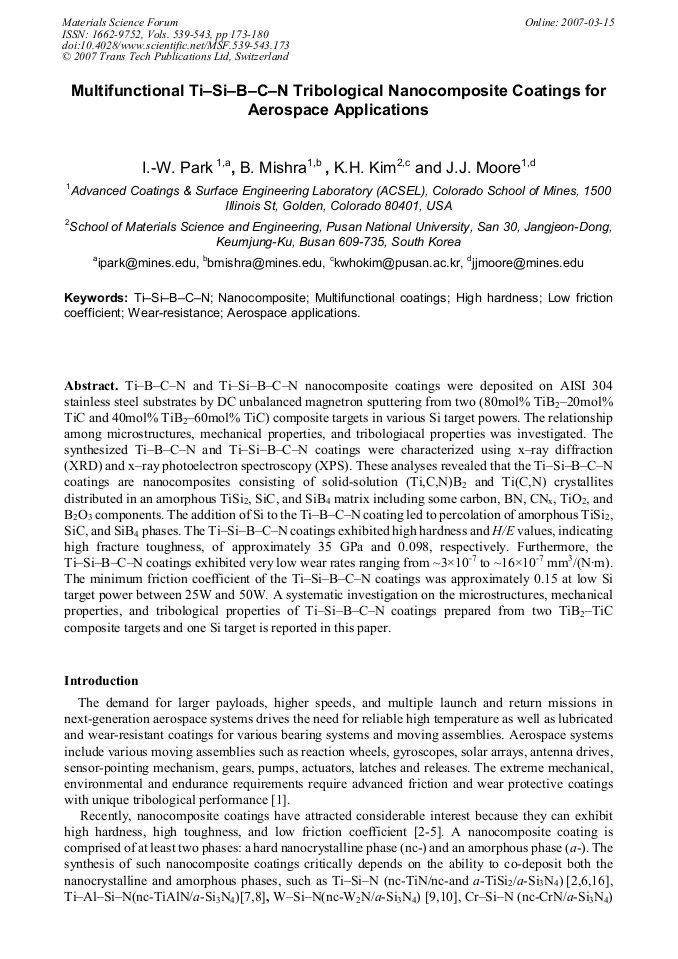

Ti–B–C–N and Ti–Si–B–C–N nanocomposite coatings were deposited on AISI 304 stainless steel substrates by DC unbalanced magnetron sputtering from two (80mol% TiB2–20mol% TiC and 40mol% TiB2–60mol% TiC) composite targets in various Si target powers. The relationship among microstructures, mechanical properties, and tribologiacal properties was investigated. The synthesized Ti–B–C–N and Ti–Si–B–C–N coatings were characterized using x–ray diffraction (XRD) and x–ray photoelectron spectroscopy (XPS). These analyses revealed that the Ti–Si–B–C–N coatings are nanocomposites consisting of solid-solution (Ti,C,N)B2 and Ti(C,N) crystallites distributed in an amorphous TiSi2, SiC, and SiB4 matrix including some carbon, BN, CNx, TiO2, and B2O3 components. The addition of Si to the Ti–B–C–N coating led to percolation of amorphous TiSi2, SiC, and SiB4 phases. The Ti–Si–B–C–N coatings exhibited high hardness and H/E values, indicating high fracture toughness, of approximately 35 GPa and 0.098, respectively. Furthermore, the Ti–Si–B–C–N coatings exhibited very low wear rates ranging from ~3×10-7 to ~16×10-7 mm3/(N·m). The minimum friction coefficient of the Ti–Si–B–C–N coatings was approximately 0.15 at low Si target power between 25W and 50W. A systematic investigation on the microstructures, mechanical properties, and tribological properties of Ti–Si–B–C–N coatings prepared from two TiB2–TiC composite targets and one Si target is reported in this paper.



Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran




I. W. Park et al., "Multifunctional Ti-Si-B-C-N Tribological Nanocomposite Coatings for Aerospace Applications", Materials Science Forum, Vols. 539-543, pp. 173-180, 2007

Online since:

March 2007




[1] A.A. Voevodin, J.P. O'Neill and J.S. Zabinski: Surf. Coat. Technol. Vol. 116 (1999), p.36.

[2] S. Veprek and S. Reiprich: Thin Solid Films Vol. 268 (1995), p.64.

[3] A.A. Voevodin, S.V. Prasad, and J. S. Zabinski: J. Appl. Phys. Vol. 82 (1997), p.855.

[4] J.J. Moore, D.L. Olson, E.A. Levashov, V.I. Kosayanin and L.M. Krukova: Surf. Coat. Technol. Vol. 92 (1997), p.34.

[5] I. -W. Park, S.R. Choi, J.H. Suh, C. -G. Park and K.H. Kim: Thin Solid Coatings Vol. 447 (2004), p.443.

[6] S. Veprek: J. Vac. Sci. Technol. A Vol. 17(5) (1999), p.2401.

[7] I. -W. Park, S.R. Choi, M. -H. Lee and K.H. Kim: J. Vac. Sci. Technol. A Vol. 21(4) (2003), p.895.

[8] E. Ribeiro, A. Malczyk, S. Carvalho, L. Rebouta, J.V. Fernandes, E. Alves and A.S. Miranda: Surf. Coat. Technol. Vol. 151 (2002), p.515.

[9] S. Veprek, M. Haussmann and S. Reiprich: J. Vac. Sci. Technol. A Vol. 14 (1996), p.46.

[10] A. Cavaleiro and C. Louro: Vacuum Vol. 64 (2002), p.211.

[11] E. Martinez, R. Sanjinés, A. Karimi, J. Esteve and F. Lévy: Surf. Coat. Technol. Vol. 180 (2004), p.570.

[12] I. -W. Park, K.H. Kim, A.O. Kunrath, D. Zhong, J.J. Moore, A.A. Voevodin and E.A. Levashov: J. Vac. Sci. Technol. B Vol. 23 (2005), p.588.

[13] A.A. Voevodin, J.P. O'Neill and J.S. Zabinski: J. Vac. Sci. Technol. Vol. 17 (1999), p.986.

[14] A.A. Voevodin and J.S. Zabinski: Compo. Sci. Technol. Vol. 65 (2005), p.741.

[15] E.A. Levashov, V.I. Kosayanin, L.M. Krukova, J.J. Moore and D.L. Olson: Surf. Coat. Technol. Vol. 92 (1997), p.34.

[16] S. Veprek, A. Niederhofer, K. Moto, T. Bolom, H. -D. Mannling, P. Nesladek, G. Dollinger and A. Bergmaier: Surf. Coat. Technol., Vol. 133 (2000), p.152.


[17] J. Patscheider, T. Zehnder and M. Diserens: Surf. Coat. Technol. Vol. 201 (2001), p.146.

[18] B.R. Lawn, A.G. Evans and D.B. Marshall: J. Am. Ceram. Soc. Vol. 63 (1980), p.574.

[19] G.M. Pharr: Mater. Sci. Eng. A Vol. 253 (1998), p.151.

[20] A. Leyland and A. Matthews: Wear Vol. 246 (2000), p.1.

[21] S. Wilson and A.T. Alpas: Wear Vol. 245 (2000), p.223.

[22] S.H. Kim, J.W. Jang, S.S. Kang and K.H. Kim: J. Mater. Proc. Technol. Vol. 130 (2002), p.283.

[23] J. Xu and K. Kato: Wear Vol. 245 (2000), p.61.
