Hydrogenation and Degradation Behaviors of Mg-Ni Alloys

Abstract:

Article Preview

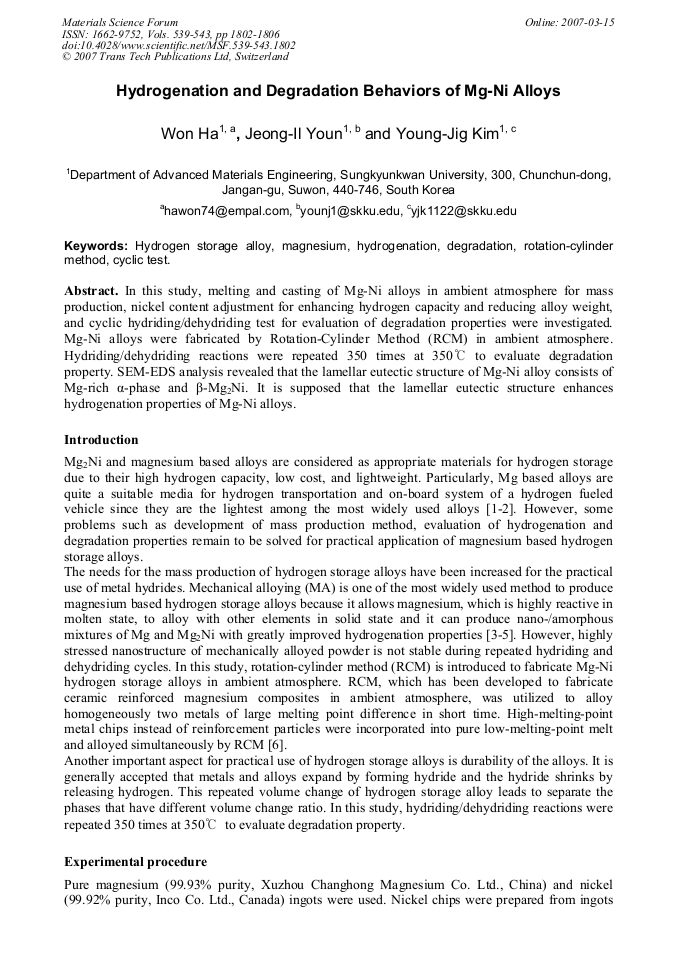

In this study, melting and casting of Mg-Ni alloys in ambient atmosphere for mass production, nickel content adjustment for enhancing hydrogen capacity and reducing alloy weight, and cyclic hydriding/dehydriding test for evaluation of degradation properties were investigated. Mg-Ni alloys were fabricated by Rotation-Cylinder Method (RCM) in ambient atmosphere. Hydriding/dehydriding reactions were repeated 350 times at 350°C to evaluate degradation property. SEM-EDS analysis revealed that the lamellar eutectic structure of Mg-Ni alloy consists of Mg-rich α-phase and β-Mg2Ni. It is supposed that the lamellar eutectic structure enhances hydrogenation properties of Mg-Ni alloys.

Info:

Periodical:

Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran

Pages:

1802-1806

Citation:

W. Ha et al., "Hydrogenation and Degradation Behaviors of Mg-Ni Alloys", Materials Science Forum, Vols. 539-543, pp. 1802-1806, 2007

Online since:

March 2007

Export:

Price:

$38.00

[1] Dj.M. Maric, P.F. Meier and S.K. Estreicher: Mater. Sci. Forum Vol. 83-87 (1992), p.119.

[2] M.A. Green: High Efficiency Silicon Solar Cells (Trans Tech Publications, Switzerland 1987).

[1] E. F. Emley: Principles of Magnesium Technology (Pergamon Press, Oxford 1966).

[2] L. Schlapbach: Hydrogen in Intermetallic Compounds I (Springer-Verlag, Berlin 1978).

[3] L. Zaluski, A. Zaluska, J. O. Ström-Olsen: J Alloy Compd. Vol. 217 (1995), p.245.

[4] T. W. Hong, Y. J. Kim: J Alloy Compd. Vol. 330-332 (2002), p.584.

[5] C. X. Shang, M. Bououdina, Y. Song, Z. X. Guo: Int J Hydrogen Energy Vol. 29 (2004), p.73.

[6] T. W. Hong, Y. J. Kim: J Alloy Compd. Vol. 333 (2002), p. L1.

[7] J. J. Reilly, R. H. Wiswall: Jr. Inorg. Chem. Vol. 7 (1968), p.2254.

Fetching data from Crossref.
This may take some time to load.
