A New Challenge of Polymer Thermoelectric Materials as Ecomaterials

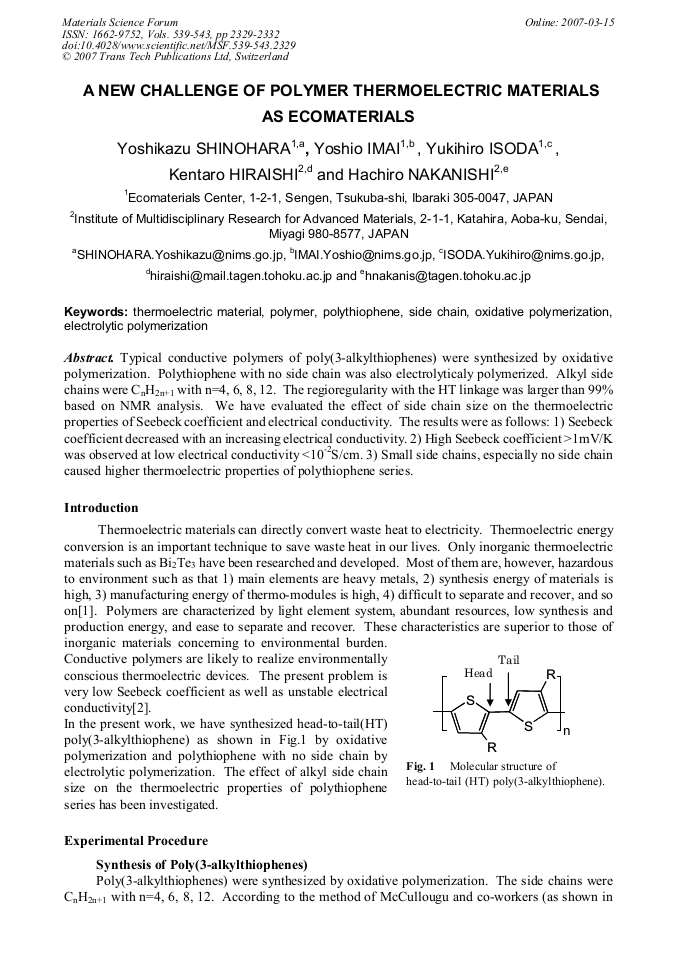

Article Preview

Typical conductive polymers of poly(3-alkylthiophenes) were synthesized by oxidative polymerization. Polythiophene with no side chain was also electrolyticaly polymerized. Alkyl side chains were CnH2n+1 with n=4, 6, 8, 12. The regioregularity with the HT linkage was larger than 99% based on NMR analysis. We have evaluated the effect of side chain size on the thermoelectric properties of Seebeck coefficient and electrical conductivity. The results were as follows: 1) Seebeck coefficient decreased with an increasing electrical conductivity. 2) High Seebeck coefficient >1mV/K was observed at low electrical conductivity <10-2S/cm. 3) Small side chains, especially no side chain caused higher thermoelectric properties of polythiophene series.



Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran




Y. Shinohara et al., "A New Challenge of Polymer Thermoelectric Materials as Ecomaterials", Materials Science Forum, Vols. 539-543, pp. 2329-2332, 2007

Online since:

March 2007




[1] Y. Shinohara K. Ohara, Y. Imai, Y. Isoda and H. Nakanishi. Trans. MRS-J, 29, 5, 1921-1924 (2003).

[2] Y. Shinohara, K. Hiraishi, H. Nakanishi, Y. Imai, Y. Isoda, Proc. 23 nd International Conference on Thermoelectrics, CD-ROM, (2005).

[3] D. Moses, A. Denestein, J. Chen and A.J. Heeger, Phys. Rev. B, 25, 7652-7660 (1982).

[4] Y.W. Part, Y.S. Lee and C. Park, Solid State Commun., 63, 1063-1068 (1987). 5� m 5� m a) b) Fig. 6 SEM images of the surfaces of polythiophene films of electrical conductivity of 0. 02(a) and 29Scm-1(b) Fig. 5.
