Experimental and Numerical Investigation of Texture Development during Hot Rolling of Magnesium Alloy AZ31

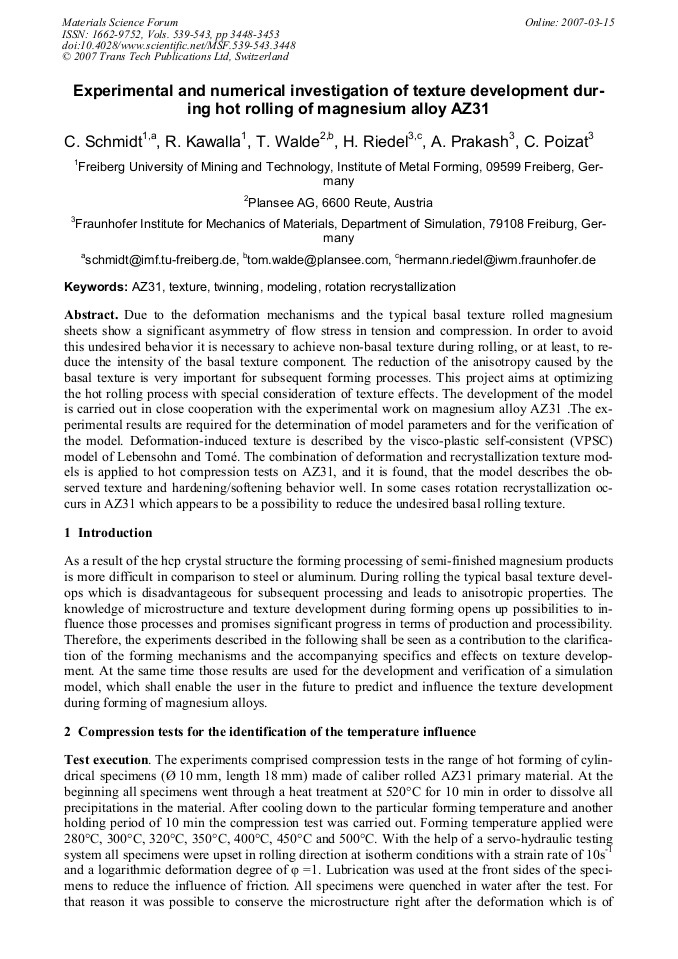

Article Preview

Due to the deformation mechanisms and the typical basal texture rolled magnesium sheets show a significant asymmetry of flow stress in tension and compression. In order to avoid this undesired behavior it is necessary to achieve non-basal texture during rolling, or at least, to reduce the intensity of the basal texture component. The reduction of the anisotropy caused by the basal texture is very important for subsequent forming processes. This project aims at optimizing the hot rolling process with special consideration of texture effects. The development of the model is carried out in close cooperation with the experimental work on magnesium alloy AZ31 .The experimental results are required for the determination of model parameters and for the verification of the model. Deformation-induced texture is described by the visco-plastic self-consistent (VPSC) model of Lebensohn and Tomé. The combination of deformation and recrystallization texture models is applied to hot compression tests on AZ31, and it is found, that the model describes the observed texture and hardening/softening behavior well. In some cases rotation recrystallization occurs in AZ31 which appears to be a possibility to reduce the undesired basal rolling texture.



Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran




C. Schmidt et al., "Experimental and Numerical Investigation of Texture Development during Hot Rolling of Magnesium Alloy AZ31", Materials Science Forum, Vols. 539-543, pp. 3448-3453, 2007

Online since:

March 2007




[1] R. Kawalla, A. Stolnikov: Advanced Engineering Materials 6 (2004), pp.525-529.

[2] S.R. Agnew, M.H. Yoo, C.N. Tomé: Acta mater. 49 (2001), pp.4277-4289.

[3] A. Beck: Magnesium und seine Legierungen. Springer, Berlin, (1939).

[4] U.F. Kocks, C.N. Tomé; H. -R. Wenk: Texture and Anisotropy, Cambridge University Press, Cambridge, (1998).

[5] A. Molinari, G.R. Canova, S. Ahzi: Acta metall. 12 (1987), pp.2983-2994.

[6] R.A. Lebensohn and C.N. Tomé: Acta Metall. Mater. 41 (1993), pp.2611-2624.

[7] T. Walde: Dissertation at the Karlsruhe University, Dec. 2004, (carried out at FraunhoferIWM).

[8] T. Walde, H. Riedel: Materials Science Forum 426-432 (2003) pp.3679-3684.

[9] T. Walde, H. Riedel: Solid State Phenomena 105 (2005), pp.285-290.

[10] C.N. Tomé, R.A. Lebensohn, U.F. Kocks: Acta metall. mater. 39 (1991), pp.2667-2680.

[11] J.F. Humphreys, M. Hatherly: Recrystallization and related annealing phenomena, Elsevier, Oxford (1995).

[12] M.T. Pérez-Prado, O.A. Ruano: Scripta materialia 46 (2002), pp.149-155.

[13] H. -R. Wenk, G. Canova, Y. Brechet, L. Flandin: Acta mater. 45 (1997), pp.3283-3296.

[14] R.A. Lebensohn, H. -R. Wenk, C.N. Tomé: Acta mater. 46 (1998), pp.2683-2693.

[15] S.E. Ion, F.J. Humphreys, S.H. White: Acta metall. 30 (1982), p.1909-(1919).

[16] J.A. del Valle, M.T. Pérez-Prado, O.A. Ruano: Material Science and Engineering A355 (2003), pp.68-78.
