Beta Phase Decomposition in a TiAl Alloy during Continuous Cooling

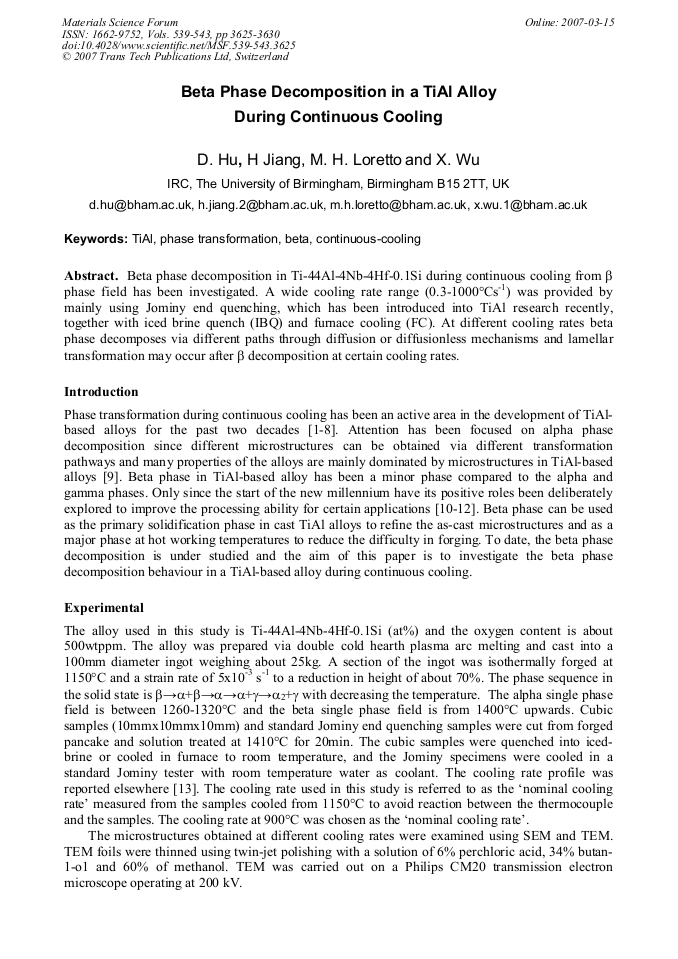

Article Preview

Beta phase decomposition in Ti-44Al-4Nb-4Hf-0.1Si during continuous cooling from β phase field has been investigated. A wide cooling rate range (0.3-1000°Cs-1) was provided by mainly using Jominy end quenching, which has been introduced into TiAl research recently, together with iced brine quench (IBQ) and furnace cooling (FC). At different cooling rates beta phase decomposes via different paths through diffusion or diffusionless mechanisms and lamellar transformation may occur after β decomposition at certain cooling rates.



Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran




D. Hu et al., "Beta Phase Decomposition in a TiAl Alloy during Continuous Cooling", Materials Science Forum, Vols. 539-543, pp. 3625-3630, 2007

Online since:

March 2007




[1] S. A. Jones and M. J. Kaufman: Acta Metall. Mater. Vol. 41 (1993), p.387.

[2] M. Takeyama, T. Kumagai, M. Nakamura and M. Kikuchi: Structural Intermetallics (TMS, Warrendale, PA 1993), p.167.

[3] M. Krishnan, B. Natarajan, V. K. Vasudevan and D. M. Dimiduk: Structural Intermetallics 1997. (TMS Warrendale, PA 1997), p.235.

[4] D. Veeraraghavan D and V. K. Vasudevan: Gamma titanium aluminides (TMS, Warrendale, PA 1995), p.157.

[5] D. Hu D, P. A. Blenkinsop and M. H. Loretto: Titanium'99 (CRISM, St Petersburg 2000), p.290.

[6] D. Veeraraghavan, P. Wang, U. Pilchowski and V.K. Vasudevan: Proceedings of the International Conference on Solid-Solid Phase Transformations'99 (JIMIC-3) (JIM, Tokyo 1999), p.149.

[7] D. M. Dimiduk and V. K. Vasudevan: Gamma Titanium Aluminides 1999 (TMS, Warrendale, PA 1999), p.239.

[8] D. Hu D and R. R. Botten: Intermetallics Vol. 10 (2002), p.701.

[9] Y-W. Kim and D. M. Dimiduk: JOM Vol. 43 (1991), p.8.

[10] T. Tetsi, K. Shindo, S. Kobayashi and M. Takeyama: Intermetallics Vol. 11 (2003), p.299.

[11] T. Tetsi, K. Shindo, S. Kaji, S. Kobayashi S and M. Takeyama: Intermetallics Vol. 13 (2005), p.971.

[12] M. Takayama and S. Kobayashi. Intermetallics Vol. 13 (2005), p.993.

[13] D. Hu, A. J. Huang, A, Gregoire, X.Y. Li, X. Wu and M.H. Loretto: Proceedings of the 3rd International Conference on Advanced Materials Processing: (Institute of Materials Engineering Australia Ltd, Melbourne 2004), p.172.

[14] T. T. Cheng and M.H. Loretto: Acta Mater. Vol. 46 (1998), p.4801.
