On the Nature of the Growth of Bainitic α plates in Metastable β Ti Alloys

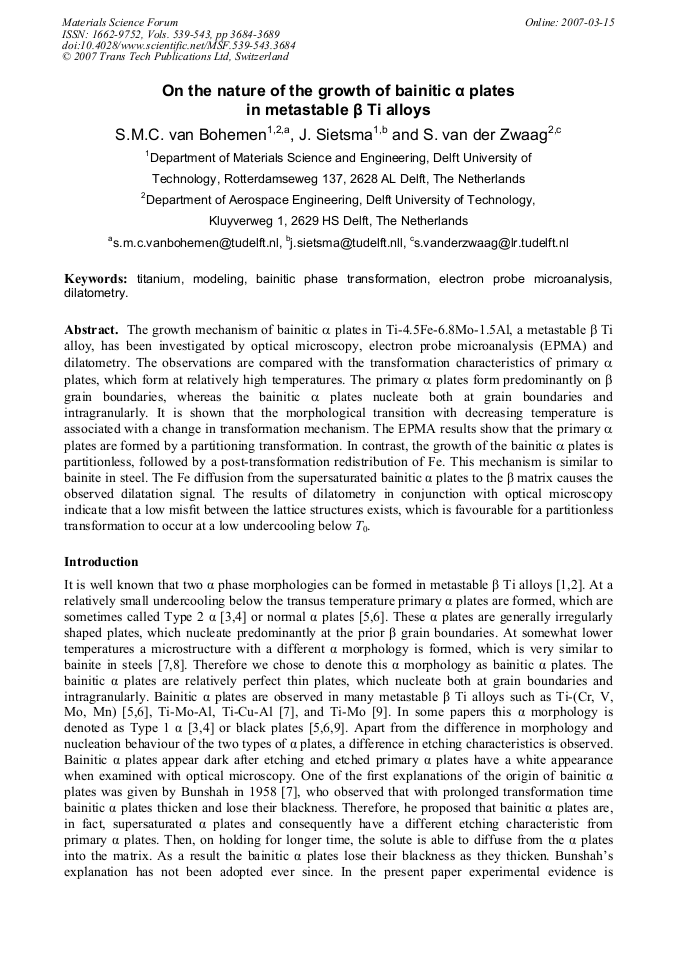

Article Preview

The growth mechanism of bainitic α plates in Ti-4.5Fe-6.8Mo-1.5Al, a metastable β Ti alloy, has been investigated by optical microscopy, electron probe microanalysis (EPMA) and dilatometry. The observations are compared with the transformation characteristics of primary α plates, which form at relatively high temperatures. The primary α plates form predominantly on β grain boundaries, whereas the bainitic α plates nucleate both at grain boundaries and intragranularly. It is shown that the morphological transition with decreasing temperature is associated with a change in transformation mechanism. The EPMA results show that the primary α plates are formed by a partitioning transformation. In contrast, the growth of the bainitic α plates is partitionless, followed by a post-transformation redistribution of Fe. This mechanism is similar to bainite in steel. The Fe diffusion from the supersaturated bainitic α plates to the β matrix causes the observed dilatation signal. The results of dilatometry in conjunction with optical microscopy indicate that a low misfit between the lattice structures exists, which is favourable for a partitionless transformation to occur at a low undercooling below T0.



Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran




S.M.C. van Bohemen et al., "On the Nature of the Growth of Bainitic α plates in Metastable β Ti Alloys", Materials Science Forum, Vols. 539-543, pp. 3684-3689, 2007

Online since:

March 2007




[1] J.C. Williams: Titanium Science and Technology (Plenum Press, New York 1973).

[2] M.J. Blackburn and J.C. Williams: T M S AIME 242 (1968), p.2461.

[3] C.G. Rhodes and J.C. Williams: Metall. Trans. A 6A (1975), p.2103.

[4] Y. Ohmori, H. Natdui and N. Kiyomichi: Mat. Tr. JIM 39(1) (1998), p.49.

[5] E.S.K. Menon and H.I. Aaronson: Acta Metall. 34 (1986), p. (1963).

[6] H.I. Aaronson, W.B. Triplett and G. M Andes: T M S AIME 209 (1957), p.1227.

[7] R.F. Bunshah: T M S AIME 212 (1958), p.424.

[8] M. Enomoto and M. Fujita: Metall. Trans A 21A (1990), p.1547.

[9] H. Guo and M. Enomoto: Acta Mat 50 (2002), p.929.

[10] J.L. Murray: Phase diagrams of binary titanium alloys (ASM Metals Park OH 1987).

[11] T. Furuhara, T. Makino, Y. Idei and H. Ishigaki: Mat. Trans. JIM 39 (1998), p.31.

[12] S. Azimzadeh and H.J. Rack: Met. Mat. Trans. 29A (1998), p.2455.

[13] T.A. Kop, J. Sietsma and S. Van der Zwaag: J. Mat. Sc. 36 (2001), p.519.

[14] S.M.C. Van Bohemen, J. Sietsma and S. Van der Zwaag: Submitted to Met. Mat. Tr. A.

[15] T. Furuhara, H.J. Lee, E.S.K. Menon and H.I. Aaronson: Metall. Trans. A 21A (1990), p.1627.

[16] H.K.D.H. Bhadeshia: Bainite in steels (The Institute of Materials, 2nd ed. London 2001).

[17] S.M.C. Van Bohemen, J. Sietsma and S. Van der Zwaag: Submitted to Acta Mat.
