Microstructure and Mechanical Properties of an Advanced Niobium Based Ultrahigh Temperature Alloy

Abstract:

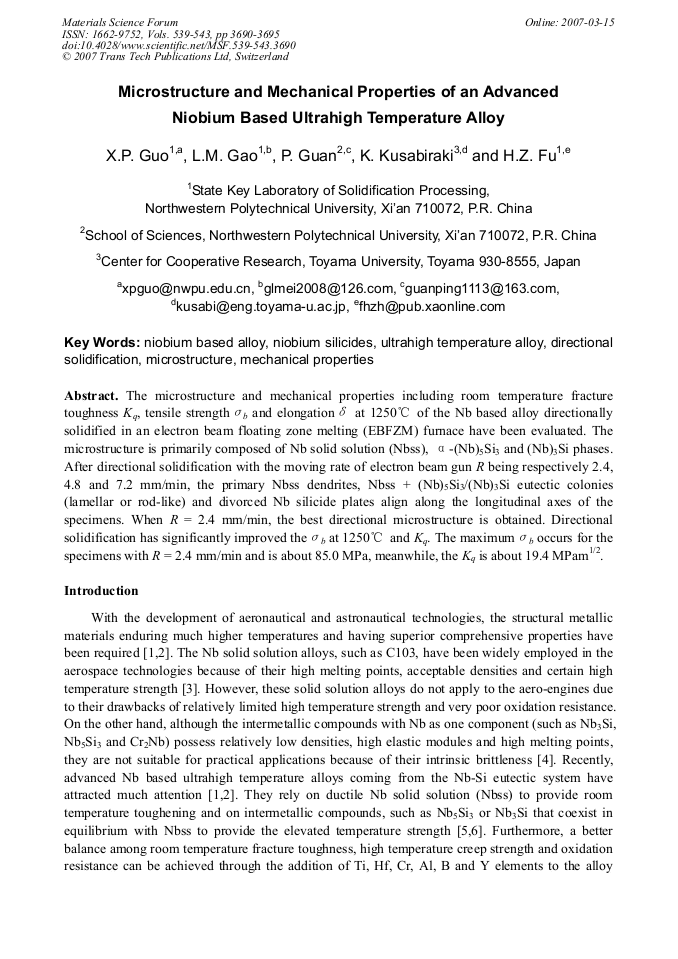

Article Preview

The microstructure and mechanical properties including room temperature fracture toughness Kq, tensile strengthσb and elongationδ at 1250°C of the Nb based alloy directionally solidified in an electron beam floating zone melting (EBFZM) furnace have been evaluated. The microstructure is primarily composed of Nb solid solution (Nbss), α-(Nb)5Si3 and (Nb)3Si phases. After directional solidification with the moving rate of electron beam gun R being respectively 2.4, 4.8 and 7.2 mm/min, the primary Nbss dendrites, Nbss + (Nb)5Si3/(Nb)3Si eutectic colonies (lamellar or rod-like) and divorced Nb silicide plates align along the longitudinal axes of the specimens. When R = 2.4 mm/min, the best directional microstructure is obtained. Directional solidification has significantly improved theσb at 1250°C and Kq. The maximumσb occurs for the specimens with R = 2.4 mm/min and is about 85.0 MPa, meanwhile, the Kq is about 19.4 MPam1/2.

Info:

Periodical:

Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran

Pages:

3690-3695

Citation:

X.P. Guo et al., "Microstructure and Mechanical Properties of an Advanced Niobium Based Ultrahigh Temperature Alloy", Materials Science Forum, Vols. 539-543, pp. 3690-3695, 2007

Online since:

March 2007

Export:

Price:

$38.00

[1] B.P. Bewlay, M.R. Jackson, J. -C. Zhao, P.R. Subramanian, M.G. Mendiratta and J.J. Lewandowski: MRS Bulletin Vol. 28 (2003), p.646.

[2] D.M. Dimiduk, D.B. Miracle and C.H. Ward: Mater. Sci. Tech. Vol. 8 (1992), p.367.

[3] J.B. Sha, H. Hirai, T. Tabaru, A. Kitahara, H. Ueno and S. Hanada: Mater. Sci. Eng. Vol. 364 (2004), p.151.

[4] B.P. Bewlay, M.R. Jackson, J. -C. Zhao and P.R. Subramanian: Metall. Mater. Trans. Vol. 34A (2003), p. (2043).

[5] B.P. Bewlay, M.R. Jackson and H.A. Lipsitt: Metall. Mater. Trans. Vol. 27A (1996), p.3801.

[6] D. Van Heerden, A.J. Gavens, P.R. Subramanian, T. Foecke and T.P. Weihs: Metall. Mater. Trans. Vol. 32A (2001), p.2363.

[7] P. Guan, X.P. Guo, X. Ding, J. Zhang, L.M. Gao and K. Kusabiraki: Acta Metallurgica Sinica (English Letters) Vol. 17 (2004), p.450.

[8] X.P. Guo, P. Guan, X. Ding, J. Zhang, K. Kusabiraki and H.Z. Fu: Mater. Sci. Forum Vols. 475-479 (2005), p.745.
