Microstructure of Friction-Stir-Welded High-Nitrogen Stainless Steel

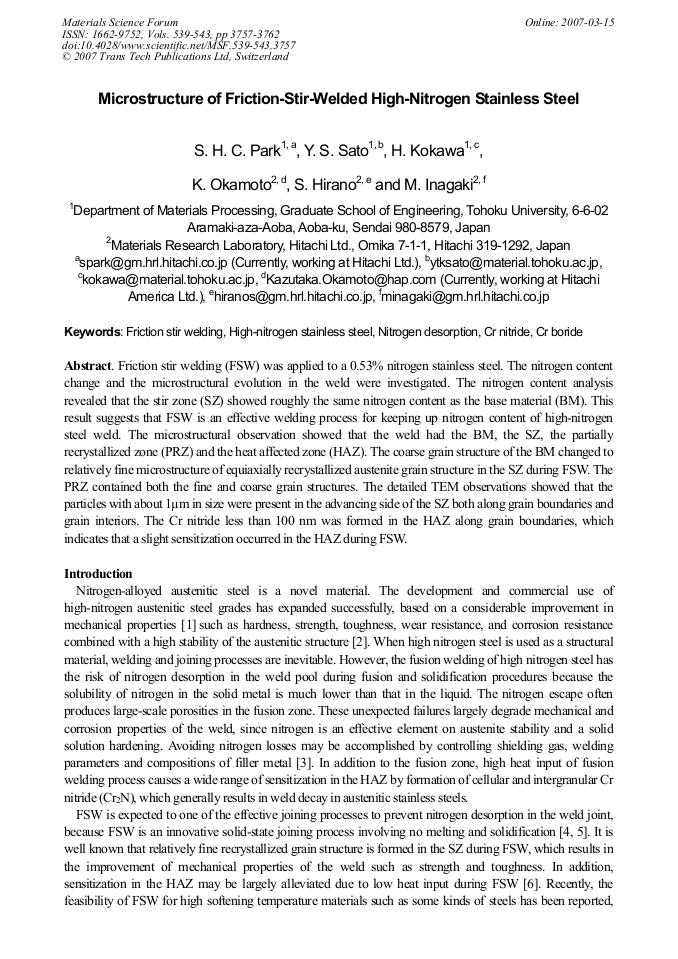

Article Preview

Friction stir welding (FSW) was applied to a 0.53% nitrogen stainless steel. The nitrogen content change and the microstructural evolution in the weld were investigated. The nitrogen content analysis revealed that the stir zone (SZ) showed roughly the same nitrogen content as the base material (BM). This result suggests that FSW is an effective welding process for keeping up nitrogen content of high-nitrogen steel weld. The microstructural observation showed that the weld had the BM, the SZ, the partially recrystallized zone (PRZ) and the heat affected zone (HAZ). The coarse grain structure of the BM changed to relatively fine microstructure of equiaxially recrystallized austenite grain structure in the SZ during FSW. The PRZ contained both the fine and coarse grain structures. The detailed TEM observations showed that the particles with about 11m in size were present in the advancing side of the SZ both along grain boundaries and grain interiors. The Cr nitride less than 100 nm was formed in the HAZ along grain boundaries, which indicates that a slight sensitization occurred in the HAZ during FSW.



Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran




S.H.C. Park et al., "Microstructure of Friction-Stir-Welded High-Nitrogen Stainless Steel", Materials Science Forum, Vols. 539-543, pp. 3757-3762, 2007

Online since:

March 2007




[1] J.C. Rawers: Proc. Inst. Mech. Eng. Part l, 2004, vol. 218 (L3), p.239.

[2] J.N. Bernauer and G. Saller: Trans. Indian Inst. Metals, 2002, vol. 55 (4), p.193.

[3] I. Woo and Y. Kikuchi: ISIJ International, 2002, vol. 42 (12), p.1334.

[4] C.J. Dawes and W.M. Thomas: Welding J., 1996, vol. 75 (3), p.41.

[5] W.M. Thomas and E.D. Nicholas: Mater. Design, 1997, vol. 18(4-6), p.269.

[6] S.H.C. Park, Y.S. Sato, H. Kokawa, K. Okamoto, S. Hirano, and M. Inagaki: Scripta Mater., 2004, vol. 51, p.101.

[7] W.M. Thomas, P.L. Threadgill, and E.D. Nicholas: Sci. Tech. Weding Join., 1999, vol. 4 (6), p.365.

[8] C.D. Sorensen, T.W. Nelson, and S.M. Packer: Proceedings of the 3rd International Symposium on Friction Stir Welding, TWI, Kobe, Japan, 2001, CD-ROM.

[9] T.J. Lienert, W.L. Jr. Stellwag, B.B. Grimmett, R.W. Warke: Welding J., 2003, vol. 82 (1), p. 1s.

[10] A.P. Reynolds, W. Tang, T. Gnaupel-Herold, and H. Prask: Scripta Mater., 2003, vol. 48, p.1289.

[11] K. Okamoto, S. Hirano, M. Inagaki, S.H.C. Park, Y.S. Sato, H. Kokawa, T.W. Nelson, C.D. Sorensen: Proceedings of the 4th International Symposium on Friction Stir Welding, TWI, Park City, Utah, 2003, CD-ROM.

[12] S.H.C. Park, Y.S. Sato, H. Kokawa, K. Okamoto, S. Hirano, and M. Inagaki: Scripta Mater., 2003, vol. 49, p.1175.

[13] W. Dong, H. Kokawa, S. Tsukamoto, and Y.S. Sato: Metall. Mater. Trans. B, 2005, vol. 36B (5), p.677.

[14] S.H.C. Park: PhD Thesis (Tohoku University, Japan), 2005, Microstructures and mechanical properties of friction stir welded stainless steels.
