Crystallographic Texture of Dissimilar Laser Welded Al5083-Al6013 Sheets


Article Preview

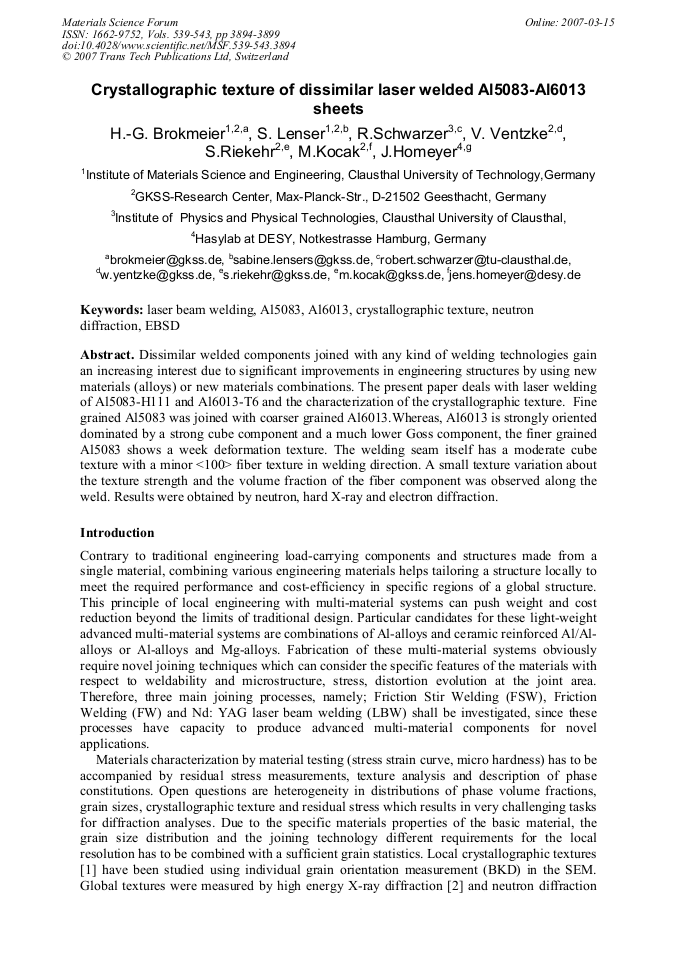

Dissimilar welded components joined with any kind of welding technologies gain an increasing interest due to significant improvements in engineering structures by using new materials (alloys) or new materials combinations. The present paper deals with laser welding of Al5083-H111 and Al6013-T6 and the characterization of the crystallographic texture. Fine grained Al5083 was joined with coarser grained Al6013.Whereas, Al6013 is strongly oriented dominated by a strong cube component and a much lower Goss component, the finer grained Al5083 shows a week deformation texture. The welding seam itself has a moderate cube texture with a minor <100> fiber texture in welding direction. A small texture variation about the texture strength and the volume fraction of the fiber component was observed along the weld. Results were obtained by neutron, hard X-ray and electron diffraction.



Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran




H. G. Brokmeier et al., "Crystallographic Texture of Dissimilar Laser Welded Al5083-Al6013 Sheets", Materials Science Forum, Vols. 539-543, pp. 3894-3899, 2007

Online since:

March 2007




[1] R.A. Schwarzer: The Physics of Metals and Metallography Vol. 96, Suppl. 1 (2003) p. S104.

[2] H. -R. Wenk and S. Grigull: J. Appl. Cryst. Vol. 36 (2003) p.1040.

[3] H. -G. Brokmeier: Textures Microstruc. Vol. 33 (1999) p.13.

[4] R. Schwarzer: Solid State Phenomena Vol. 105 (2005) p.23.

[5] L.G. Hector, Y. -L. Chen, S. Agarwal and C.L. Briant: Metallurgical and Materials Transaction AVol. 35 (2004) p.3032.

[6] H. -G. Brokmeier, U. Zink, R. Schnieber and B. Witassek: Materials Science Forum Vol. 273-275 (1998) p.277.


[7] M. Dahms and H.J. Bunge: J. Appl, Cryst. Vol. 22 (1989), 439.
