Static Recrystallization of Tool Steels

Abstract:

Article Preview

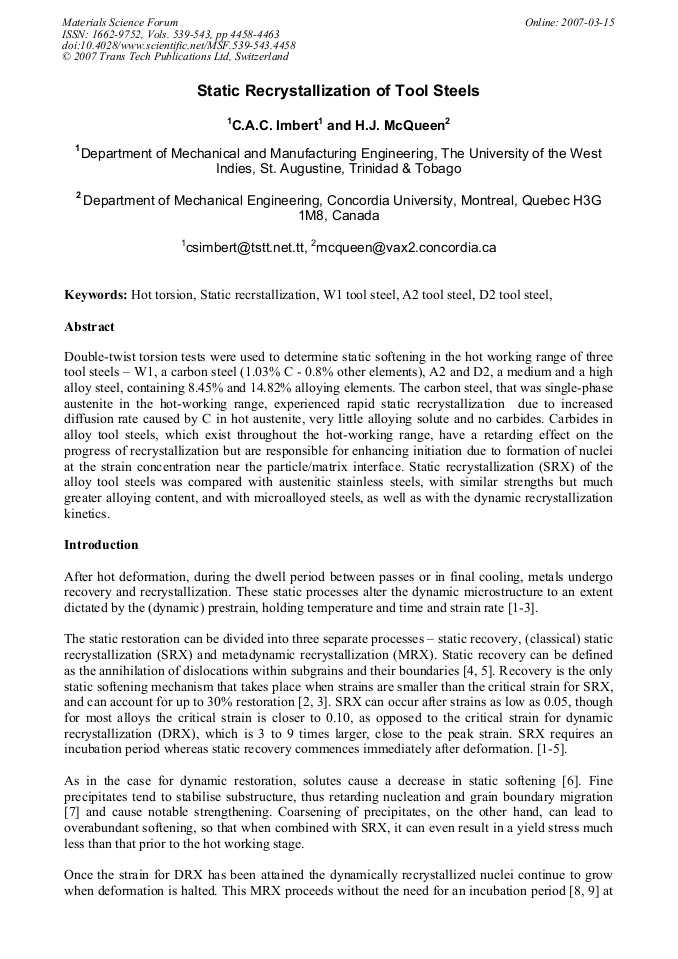

Double-twist torsion tests were used to determine static softening in the hot working range of three tool steels – W1, a carbon steel (1.03% C - 0.8% other elements), A2 and D2, a medium and a high alloy steel, containing 8.45% and 14.82% alloying elements. The carbon steel, that was single-phase austenite in the hot-working range, experienced rapid static recrystallization due to increased diffusion rate caused by C in hot austenite, very little alloying solute and no carbides. Carbides in alloy tool steels, which exist throughout the hot-working range, have a retarding effect on the progress of recrystallization but are responsible for enhancing initiation due to formation of nuclei at the strain concentration near the particle/matrix interface. Static recrystallization (SRX) of the alloy tool steels was compared with austenitic stainless steels, with similar strengths but much greater alloying content, and with microalloyed steels, as well as with the dynamic recrystallization kinetics.

Info:

Periodical:

Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran

Pages:

4458-4463

DOI:

10.4028/www.scientific.net/MSF.539-543.4458

Citation:

C.A.C. Imbert and H.J. McQueen, "Static Recrystallization of Tool Steels", Materials Science Forum, Vols. 539-543, pp. 4458-4463, 2007

Online since:

March 2007

Export:

Price:

$35.00

In order to see related information, you need to Login.

In order to see related information, you need to Login.
