Microstructure and Properties of Pipeline Steel with Acicular Ferrite

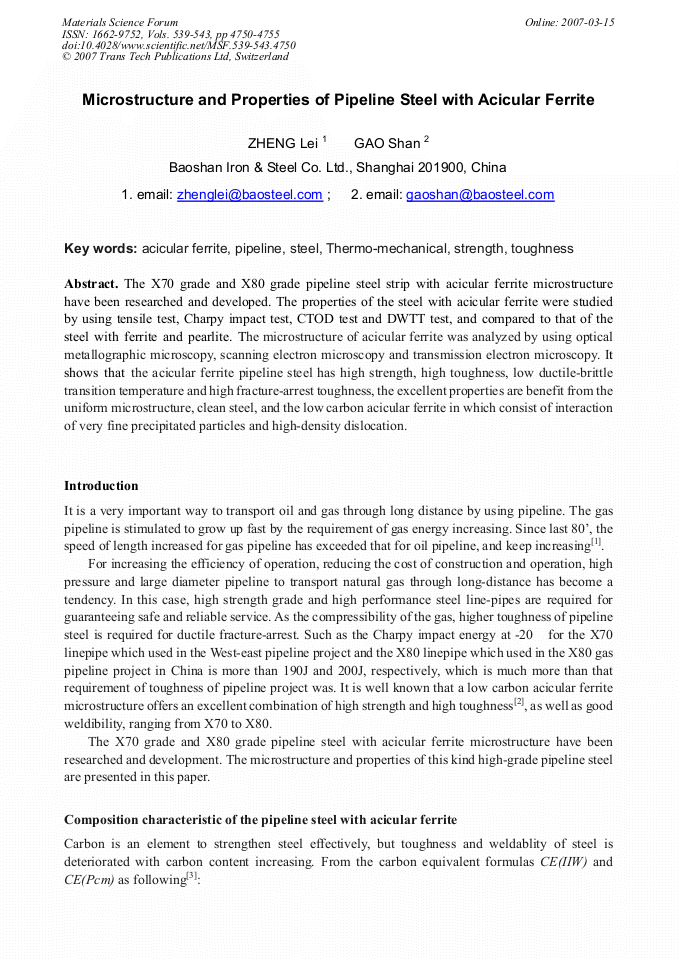

Article Preview

The X70 grade and X80 grade pipeline steel strip with acicular ferrite microstructure have been researched and developed. The properties of the steel with acicular ferrite were studied by using tensile test, Charpy impact test, CTOD test and DWTT test, and compared to that of the steel with ferrite and pearlite. The microstructure of acicular ferrite was analyzed by using optical metallographic microscopy, scanning electron microscopy and transmission electron microscopy. It shows that the acicular ferrite pipeline steel has high strength, high toughness, low ductile-brittle transition temperature and high fracture-arrest toughness, the excellent properties are benefit from the uniform microstructure, clean steel, and the low carbon acicular ferrite in which consist of interaction of very fine precipitated particles and high-density dislocation.



Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran




L. Zheng and S. Gao, "Microstructure and Properties of Pipeline Steel with Acicular Ferrite", Materials Science Forum, Vols. 539-543, pp. 4750-4755, 2007

Online since:

March 2007





[1] George Ives, Jr., A Review: Pipe Line Construction between 1948 and 1997, Pipe Line & Gas Industry, 1998, (1) :59-63.

[2] H. K. D. H. Bhadeshia, Bainite in Steel (Second Edition), The University Press, Cambridge, UK, (2001).

[3] American Petroleum Institute, API Specification 5L, Specification for Line Pipe (the 43rd edition), March (2004).

[4] Tither G, The Development and Applications of Niobium-Containing HSLA Steels[A], HSLA Steels: Processing, Properties and Applications[C], Tither G and Z Shouhua Ed., Warrendale, Pennsylvania, The Minerals, Metals & Materials Society, 1992, 61-80.

[5] H. Nordberg and B. Aronsson Solubility of Niobium Carbide in Austenite, J. of The Iron & Steel Inst., 1968, 1263-1266.
