Electron Beam Freeform Fabrication on Stainless Steel

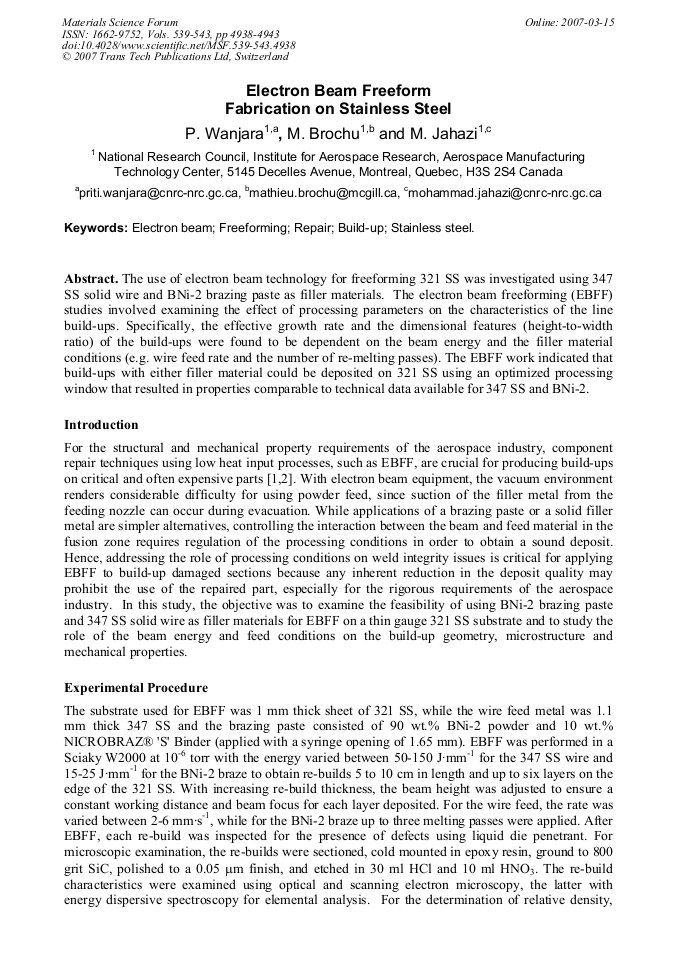

Article Preview

The use of electron beam technology for freeforming 321 SS was investigated using 347 SS solid wire and BNi-2 brazing paste as filler materials. The electron beam freeforming (EBFF) studies involved examining the effect of processing parameters on the characteristics of the line build-ups. Specifically, the effective growth rate and the dimensional features (height-to-width ratio) of the build-ups were found to be dependent on the beam energy and the filler material conditions (e.g. wire feed rate and the number of re-melting passes). The EBFF work indicated that build-ups with either filler material could be deposited on 321 SS using an optimized processing window that resulted in properties comparable to technical data available for 347 SS and BNi-2.



Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran




P. Wanjara et al., "Electron Beam Freeform Fabrication on Stainless Steel", Materials Science Forum, Vols. 539-543, pp. 4938-4943, 2007

Online since:

March 2007




[1] M. Gäumann, C. Bezencon, P. Canalis and W. Kurz: Acta Mater Vol. 49 (2001), p.1051.

[2] J.E. Matz and T.W. Eagar: Metall. Mater. Trans. Vol. 33A (2002), p.2559.

[3] Information Matweb website, www. mateweb. com.

[4] W. Hofmeister, M. Griffith, M. Ensz and J. Smugeresky: JOM Vol. 53 (2001) p.30.

[5] K.M.B. Taminger and R.A. Hafley: Proceedings of 13th Solid Freeform Fabrication Symposium, , Austin, Texas (2002) ISSN 1053-2153, p.482 [CD-ROM].

[6] Information on AMETEK website, http: /www. ametekmetals. com.

[7] X. Wu, R. S. Chandel, S.H. Pheow and H. Li: Mater. Sci. Eng. Vol. 288A (2000), p.84.

[8] Information on ASM website, http: /www. aerospacemetals. com.

[9] Information US Welding Corp. website, http: /www. usweldingcorp. com/tds/tds5680. htm.

[10] Information on Outokumpu Stainless, Avesta Welding, Welding Consumables website, http: /www. outokumpu. com/upload/documents/technical/datasheets/272101GB. pdf.

[11] Information on J.W. Harris Company website, http: /www. jwharris. com/images/pdf/347. pdf.
