Decomposition of Austenite in Fe-25Cr-1N Alloy Produced by Solution Nitriding

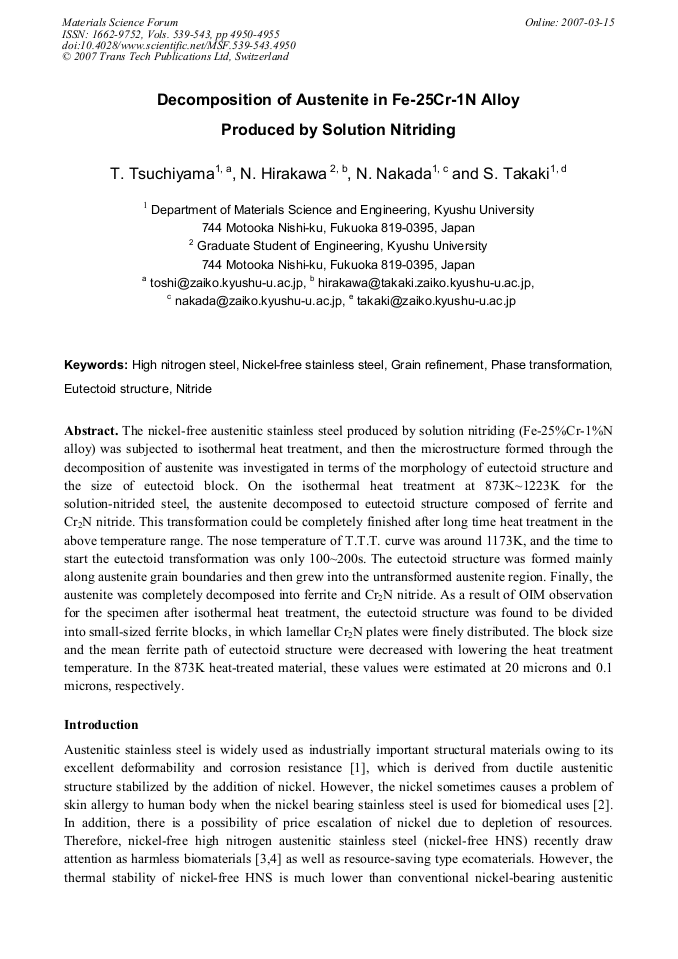

Article Preview

The nickel-free austenitic stainless steel produced by solution nitriding (Fe-25%Cr-1%N alloy) was subjected to isothermal heat treatment, and then the microstructure formed through the decomposition of austenite was investigated in terms of the morphology of eutectoid structure and the size of eutectoid block. On the isothermal heat treatment at 873K~1223K for the solution-nitrided steel, the austenite decomposed to eutectoid structure composed of ferrite and Cr2N nitride. This transformation could be completely finished after long time heat treatment in the above temperature range. The nose temperature of T.T.T. curve was around 1173K, and the time to start the eutectoid transformation was only 100~200s. The eutectoid structure was formed mainly along austenite grain boundaries and then grew into the untransformed austenite region. Finally, the austenite was completely decomposed into ferrite and Cr2N nitride. As a result of OIM observation for the specimen after isothermal heat treatment, the eutectoid structure was found to be divided into small-sized ferrite blocks, in which lamellar Cr2N plates were finely distributed. The block size and the mean ferrite path of eutectoid structure were decreased with lowering the heat treatment temperature. In the 873K heat-treated material, these values were estimated at 20 microns and 0.1 microns, respectively.



Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran




T. Tsuchiyama et al., "Decomposition of Austenite in Fe-25Cr-1N Alloy Produced by Solution Nitriding", Materials Science Forum, Vols. 539-543, pp. 4950-4955, 2007

Online since:

March 2007




[1] M. Hasegwa: Handbook of Stainless Steel, THE NIKKAN KOGYO SHIMBUN CO. LTD, Tokyo (1973), p.156.

[2] Proc. Of 4th Int. Conf. on High Nitrogen Steels, The Iron and Steel Institute of Japan, Tokyo (1995).

[3] J. Menzel, W. Kirschner and G. Stein: ISIJ Int. Vol. 36 (1996), p.893.

[4] P. J. Uggowitzer, R. Magdowski and M. O. Speidel: ISIJ Int. Vol. 36 (1996), p.901.

[5] M.O. Spiedel: Proc. Int. Conf. on Stainless Steels '91, The Iron and Steel Institute of Japan , Tokyo (1991), p.25.

[6] V.G. Gavriljuk and H. Berns: High Nitrogen Steels-Structure, Properties, Manufacture, Applications, Springer, Berlin (1999), p.135.

[7] JIS Hand book Tekko, Nihon Kikaku Kyokai, Tokyo (1974), p.99.

[8] T. Tsuchiyama, T. Fukumaru, M. Egashira and S. Takaki: ISIJ Int. Vol. 44 (2004), p.1121.

[9] C. M. Garzon and A. P. Tschiptschin: Proc. Int. Conf. on High Nitrogen Steel 2004, GRIPS media GmbH, Bad Harzburg (2004), p.205.

[10] J. Aghazadeh-Mohandesi, R. Priestner: Metals Technology, Vol. 10 (1983), p.89.

[11] N, Nakamura and S. Takaki: ISIJ Int. Vol. 36 (1996), p.922.

[12] T. Tsuchiyama, H. Ito, K. Kataoka and S. Takaki: Metall. Mater. Trans. A Vol. 34 (2003), p.2591.

[13] H. Berns and S. Siebert: ISIJ Int. Vol. 36 (1996), p.927.

[14] M. Kajiwara, M. Yamagashira , N. Ono and M. Kikuchi: Abstract of The Japan Society for Heat Treatment, Vol. 23 (1986), p.39.
