Properties of Low Carbon High Nitrogen Martensitic Stainless Steels

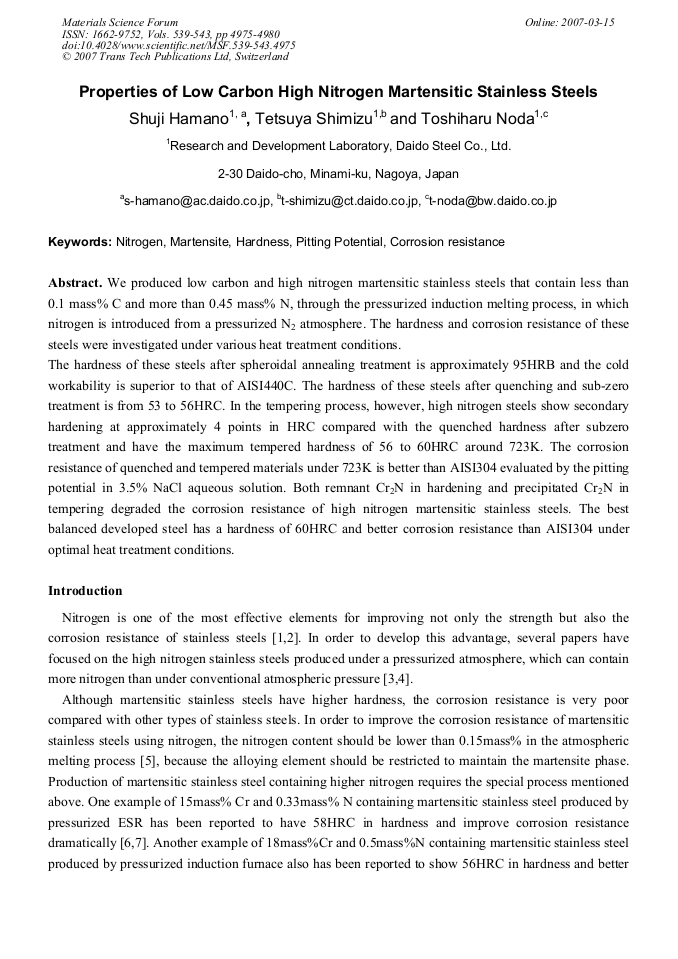

Article Preview

We produced low carbon and high nitrogen martensitic stainless steels that contain less than 0.1 mass% C and more than 0.45 mass% N, through the pressurized induction melting process, in which nitrogen is introduced from a pressurized N2 atmosphere. The hardness and corrosion resistance of these steels were investigated under various heat treatment conditions. The hardness of these steels after spheroidal annealing treatment is approximately 95HRB and the cold workability is superior to that of AISI440C. The hardness of these steels after quenching and sub-zero treatment is from 53 to 56HRC. In the tempering process, however, high nitrogen steels show secondary hardening at approximately 4 points in HRC compared with the quenched hardness after subzero treatment and have the maximum tempered hardness of 56 to 60HRC around 723K. The corrosion resistance of quenched and tempered materials under 723K is better than AISI304 evaluated by the pitting potential in 3.5% NaCl aqueous solution. Both remnant Cr2N in hardening and precipitated Cr2N in tempering degraded the corrosion resistance of high nitrogen martensitic stainless steels. The best balanced developed steel has a hardness of 60HRC and better corrosion resistance than AISI304 under optimal heat treatment conditions.



Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran




S. Hamano et al., "Properties of Low Carbon High Nitrogen Martensitic Stainless Steels", Materials Science Forum, Vols. 539-543, pp. 4975-4980, 2007

Online since:

March 2007




[1] K.J. Irvine et al.: ISIJ, 199 (1961), p.163.

[2] K.J. Irvine et al.: ISIJ, 207 (1969), p.1017.

[3] H. Berns: Proceedings of High Nitrogen Steels 2004, p.271.

[4] J. Bernauer, G. Saller and M.O. Speidel: Proceedings of High Nitrogen Steels 2004, p.529.

[5] K. Takano, M. Sakakibara, W. Murata, T. Matsui and K. Yoshimura: Shin-Nittetsu Giho, 361 (1996), p.43.

[6] H. Berns: Steel Research, 63 (1992), No. 8, p.343.

[7] H. Berns, J. Lueg, W. Trojahn and H. -W. Zoch: Proceeding of High Nitrogen Steels 1990, p.425.

[8] T. Shimizu, T. Koga and T. Noda: Denki-Seiko, 73 (2002), 2, p.87.

[9] H.K. Feichtinger and G. Stein: Material Science Forum Vols. 318-320, (1999), p.261.

[10] S. Hashizume, J. Chino, H. Sato, J. Sakai and I. Matsushima: Zairyo-to-Kankyo, 45, (1996), p.90.
