Influence of the Shot Peening Process on the Fatigue Behaviour of Duplex Stainless Steel Reinforcing Bars

Abstract:

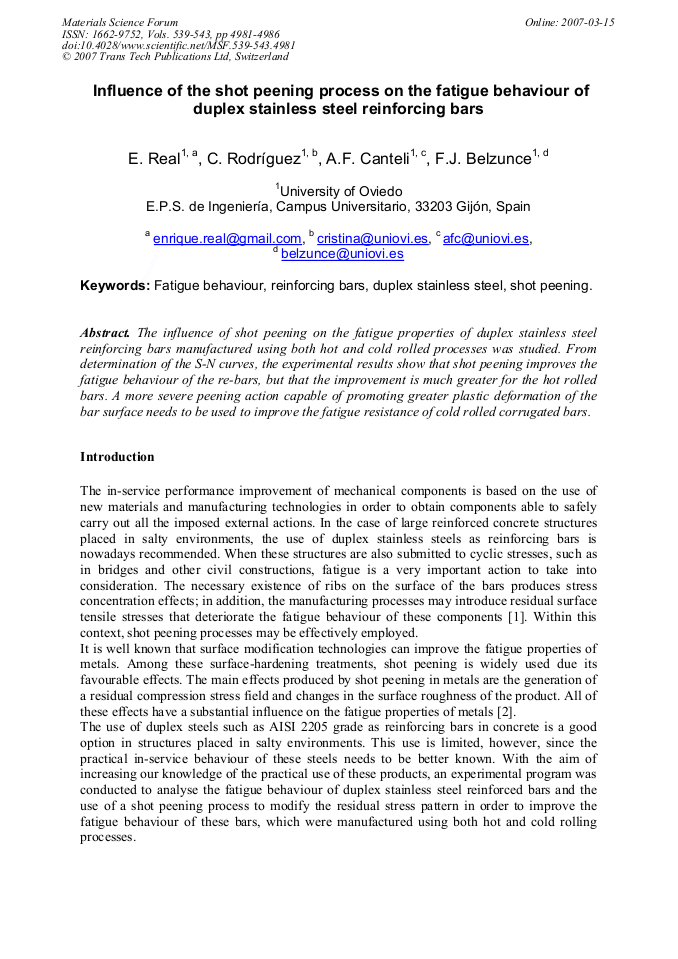

Article Preview

The influence of shot peening on the fatigue properties of duplex stainless steel reinforcing bars manufactured using both hot and cold rolled processes was studied. From determination of the S-N curves, the experimental results show that shot peening improves the fatigue behaviour of the re-bars, but that the improvement is much greater for the hot rolled bars. A more severe peening action capable of promoting greater plastic deformation of the bar surface needs to be used to improve the fatigue resistance of cold rolled corrugated bars.

Info:

Periodical:

Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran

Pages:

4981-4986

Citation:

E. Real et al., "Influence of the Shot Peening Process on the Fatigue Behaviour of Duplex Stainless Steel Reinforcing Bars", Materials Science Forum, Vols. 539-543, pp. 4981-4986, 2007

Online since:

March 2007

Export:

Price:

$38.00

[1] Tilly G P. Fatigue of steel reinforcement bars in concrete: a review. Fatigue of Eng. Mater. and Structures. 1979; 2: 251-268.

DOI: https://doi.org/10.1111/j.1460-2695.1979.tb01084.x

[2] Gao Y., Lu F., Yin F. and Yao M. Effects of shot peening on fatigue properties of 0Cr13Ni8Mo2Al steel. Materials science and technology, vol. 19, pp.372-374, (2003).

DOI: https://doi.org/10.1179/026708303225010650

[3] ASTM A955/A955M-01 Standard specification for deformed and plain steel reinforcing bars for concrete reinforcement ASTM, (2001).

[4] BS 6744: 2001. Stainless steel bars for the reinforcement of concrete. (2001).

[5] ISO/CD 15630-1. 2 (1998): Steel for the reinforcement and prestressing of concrete - Test methods- Part 1: Reinforcing bars and wires.

[6] E. Real, C. Rodríguez, A. F. Canteli, F. J. Belzunce, M. L. Aenlle. Efecto de la tensión media en el comportamiento a fatiga de barras corrugadas de acero inoxidable duplex. Anales de Mecánica de la Fractura, Vol. 22 (2005).

DOI: https://doi.org/10.3989/mc.2013.02512

[7] Castillo E, Canteli A, Esslinger V, Thürlimann B. Statistical Model for Fatigue Analysis of Wires, Strands and Cables. IABSE Proceedings, 1985, p.82/8.

[13] .

[8] Conway J, Sjodahl L. Analysis and representation of fatigue data. ASM Int. (1991).

[9] J. Ruiz, J.M. Atienza, M. Elices. Residual stresses in wires: influence of wire length. Journal of Materials Engineering and Performance, vol. 12(4), pp.480-489.

DOI: https://doi.org/10.1361/105994903770343042
