Structural Change during Cold Rolling of Electrodeposited Copper

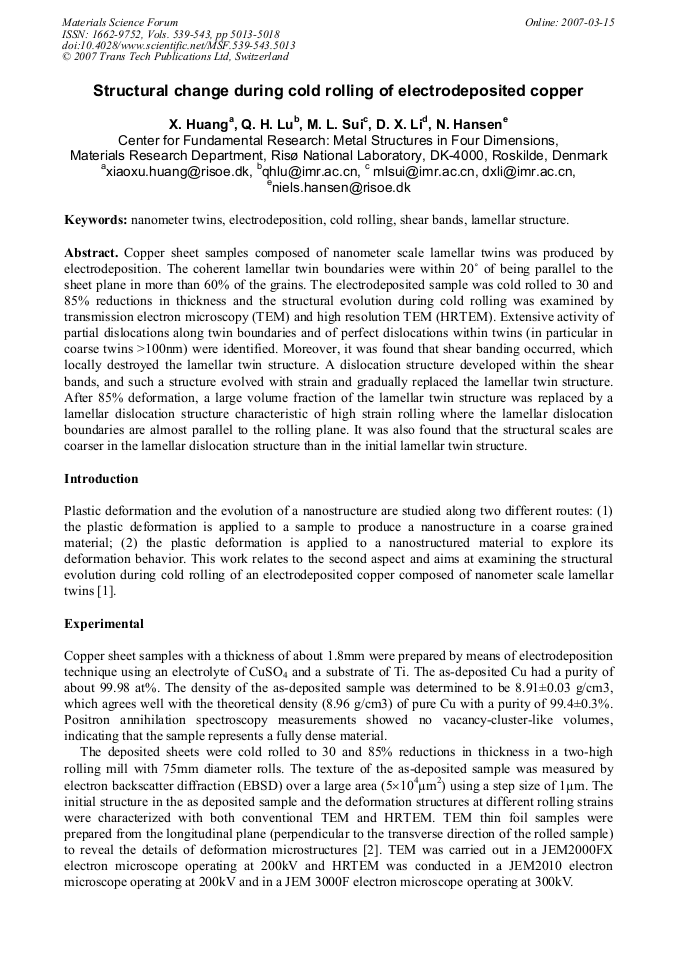

Article Preview

Copper sheet samples composed of nanometer scale lamellar twins was produced by electrodeposition. The coherent lamellar twin boundaries were within 20˚ of being parallel to the sheet plane in more than 60% of the grains. The electrodeposited sample was cold rolled to 30 and 85% reductions in thickness and the structural evolution during cold rolling was examined by transmission electron microscopy (TEM) and high resolution TEM (HRTEM). Extensive activity of partial dislocations along twin boundaries and of perfect dislocations within twins (in particular in coarse twins >100nm) were identified. Moreover, it was found that shear banding occurred, which locally destroyed the lamellar twin structure. A dislocation structure developed within the shear bands, and such a structure evolved with strain and gradually replaced the lamellar twin structure. After 85% deformation, a large volume fraction of the lamellar twin structure was replaced by a lamellar dislocation structure characteristic of high strain rolling where the lamellar dislocation boundaries are almost parallel to the rolling plane. It was also found that the structural scales are coarser in the lamellar dislocation structure than in the initial lamellar twin structure.



Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran




X. Huang et al., "Structural Change during Cold Rolling of Electrodeposited Copper", Materials Science Forum, Vols. 539-543, pp. 5013-5018, 2007

Online since:

March 2007




[1] M. L. Sui, Q. H. Lu, X. Huang, D. X. Li and N. Hansen, in: Evolution of Deformation Microstructures in 3D, edited by C. Gundlach, K. Haldrup, N. Hansen, X. Huang, D. Juul, T. Leffers, Z. J. Li, S. F. Nielsen, W. Pantleon, J. A. Wert, and G. Winther, Risø National Laboratory, Roskilde (2004).

[2] G. Winther, X. Huang, A. Godfrey and N. Hansen: Acta Mater. Vol. 52 (2004), p.4437.

[3] W. T. Read, Dislocations in Crytsals, (McGraw-Hill Book Company, Inc., New York, 1953).

[4] D. A. Hughes and N. Hansen: Phil. Mag. Vol. 83 (2003), p.3871.

[5] H. Paul, J. H. Driver, C. Maurice and Z. Jasieński: Mater. Sci. Eng. Vol. A359 (2003), p.171.

[6] H. Paul, J. H. Driver, and Z. Jasieński: Acta Mater. Vol. 50 (2002), p.4339.

[7] K. Morii and Y. Nakayama: Trans Japan Institute of Metals, Vol. 22 (1981), p.857.

[8] Morikawa, and K. Higashida, in: Recrystallization - Fundamental Aspects, Proceedings of the 21st International Risø Symposium on Materials Science, edited by. N. Hansen, X. Huang, D. Juul Jensen, E. M. Lauridsen, T. Leffers, W. Pantleon, T. J. Sabin and J. A. Wert, Risø National Laboratory, Roskilde (2000).

[9] C. Donadille, R. Valle, P. Dervin, and R. Penelle: Acta metall. Vol. 37 (1989), p.1547.

[10] W. Y. Yeung and B. J. Duggan: Acta metal. Vol. 35 (1987), p.35.

[11] N. Hansen: Metall. Mater. Trans. A. Vol. 32A (2001), p.2917.
