Investigation of the Hydroxyapatite Crystallites in Bone at the Interface with Implant by Neutron Diffraction

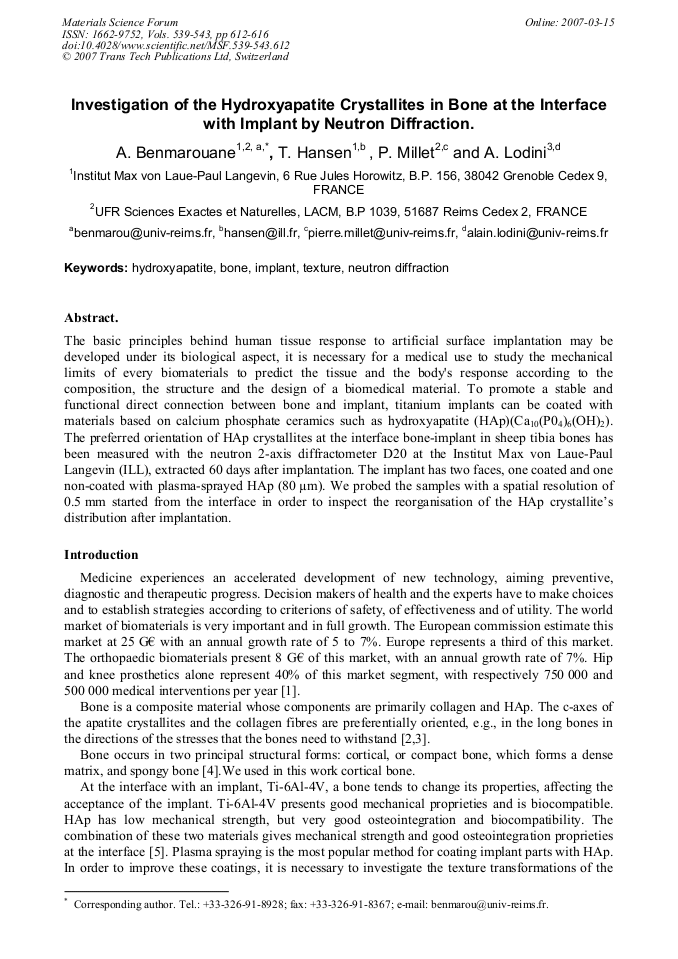

Article Preview

The basic principles behind human tissue response to artificial surface implantation may be developed under its biological aspect, it is necessary for a medical use to study the mechanical limits of every biomaterials to predict the tissue and the body's response according to the composition, the structure and the design of a biomedical material. To promote a stable and functional direct connection between bone and implant, titanium implants can be coated with materials based on calcium phosphate ceramics such as hydroxyapatite (HAp)(Ca10(P04)6(OH)2). The preferred orientation of HAp crystallites at the interface bone-implant in sheep tibia bones has been measured with the neutron 2-axis diffractometer D20 at the Institut Max von Laue-Paul Langevin (ILL), extracted 60 days after implantation. The implant has two faces, one coated and one non-coated with plasma-sprayed HAp (80 .m). We probed the samples with a spatial resolution of 0.5 mm started from the interface in order to inspect the reorganisation of the HAp crystallite’s distribution after implantation.



Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran




A. Benmarouane et al., "Investigation of the Hydroxyapatite Crystallites in Bone at the Interface with Implant by Neutron Diffraction", Materials Science Forum, Vols. 539-543, pp. 612-616, 2007

Online since:

March 2007




[1] Thèse Barbotteau. Y, Clermont Ferrand (2002).

[2] G.E. Bacon: ILL Annual report (1996).

[3] A. Benmarouane, T. Hansen and A. Lodini, Physica B, 350, (2004)p. E611-E614.

[4] J. Mr.S. Skaklea and R.M. Aspdenb, J. App. Cryst. Vol. 35 (2002), p.506.

[5] B. Cofino, C. Braham, P. Millet and A. Lodini: Journal of Neutron Research Vol. 9 (2001), p.243.

[6] S. Matthies, H. -R. Wenk and G. W. Vinel: J. Appl. Cryst. Vol 21 (1988), p.285.

[7] Material Analysis Using Diffraction (MAUD) by L. Lutterotti. http: /ing. unitn. it/~luttero/maud.

[8] H. -R. Wenk., Y. Xie, L. Lutterotti, L. Ratschbacher, J. Richardson, J. Appl. Cryst. Vol. 34 (2001), p.442.
