SLEEM Study of MgAl2O4 at Interface betweeen Al2O3 and Matrix in Al2O3/Al Alloy Composite Materials

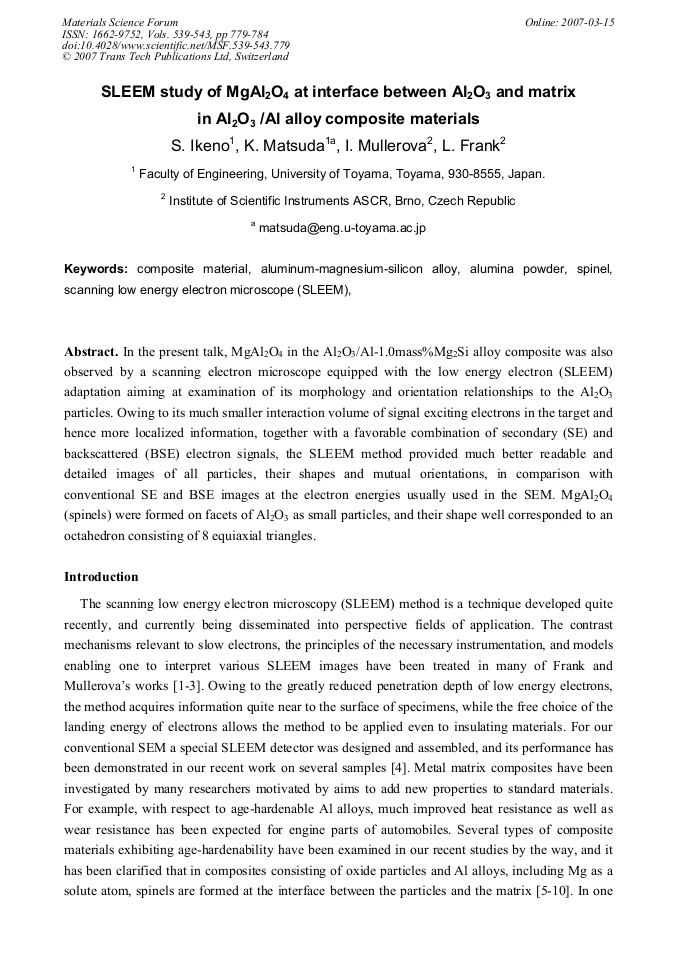

Article Preview

In the present talk, MgAl2O4 in the Al2O3/Al-1.0mass%Mg2Si alloy composite was also observed by a scanning electron microscope equipped with the low energy electron (SLEEM) adaptation aiming at examination of its morphology and orientation relationships to the Al2O3 particles. Owing to its much smaller interaction volume of signal exciting electrons in the target and hence more localized information, together with a favorable combination of secondary (SE) and backscattered (BSE) electron signals, the SLEEM method provided much better readable and detailed images of all particles, their shapes and mutual orientations, in comparison with conventional SE and BSE images at the electron energies usually used in the SEM. MgAl2O4 (spinels) were formed on facets of Al2O3 as small particles, and their shape well corresponded to an octahedron consisting of 8 equiaxial triangles.



Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran




S. Ikeno et al., "SLEEM Study of MgAl2O4 at Interface betweeen Al2O3 and Matrix in Al2O3/Al Alloy Composite Materials", Materials Science Forum, Vols. 539-543, pp. 779-784, 2007

Online since:

March 2007




[1] Mullerova and L. Frank: Scanning, Vol. 15 (1993), p.193.

[2] L. Frank and I. Mullerova: J. Electron Microsc., Vol. 48 (1999), p.205.

[3] Mullerova, L. Frank: Adv. Imaging Electron Phys. Vol. 128 (2003), p.309.

[4] Matsuda, S. Ikeno, I. Mullerova, L. Frank: J. Electron Microsc., Vol. 54 (2005), p.109.

[5] H. Ribes, M. Suery, G. L'esperance and J. G. Legoux: Met. Trans. A, Vol. 21 (1990), p.2489.

[6] P. Lu, R. E. Loehman, K. G. Ewsuk and W. G. Fahrenholtz: Acta Mater., Vol. 47 (1999), p.3099.

[7] B. Srinivasa Rao and V. Jayaram: Acta Mater., Vol. 49 (2001), p.2373.

[8] Z. P. Luo, Y. G. Song and S. Q. Zhang: Scripta Mater., Vol. 45 (2001), p.1183.

[9] Daoud and W. Reif: Mater. Process. Tech., Vol. 123 (2002), p.313.

[10] S. Ikeno, K. Matsuda, S. Rengakuji and Y. Uetani: J. Mater. Sci., Vol. 36 (2001), p. (1921).

[11] N. H. de Leeuw and S. C. Parker: J. Am. Ceramics, Vol. 82 (1999).
