Analysis of Fine Stress Fields in Metal Matrix Composites Using HOLZ Patterns

Abstract:

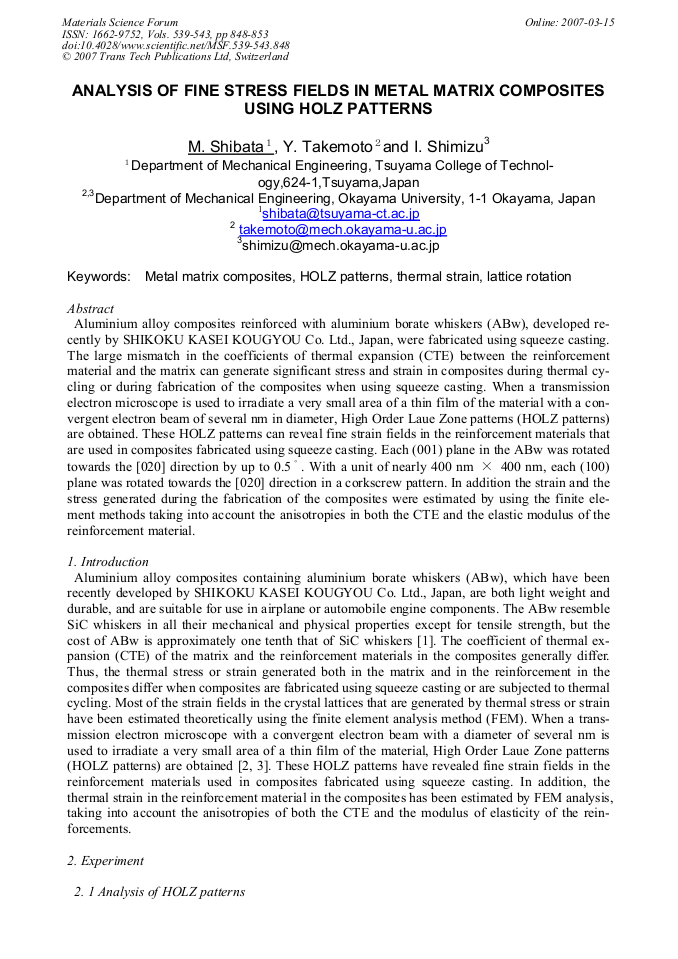

Article Preview

Aluminium alloy composites reinforced with aluminium borate whiskers (ABw), developed recently by SHIKOKU KASEI KOUGYOU Co. Ltd., Japan, were fabricated using squeeze casting. The large mismatch in the coefficients of thermal expansion (CTE) between the reinforcement material and the matrix can generate significant stress and strain in composites during thermal cycling or during fabrication of the composites when using squeeze casting. When a transmission electron microscope is used to irradiate a very small area of a thin film of the material with a convergent electron beam of several nm in diameter, High Order Laue Zone patterns (HOLZ patterns) are obtained. These HOLZ patterns can reveal fine strain fields in the reinforcement materials that are used in composites fabricated using squeeze casting. Each (001) plane in the ABw was rotated towards the [020] direction by up to 0.5 ゚. With a unit of nearly 400 nm × 400 nm, each (100) plane was rotated towards the [020] direction in a corkscrew pattern. In addition the strain and the stress generated during the fabrication of the composites were estimated by using the finite element methods taking into account the anisotropies in both the CTE and the elastic modulus of the reinforcement material.

Info:

Periodical:

Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran

Pages:

848-853

DOI:

10.4028/www.scientific.net/MSF.539-543.848

Citation:

M. Shibata et al., "Analysis of Fine Stress Fields in Metal Matrix Composites Using HOLZ Patterns", Materials Science Forum, Vols. 539-543, pp. 848-853, 2007

Online since:

March 2007
