Application of Inclined Cooling Plate to Fabrication of Semi-Solid Cast Iron

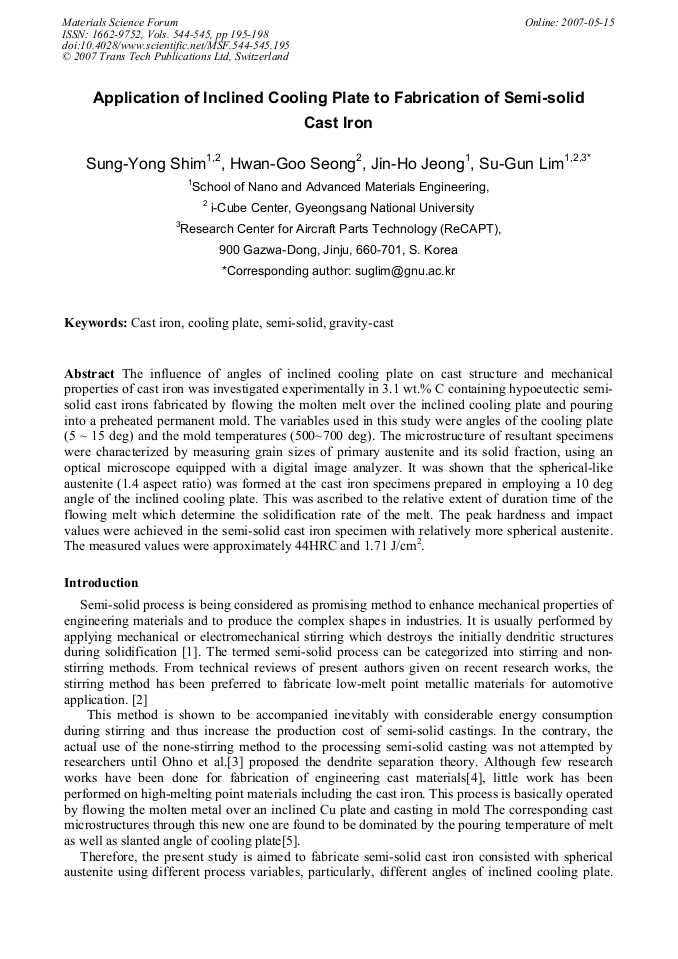

Article Preview

The influence of angles of inclined cooling plate on cast structure and mechanical properties of cast iron was investigated experimentally in 3.1 wt.% C containing hypoeutectic semisolid cast irons fabricated by flowing the molten melt over the inclined cooling plate and pouring into a preheated permanent mold. The variables used in this study were angles of the cooling plate (5 ~ 15 deg) and the mold temperatures (500~700 deg). The microstructure of resultant specimens were characterized by measuring grain sizes of primary austenite and its solid fraction, using an optical microscope equipped with a digital image analyzer. It was shown that the spherical-like austenite (1.4 aspect ratio) was formed at the cast iron specimens prepared in employing a 10 deg angle of the inclined cooling plate. This was ascribed to the relative extent of duration time of the flowing melt which determine the solidification rate of the melt. The peak hardness and impact values were achieved in the semi-solid cast iron specimen with relatively more spherical austenite. The measured values were approximately 44HRC and 1.71 J/cm2.



Materials Science Forum (Volumes 544-545)

Edited by:

Hyungsun Kim, Junichi Hojo and Soo Wohn Lee




S. Y. Shim et al., "Application of Inclined Cooling Plate to Fabrication of Semi-Solid Cast Iron ", Materials Science Forum, Vols. 544-545, pp. 195-198, 2007

Online since:

May 2007




[1] J. P. Eom, D. H. Jang, S. G. Lim, Manufacturing Technology of non-stirrer semi-solid metal, Journal of the Korean Foundrymen's Society, Vol. 17(2002), pp.538-544.

[2] Toshio H., Kapranos, P. J. of Mater. Processing Tech. 130-131 (2002), p.581.

[3] Masayuki T., Hiroaki U. and Isamu T., JSAE Review 24 (2003), p.205.

[4] Ohno T., The solidification - the separation theory and its practical applications, springerverlag, (1987), p.76.

[5] K. S. Kim, S. G. Lim, J. Kor. Inst. Metals., (2000), 38,. pp.529-051.

[1] [5] [20] [25] [30] [35] [40] [45] 0. 9 1. 2 1. 5 1. 8Impact value, J/cm2 Hardness, HRB Angle of cooling plate, deg. Hardness Impact value Fig. 3. Hardness and impact value of semi-solid cast iron as a function of cooling plate angle.
