Processing and Properties of Al Based Amorphous/Crystalline Alloy Composites

Abstract:

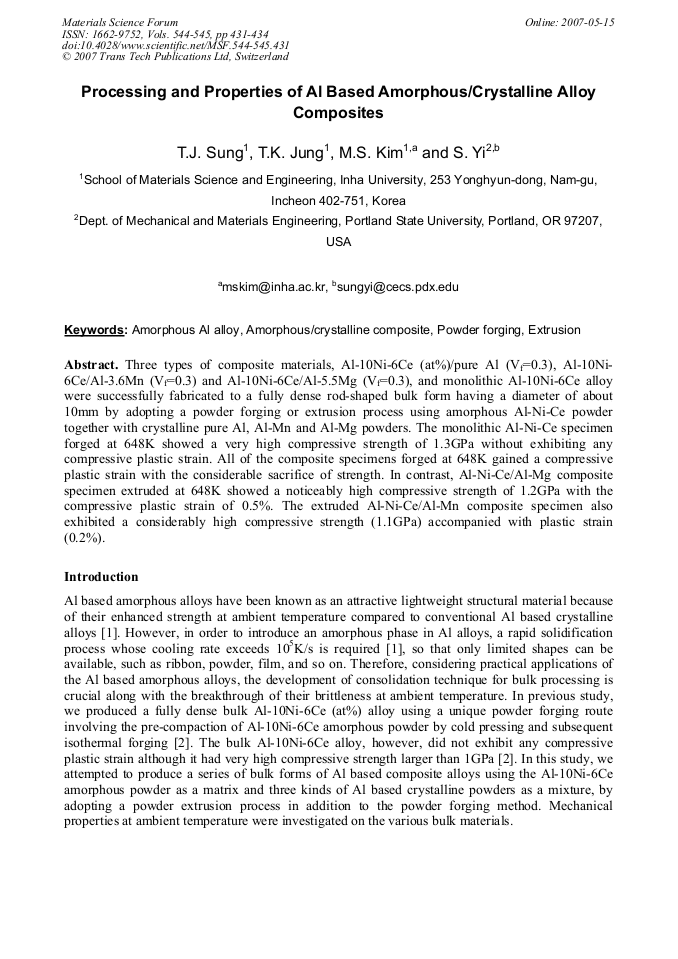

Article Preview

Three types of composite materials, Al-10Ni-6Ce (at%)/pure Al (Vf=0.3), Al-10Ni- 6Ce/Al-3.6Mn (Vf=0.3) and Al-10Ni-6Ce/Al-5.5Mg (Vf=0.3), and monolithic Al-10Ni-6Ce alloy were successfully fabricated to a fully dense rod-shaped bulk form having a diameter of about 10mm by adopting a powder forging or extrusion process using amorphous Al-Ni-Ce powder together with crystalline pure Al, Al-Mn and Al-Mg powders. The monolithic Al-Ni-Ce specimen forged at 648K showed a very high compressive strength of 1.3GPa without exhibiting any compressive plastic strain. All of the composite specimens forged at 648K gained a compressive plastic strain with the considerable sacrifice of strength. In contrast, Al-Ni-Ce/Al-Mg composite specimen extruded at 648K showed a noticeably high compressive strength of 1.2GPa with the compressive plastic strain of 0.5%. The extruded Al-Ni-Ce/Al-Mn composite specimen also exhibited a considerably high compressive strength (1.1GPa) accompanied with plastic strain (0.2%).

Info:

Periodical:

Materials Science Forum (Volumes 544-545)

Edited by:

Hyungsun Kim, Junichi Hojo and Soo Wohn Lee

Pages:

431-434

Citation:

T.J. Sung et al., "Processing and Properties of Al Based Amorphous/Crystalline Alloy Composites", Materials Science Forum, Vols. 544-545, pp. 431-434, 2007

Online since:

May 2007

Export:

Price:

$38.00

[1] A. Inoue: Prog. Mater. Sci. Vol. 43 (1998), p.365.

[2] S.J. Noh, T.K. Jung and M.S. Kim: Mater. Sci. Forum Vols. 475-479 (2005), p.3493.

[3] S.J. Noh, T.K. Jung and M.S. Kim: Mater. Sci. Forum Vols. 510-511 (2006), p.830 Fig. 5 Maximum compressive strength and compressive plastic strain for the bulk specimens forged at 648K (a) and extruded at 648K (b).
