Nano-Al2O3 Reinforced Fe-Cr-Ni Composites Fabricated by Reactive Hot Pressing


Article Preview

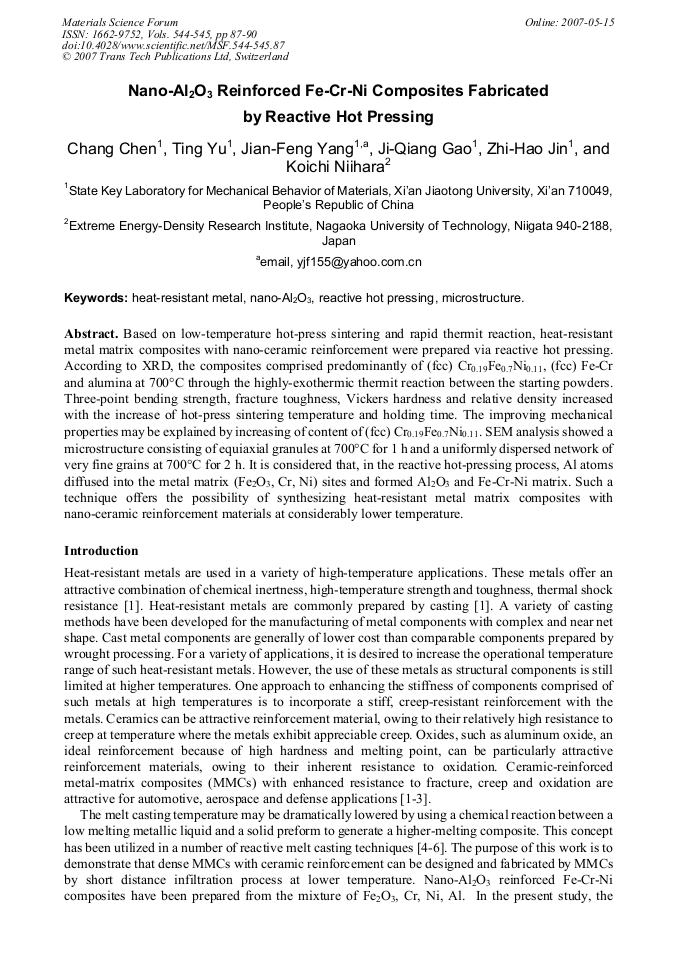

Based on low-temperature hot-press sintering and rapid thermit reaction, heat-resistant metal matrix composites with nano-ceramic reinforcement were prepared via reactive hot pressing. According to XRD, the composites comprised predominantly of (fcc) Cr0.19Fe0.7Ni0.11, (fcc) Fe-Cr and alumina at 700°C through the highly-exothermic thermit reaction between the starting powders. Three-point bending strength, fracture toughness, Vickers hardness and relative density increased with the increase of hot-press sintering temperature and holding time. The improving mechanical properties may be explained by increasing of content of (fcc) Cr0.19Fe0.7Ni0.11. SEM analysis showed a microstructure consisting of equiaxial granules at 700°C for 1 h and a uniformly dispersed network of very fine grains at 700°C for 2 h. It is considered that, in the reactive hot-pressing process, Al atoms diffused into the metal matrix (Fe2O3, Cr, Ni) sites and formed Al2O3 and Fe-Cr-Ni matrix. Such a technique offers the possibility of synthesizing heat-resistant metal matrix composites with nano-ceramic reinforcement materials at considerably lower temperature.



Materials Science Forum (Volumes 544-545)

Edited by:

Hyungsun Kim, Junichi Hojo and Soo Wohn Lee




C. Chen et al., "Nano-Al2O3 Reinforced Fe-Cr-Ni Composites Fabricated by Reactive Hot Pressing ", Materials Science Forum, Vols. 544-545, pp. 87-90, 2007

Online since:

May 2007




[1] Metal Handbook, Ninth Edition, Vol. 3, American Society for Metals Park, OH, pp, 207-284, (1980).

[2] J. Roesler, M. Baker, A theoretical concept for the design of high-temperature materials by dual-scale particle strengthening, Acta Mater. 48 (2000) 3553.


[3] S Reichman, D.S. Chang, in: C.T. Sims, N.S. Stoloff, W.C. Hagel (Eds. ), Superalloys II, Wiley and Sons, New York, 1987, p.459.

[4] D.C. Dunand, J.L. Sommer, A. Mortensen, Metall. Trans. 24A (1993) 2161.

[5] L. Hozer, Y.M. Chiang, J. Mater. Res. 11 (1991) 2346.

[6] M.B. Dickerson, R.L. Snyder, K.H. Sandhage, Ceram. Eng. Sci. Proc. 22 (4) (2001) 97.

[7] K.H. Sandhage, N. Claussen, in: S. Somiya (Ed. ), Handbook of Advanced Ceramic Science and Processing, Academic Press, San Diego, CA, (2002).

[8] F. Wagner, D.E. Garcia, A. Krupp, N. Claussen, J. Eur. Ceram. Soc. 19 (1999) 2449.

[9] G. J. Zhang, X. M. Yue, Z. Z. Jin, and J. Y. Dai, In-Situ Synthesized TiB2 Toughened SiC, J. Eur. Ceram. Soc., 16, 409-12 (1996).

[10] K. Niihara, New Design Concept of Structural Ceramics-Ceramic Nanocomposite, J. Ceram. Soc. Jpn., 99, 974-82 (1991).

[11] N. Claussen, S. Wu, and D. Holz, Reaction Bonding of Aluminum Oxide (RBAO) Composites: Processing, Reaction Mechanisms and Properties, J. Eur. Ceram. Soc., 14, 97-109 (1994).
