Thick-Film CO2 Sensors Based on NASICON Synthesized by a Sol-Gel Process

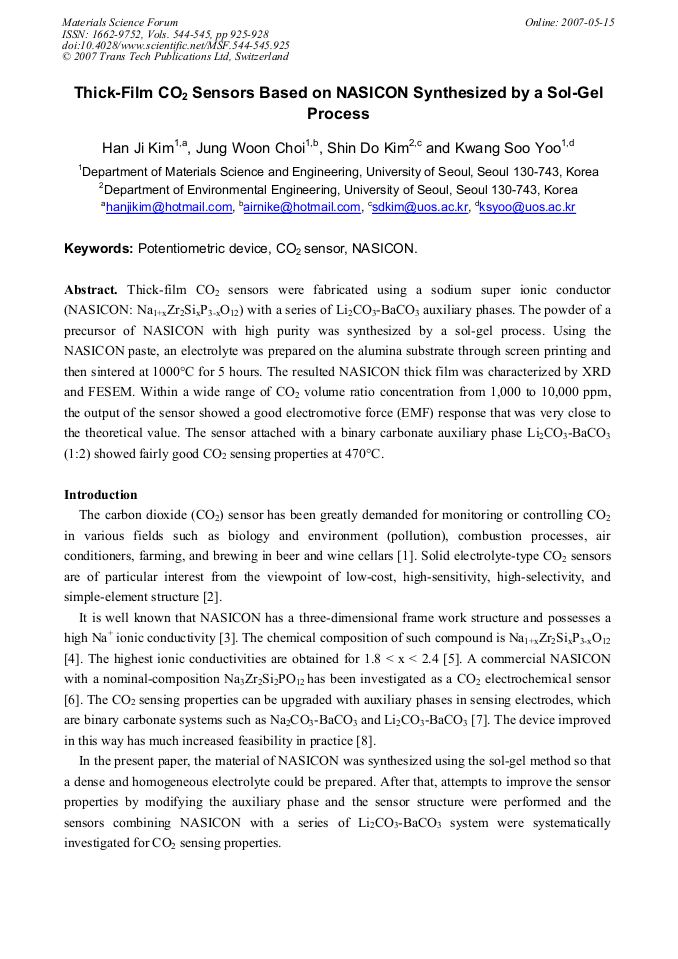

Article Preview

Thick-film CO2 sensors were fabricated using a sodium super ionic conductor (NASICON: Na1+xZr2SixP3-xO12) with a series of Li2CO3-BaCO3 auxiliary phases. The powder of a precursor of NASICON with high purity was synthesized by a sol-gel process. Using the NASICON paste, an electrolyte was prepared on the alumina substrate through screen printing and then sintered at 1000°C for 5 hours. The resulted NASICON thick film was characterized by XRD and FESEM. Within a wide range of CO2 volume ratio concentration from 1,000 to 10,000 ppm, the output of the sensor showed a good electromotive force (EMF) response that was very close to the theoretical value. The sensor attached with a binary carbonate auxiliary phase Li2CO3-BaCO3 (1:2) showed fairly good CO2 sensing properties at 470°C.



Materials Science Forum (Volumes 544-545)

Edited by:

Hyungsun Kim, Junichi Hojo and Soo Wohn Lee




H. J. Kim et al., "Thick-Film CO2 Sensors Based on NASICON Synthesized by a Sol-Gel Process", Materials Science Forum, Vols. 544-545, pp. 925-928, 2007

Online since:

May 2007




[1] J. R. Salgado and P. Fabry: Solid State Ionics Vol. 94 (1997), p.217.

[2] F. Qiu, L. Sun, X. Li, M. Hirata, H. Suo and B. Xu: Sens. Actuators B Vol. 45 (1997), p.233.

[3] S. Zhang, B. Quan, Z. Zhao, B. Zhao, Y. He and W. Chen: Mater. Letters Vol. 58 (2003), p.226.

[4] S. A. Dorneanu, I. C. Popescu, and P. Fabry: Sens. Actuators B Vol. 91 (2003) p.67.

[5] E. Traversa, H. Aono, Y. Sadaoka and L. Montanaro: Sens. Actuators B Vol. 65 (2000), p.204.

[6] T. Kida, Y. Miyachi, K. Shimanoe, N. Yamazoe: Sens. Actuators B, Vol. 80 (2001), p.28.

[7] Y. Shimizu and N. Yamashita: Sens. Actuators B, Vol. 64 (2000), p.102.

[8] T. Kida, H. Kawate, K. Shimanoe, N. Miura and N. Yamazoe: Solid State Ionics Vol. 136 (2000), p.647.

[9] Y. Shimizu, Y. Azuma and S. Michishita: J. Mater. Chem. Vol. 7 (1997), p.1487.

[10] F. Qiu, Q. Zhu, X. Yang, Y. Quan and L. Sun: Sens. Actuators B Vol. 93 (2003), p.237.

[11] K. Obata, S. Kumazawa and S. Matsushima: Sens. Actuators B Vol. 108 (2005), p.352.

[12] E. D. Bartolomeo, E. Traversa, L. Montanaro, H. Aono and Y. Sadaoka: J. Sol-gel Sci. and Tech. Vol. 19 (2000), p.181.
