Characteristics of Fluorine-Doped Tin Oxide Thin Films on Poly Ethylene Terephthalate (PET) Substrate

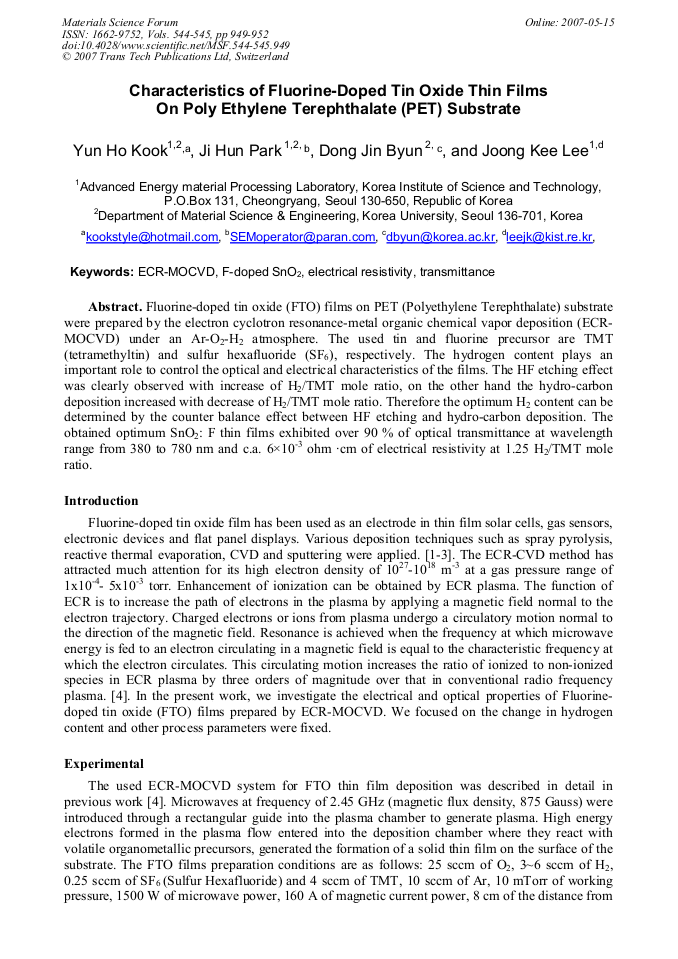

Article Preview

Fluorine-doped tin oxide (FTO) films on PET (Polyethylene Terephthalate) substrate were prepared by the electron cyclotron resonance-metal organic chemical vapor deposition (ECRMOCVD) under an Ar-O2-H2 atmosphere. The used tin and fluorine precursor are TMT (tetramethyltin) and sulfur hexafluoride (SF6), respectively. The hydrogen content plays an important role to control the optical and electrical characteristics of the films. The HF etching effect was clearly observed with increase of H2/TMT mole ratio, on the other hand the hydro-carbon deposition increased with decrease of H2/TMT mole ratio. Therefore the optimum H2 content can be determined by the counter balance effect between HF etching and hydro-carbon deposition. The obtained optimum SnO2: F thin films exhibited over 90 % of optical transmittance at wavelength range from 380 to 780 nm and c.a. 6×10-3 ohm ·cm of electrical resistivity at 1.25 H2/TMT mole ratio.



Materials Science Forum (Volumes 544-545)

Edited by:

Hyungsun Kim, Junichi Hojo and Soo Wohn Lee




Y. H. Kook et al., "Characteristics of Fluorine-Doped Tin Oxide Thin Films on Poly Ethylene Terephthalate (PET) Substrate", Materials Science Forum, Vols. 544-545, pp. 949-952, 2007

Online since:

May 2007




[1] C.G. Borman, R.G. Gordon, J. Electrochem. Soc. 136 (1989) 3820.

[2] R.G. Gordon, Thin films for photovoltaic and related device applications, in: D. Ginley, A. Catalano, H.W. Schock, C. Eberspacher, T.M. Peterson, T. Wada (Eds. ), Proceedings of the Materials Research Society Symposium 426, Materials Research Society, Pittsburgh, PA, 1996, p.419.

[3] A. Martel, F. Caballero-Briones, P. Bartolo-Pe´rez, A. Iribarren, R. Castro-Rodr´ıguez, A. Zapata-Navarro, J.L. Pen Surface and Coatings Technology 148 (2001) 103-109.

DOI: 10.1016/s0257-8972(01)01351-2

[4] J. K. Lee, B. Jeon, S. Lee, Material Science Forum, 510-511(2006)666. Fig. 5. Effect of H2/TMT mole ratio on transmittance and electrical resistivity of deposited SnOx: F films.
