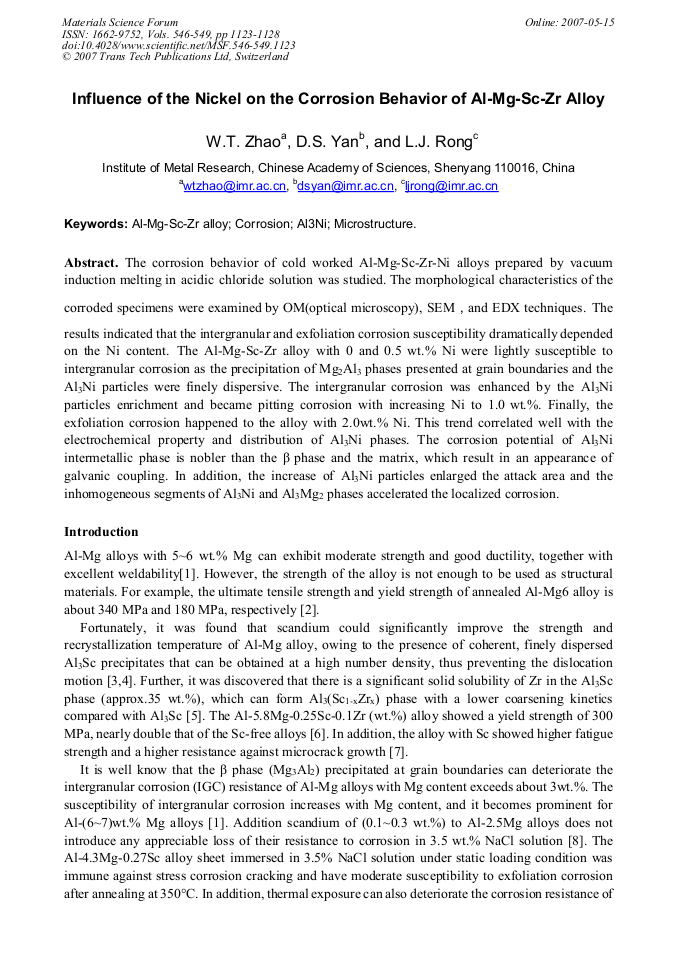

Influence of the Nickel on the Corrosion Behavior of Al-Mg-Sc-Zr Alloy


Article Preview

The corrosion behavior of cold worked Al-Mg-Sc-Zr-Ni alloys prepared by vacuum induction melting in acidic chloride solution was studied. The morphological characteristics of the corroded specimens were examined by OM(optical microscopy), SEMand EDX techniques. The results indicated that the intergranular and exfoliation corrosion susceptibility dramatically depended on the Ni content. The Al-Mg-Sc-Zr alloy with 0 and 0.5 wt.% Ni were lightly susceptible to intergranular corrosion as the precipitation of Mg2Al3 phases presented at grain boundaries and the Al3Ni particles were finely dispersive. The intergranular corrosion was enhanced by the Al3Ni particles enrichment and became pitting corrosion with increasing Ni to 1.0 wt.%. Finally, the exfoliation corrosion happened to the alloy with 2.0wt.% Ni. This trend correlated well with the electrochemical property and distribution of Al3Ni phases. The corrosion potential of Al3Ni intermetallic phase is nobler than the β phase and the matrix, which result in an appearance of galvanic coupling. In addition, the increase of Al3Ni particles enlarged the attack area and the inhomogeneous segments of Al3Ni and Al3Mg2 phases accelerated the localized corrosion.



Materials Science Forum (Volumes 546-549)

Edited by:

Yafang Han et al.




W.T. Zhao et al., "Influence of the Nickel on the Corrosion Behavior of Al-Mg-Sc-Zr Alloy", Materials Science Forum, Vols. 546-549, pp. 1123-1128, 2007

Online since:

May 2007




[1] L.F. Mondolfo: Aluminum Alloys: Structure and Properties, Butterworth group Publications, (1976).

[2] Y.A. Filatov, V.I. Yelagin and V.V. Zakharov: Materials Science and Engineering Vol. A280 (2000), p.97.

[3] L.A. Willey, US Patent 3619181 (1971).

[4] Y.V. Milman, D.V. Lotsko and O.I. Sirko: Materials Science Forum Vol. 331-337(2000), p.1107.

DOI: 10.4028/

[5] J. Røyset and N. Ryum: International Materials Reviews Vol. 50 (2005), p.19.

[6] V.V. Zakharov; Metal Science and Heat Treatment Vol. 45 (2003), p.246.

[7] O. Roder, T. Wirtz, A. Gysler and G. Lütjering: Materials Science and Engineering Vol. A234-236 (1997), p.181.

[8] Z. Ahmad, A. Ul-Hamid and B.J. Abdul-Aleem: Corrosion Science Vol. 43 (2001), p.1227.

[9] R. Braun, B. Lenczowski and G. Tempus: Materials Science Forum Vol. 331-337(2000) p.1647.

[10] Y. Sakamoto , N. Kazita , S. Sanuki , T. Mae , H. Notoya and K. Arai: Journal of the Japan Institute of Metals Vol. 63 (10)(1999), p.1348.

[11] Y. Sakamoto , T. Mae , S. Sanuki , H. Notoya and K. Arai: Journal of the Japan Institute of Metals Vol. 62 (5)(1998) p.436.

[12] D.J. Kelly and M.J. Robinson: Corrosion Science, Vol. 49 (10)(1993), p.787 Fig. 7 Back scattered image of the Al3Ni phases in the Al-Mg-Sc-Zr-2. 0%Ni alloy (parallel to the cold working direction).
