Development of a τ-Type Mg-Zn-Al Alloy: An Investigation of the Microstructure and Solidification Characteristics

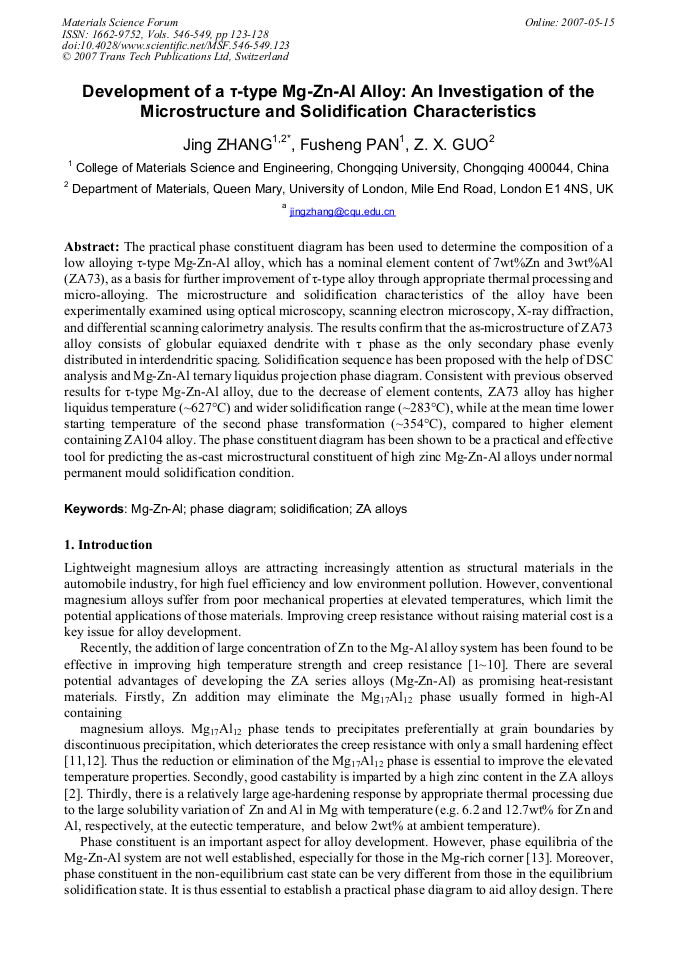

Article Preview

The practical phase constituent diagram has been used to determine the composition of a low alloying τ-type Mg-Zn-Al alloy, which has a nominal element content of 7wt%Zn and 3wt%Al (ZA73), as a basis for further improvement of τ-type alloy through appropriate thermal processing and micro-alloying. The microstructure and solidification characteristics of the alloy have been experimentally examined using optical microscopy, scanning electron microscopy, X-ray diffraction, and differential scanning calorimetry analysis. The results confirm that the as-microstructure of ZA73 alloy consists of globular equiaxed dendrite with τ phase as the only secondary phase evenly distributed in interdendritic spacing. Solidification sequence has been proposed with the help of DSC analysis and Mg-Zn-Al ternary liquidus projection phase diagram. Consistent with previous observed results for τ-type Mg-Zn-Al alloy, due to the decrease of element contents, ZA73 alloy has higher liquidus temperature (~627°C) and wider solidification range (~283°C), while at the mean time lower starting temperature of the second phase transformation (~354°C), compared to higher element containing ZA104 alloy. The phase constituent diagram has been shown to be a practical and effective tool for predicting the as-cast microstructural constituent of high zinc Mg-Zn-Al alloys under normal permanent mould solidification condition.



Materials Science Forum (Volumes 546-549)

Edited by:

Yafang Han et al.




J. Zhang et al., "Development of a τ-Type Mg-Zn-Al Alloy: An Investigation of the Microstructure and Solidification Characteristics", Materials Science Forum, Vols. 546-549, pp. 123-128, 2007

Online since:

May 2007




[3] Zhang Z, Tremblay R, Dube D. Materials Science and Engineering A, 2004, 385: 286-291.

[4] Zhang Z, Tremblay R, Dube D, Couture A. Canadian Metallurgical Quarterly, 2000, 39(4): 503-512.

[5] Mendis C, Bourgeois L, Muddle B, Nie J F. Magnesium Technology 2003, 2003 TMS Annual Meeting, San Diego, CA, USA, 2-6 March 2003. 183-188.

[6] Vogel M, Kraft O, Arzt E. Scripta Materialia, 2003, 48: 985-990.

[7] Luo A, Shinoda T. J Mater Manufactory, 1998, 107: 86-94.

[8] Anyanwu I A, Kamado S, Honda T, etc. Materials Science Forum, 2000, 350-351: 73-78.

[9] Zhang J, Guo Z X, Li Z S, Pan F S. Effect of Compositions on the Microstructures and Mechanical Properties of Mg-Zn-Al Alloys. Submitted for publication.

[10] Zhang J, Li Z S, Guo Z X, Pan F S. Transactions of Nonferrous Metals Society of China, 2006, 16(2): 452-458.

[11] Nie J F. Scripta Materialia, 2003, 48: 1009-1015.

[12] Luo A A, Balogh M P, Powell B R. Metall Mater Trans A, 2002, 33A: 567.

[13] Liang H, Chen S L, Chang Y A. Metallurgical and Materials Transactions A, 1997, 28A: 1725-1734.

[14] Zhang M X, Kelly P M. Acta Materialia, 2005, 53: 1085-1096.

[15] Petrov D V. Aluminum-Magnesium-Zinc. Petzow G, Effenberg G. Ternary Alloys: A comprehensive compendium of evaluated constitutional data and phase diagrams: Vol. 7. Weinheim: VCM, 1993. 57-71.
