Microstructure Simulation of Magnesium Alloy

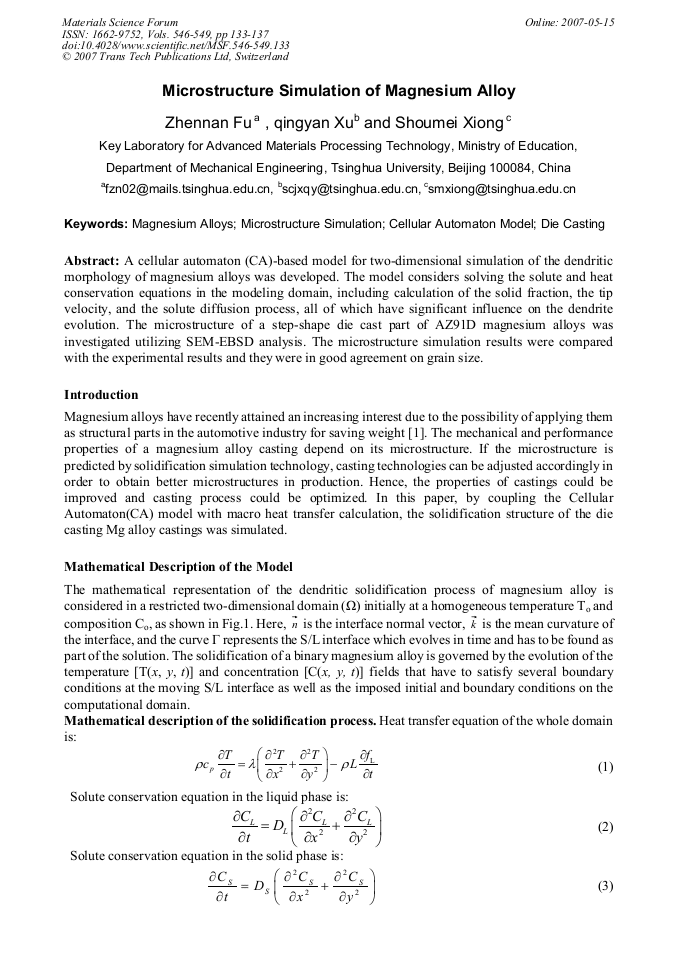

Article Preview

A cellular automaton (CA)-based model for two-dimensional simulation of the dendritic morphology of magnesium alloys was developed. The model considers solving the solute and heat conservation equations in the modeling domain, including calculation of the solid fraction, the tip velocity, and the solute diffusion process, all of which have significant influence on the dendrite evolution. The microstructure of a step-shape die cast part of AZ91D magnesium alloys was investigated utilizing SEM-EBSD analysis. The microstructure simulation results were compared with the experimental results and they were in good agreement on grain size.



Materials Science Forum (Volumes 546-549)

Edited by:

Yafang Han et al.




Z. N. Fu et al., "Microstructure Simulation of Magnesium Alloy", Materials Science Forum, Vols. 546-549, pp. 133-137, 2007

Online since:

May 2007




[1] A. Styczynski, C. H. Hartig, J. Bohlen and D. Letzig. Scripta Materialia Vol. 50(2004), p.943.

[2] P. H. Thévoz, J.L. Kesbiollex, M. Rappaz. Metall. Trans. Vol. 20A(1989), p.311.

[3] L. Nastac. Acta Metall, Vol. 47(1999), p.4253.

[4] L. Nastac, D.M. Stefanescu. Mater. Sci. Engng, Vol. 5(1997), p.391.
