Density of Ni-Co-Al Ternary Alloys in Liquid States Measured by a Modified Pycnometric Method

Abstract:

Article Preview

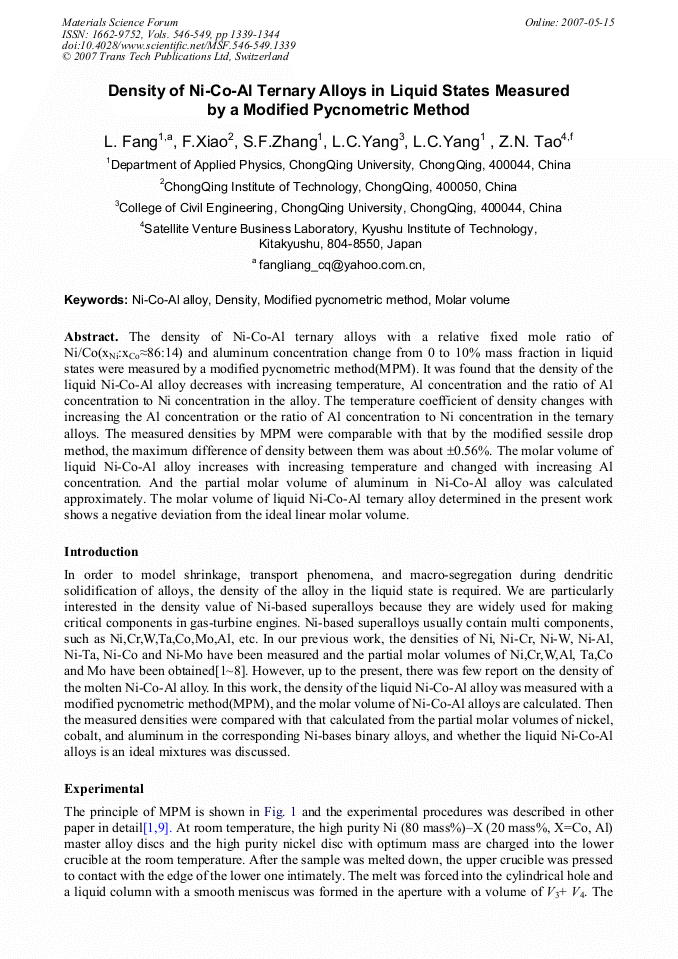

The density of Ni-Co-Al ternary alloys with a relative fixed mole ratio of Ni/Co(xNi:xCo≈86:14) and aluminum concentration change from 0 to 10% mass fraction in liquid states were measured by a modified pycnometric method(MPM). It was found that the density of the liquid Ni-Co-Al alloy decreases with increasing temperature, Al concentration and the ratio of Al concentration to Ni concentration in the alloy. The temperature coefficient of density changes with increasing the Al concentration or the ratio of Al concentration to Ni concentration in the ternary alloys. The measured densities by MPM were comparable with that by the modified sessile drop method, the maximum difference of density between them was about ±0.56%. The molar volume of liquid Ni-Co-Al alloy increases with increasing temperature and changed with increasing Al concentration. And the partial molar volume of aluminum in Ni-Co-Al alloy was calculated approximately. The molar volume of liquid Ni-Co-Al ternary alloy determined in the present work shows a negative deviation from the ideal linear molar volume.

Info:

Periodical:

Materials Science Forum (Volumes 546-549)

Edited by:

Yafang Han et al.

Pages:

1339-1344

Citation:

L. Fang et al., "Density of Ni-Co-Al Ternary Alloys in Liquid States Measured by a Modified Pycnometric Method", Materials Science Forum, Vols. 546-549, pp. 1339-1344, 2007

Online since:

May 2007

Export:

Price:

$38.00

[1] K. Mukai,F. Xiao, K. Nogi2 and Z. Li: : Mater. Trans, JIM. 45 (2004)2357.

[2] F. Xiao: J. Mater. Sci. Technol. 19(2003)16-18.

[3] L. Fang ,F. Xiao, Z.N. Tao: Rare Metal Mate. Eng. 33(4)(2004)521.

[4] L. Fang, Z. Li, Z.N. Tao and F. Xiao: J. Mater. Sci. Technol. 20(2004)287.

[5] L. Fang, F. Xiao: J. Mater. Sci. Technol. 20(2004)405.

[6] F. Xiao and L. Fang: J. Mater. Sci. Technol. 20(2004)410.

[7] L. Fang, F. Xiao, Z.N. Tao: J. WuHan Uni. Technol, Mater. Sci. Ed. 20(3)(2005)84.

[8] L. Fang, F. Xiao, Y.F. Wang et al.: submitted to Materials Science and Engineering B(2006).

[9] Y. Sato, T. Nishizuki, K. Hara, T. Yamamura et al: Inter. J. Thermophysics 21 (2000) 1463.

[10] H. Baker: Alloy Phase Diagrams, Metals Park, ASM, New York, 1992, 135.

[11] E.S. Levin and G.D. Ayushina: Russ. J. Phys. Chem. 45(1971) 792.

[12] H. Lee: Chemical Thermodynamics for Metals and Materials, Imperial College Press, London, 1999, 284.

[13] David R. Lide: CRC Handbook of Chem. and Phy., CRC Press, New York, 1997, 4-126, 129.
