A Novel Canning Technology for Forging of Gamma-TiAl Alloys

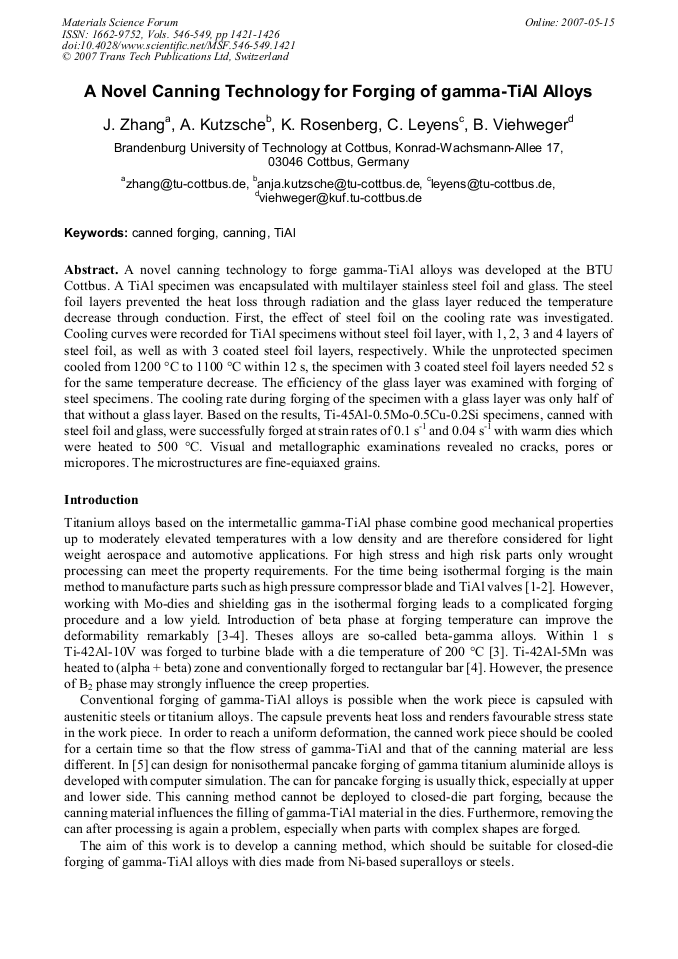

Article Preview

A novel canning technology to forge gamma-TiAl alloys was developed at the BTU Cottbus. A TiAl specimen was encapsulated with multilayer stainless steel foil and glass. The steel foil layers prevented the heat loss through radiation and the glass layer reduced the temperature decrease through conduction. First, the effect of steel foil on the cooling rate was investigated. Cooling curves were recorded for TiAl specimens without steel foil layer, with 1, 2, 3 and 4 layers of steel foil, as well as with 3 coated steel foil layers, respectively. While the unprotected specimen cooled from 1200 °C to 1100 °C within 12 s, the specimen with 3 coated steel foil layers needed 52 s for the same temperature decrease. The efficiency of the glass layer was examined with forging of steel specimens. The cooling rate during forging of the specimen with a glass layer was only half of that without a glass layer. Based on the results, Ti-45Al-0.5Mo-0.5Cu-0.2Si specimens, canned with steel foil and glass, were successfully forged at strain rates of 0.1 s-1 and 0.04 s-1 with warm dies which were heated to 500 °C. Visual and metallographic examinations revealed no cracks, pores or micropores. The microstructures are fine-equiaxed grains.



Materials Science Forum (Volumes 546-549)

Edited by:

Yafang Han et al.




J. Zhang et al., "A Novel Canning Technology for Forging of Gamma-TiAl Alloys", Materials Science Forum, Vols. 546-549, pp. 1421-1426, 2007

Online since:

May 2007




[1] F. Appel, U. Brossmann, U. Christoph, S. Eggert, P. Janschek, U. Lorenz, J. Müllauer, M. Oehring, J. D. H. Paul: Advanced Engineering Materials 2(2000), p.699.

DOI: https://doi.org/10.1002/1527-2648(200011)2:11<699::aid-adem699>3.3.co;2-a

[2] S. Knippscheer, G. Frommeyer, H. Baur, R. Joos, M. Lohmann, O. Berg, H. Kestler, N. Eberhardt, V. Güther, A. Otto: Materials for Transportation Technologies, edited by P.K. Winkler, Wiley-VCH, Weinheim, Germany, 2000, p.110.

DOI: https://doi.org/10.1002/3527606025.ch19

[3] T. Tetsui, K. Shindo, S. Kobayashi, M. Takeyama: Intermetallics 11(2003), p.299.

[4] T. Tetsui, K. Shindo, S. Kobayashi, M. Takeyama: Scripta Materialia 47 (2002), p.399.

[5] V.K. Jain, R.L. Goetz and S.L. Semiatin: Transactions of the ASME, Journal of Engineering for Industry 118 (1996), p.155.

[6] J. Zhang, A. Hüttig, K. Rosenberg, B. Viehweger, C. Leyens, German Patent 102005018658. (2005).

[7] R. Imayev, V. Imayev, A. Kuznetsov, M. Oehring, U. Lorenz and F. Appel, in Ti-2003, edited by G. Lütjering and J. Albrecht, Wiley-VCH, Weinheim, Germany, 2004, p.23179.

[8] S. L. Semiatin, V. Seetharaman, and I. Weiss: Mater. Sci. Eng. A 243 (1998). p.1.

[9] H. Clemens, H. Kestler, Adv. Eng. Mater. 2 (2000), p.551.

[10] F. Appel, M. Oehring and R. Wagner: Intermetallics 8 (2000), p.1283.

[11] X. D. Zhang, R. V. Ramanujan, T. A. Dean, R. Dewes, M. H. Jacobs and M. L. H. Wise in Titanium´92, edited by F. H. Froes and I. Caplan, The Minerals, Metals & Materials Society, 1993, p.1107.

[12] H. Baur, R. Joos and K. Lempenauer, BMBF research report, Semi-product, part production and part testing of TiAl motor components, 2000, in German.
