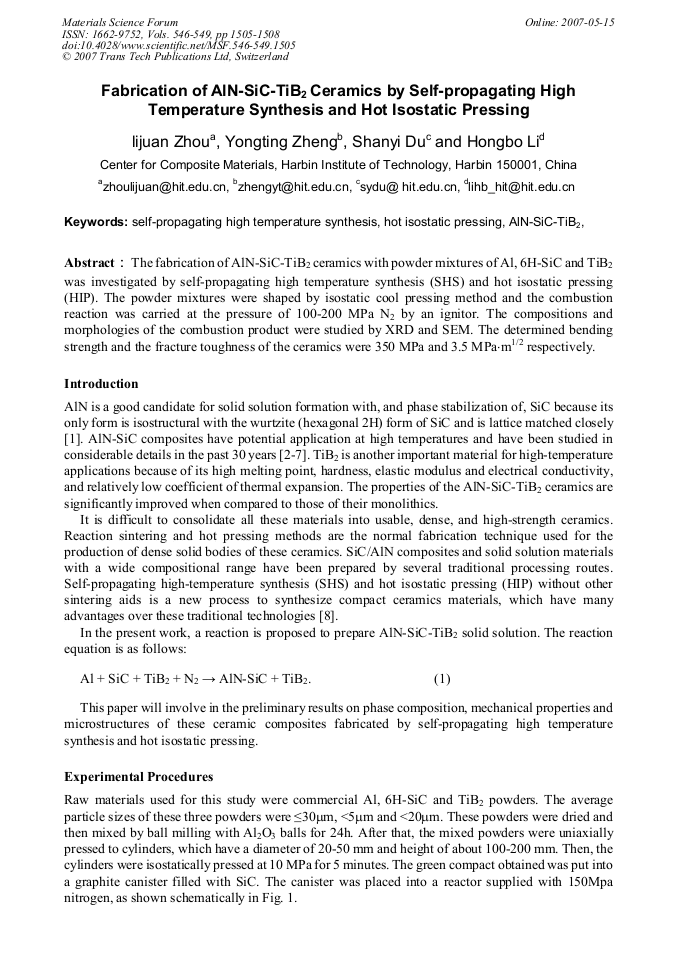

Fabrication of AlN-SiC-TiB2 Ceramics by Self-Propagating High Temperature Synthesis and Hot Isostatic Pressing
The fabrication of AlN-SiC-TiB2 ceramics with powder mixtures of Al, 6H-SiC and TiB2 was investigated by self-propagating high temperature synthesis (SHS) and hot isostatic pressing (HIP). The powder mixtures were shaped by isostatic cool pressing method and the combustion reaction was carried at the pressure of 100-200 MPa N2 by an ignitor. The compositions and morphologies of the combustion product were studied by XRD and SEM. The determined bending strength and the fracture toughness of the ceramics were 350 MPa and 3.5 MPa⋅m1/2 respectively.
Yafang Han et al.
L. J. Zhou et al., "Fabrication of AlN-SiC-TiB2 Ceramics by Self-Propagating High Temperature Synthesis and Hot Isostatic Pressing", Materials Science Forum, Vols. 546-549, pp. 1505-1508, 2007
