Development of Ag-Sheathed Bi2223 Tapes with Interfilamentary Resistive Barriers for Reducing AC Losses


Article Preview

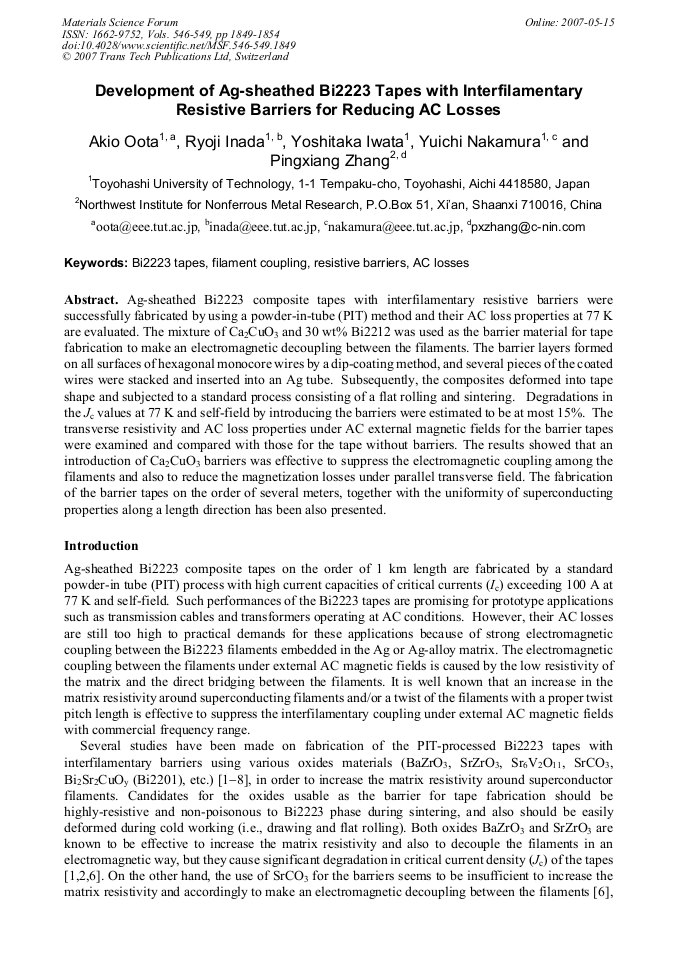

Ag-sheathed Bi2223 composite tapes with interfilamentary resistive barriers were successfully fabricated by using a powder-in-tube (PIT) method and their AC loss properties at 77 K are evaluated. The mixture of Ca2CuO3 and 30 wt% Bi2212 was used as the barrier material for tape fabrication to make an electromagnetic decoupling between the filaments. The barrier layers formed on all surfaces of hexagonal monocore wires by a dip-coating method, and several pieces of the coated wires were stacked and inserted into an Ag tube. Subsequently, the composites deformed into tape shape and subjected to a standard process consisting of a flat rolling and sintering. Degradations in the Jc values at 77 K and self-field by introducing the barriers were estimated to be at most 15%. The transverse resistivity and AC loss properties under AC external magnetic fields for the barrier tapes were examined and compared with those for the tape without barriers. The results showed that an introduction of Ca2CuO3 barriers was effective to suppress the electromagnetic coupling among the filaments and also to reduce the magnetization losses under parallel transverse field. The fabrication of the barrier tapes on the order of several meters, together with the uniformity of superconducting properties along a length direction has been also presented.



Materials Science Forum (Volumes 546-549)

Edited by:

Yafang Han et al.




A. Oota et al., "Development of Ag-Sheathed Bi2223 Tapes with Interfilamentary Resistive Barriers for Reducing AC Losses", Materials Science Forum, Vols. 546-549, pp. 1849-1854, 2007

Online since:

May 2007




[1] K. Kwasnitza, St. Clerk, R. Flükiger, Y.B. Huang: Physica C 299 (1998), p.113.

[2] M. Dhallé, A. Polcari, F. Marti, G. Witz, Y. B. Huang, R. Flükiger, St. Clerc, K. Kwasnitza, Physica C 310 (1998), p.127.


[3] G. Witz, M. Dhallé, R. Passerini, X. -D. Su, Y.B. Huang, A. Erb, R. Flükiger: Cryogenics 41 (2001), p.97.


[4] P.X. Zhang, R. Inada, Y. Takatori, A. Oota, H. Fujimoto, P. Ji, Z.Z. Duan, C.S. Li, H.L. Zheng, L. Zhou: IEEE Trans. Appl. Supercond. 11 (2001), p.2784.


[5] H. Maeda, T. Inaba, M. Sato, P.X. Zhang, W.P. Chen: Physica C 357-360 (2001), p.1230.

[6] R. Nast, H. Eckelmann, O. Zabara, S.I. Schlachter, W. Goldacker: Physica C 372-376 (2002), p.1777.

[7] N. Ayai, E. Ueno, K. Hayashi, K. Sato, K. Yasuda: Physica C 392-396 (2003), p.1003.

[8] N. Ayai, K. Hayashi, K. Yasuda: IEEE Trans. Appl. Supercond 15 (2005). P. 2510.

[9] P.X. Zhang, A. Oota, R. Inada, T. Uno, T. Yamamoto, Y. Takatori, K. Fukuyama, H. Fujimoto, L. Zhou: Physica C 357-360 (2001), p.1222.


[10] N. Amemiya, O. Tsukamoto, M. Torii, M. Ciszek, H. Kawasaki, E. Mizushima, S. Ishii, N. Ayai, K. Hayashi, M. Ueyama: IEEE Trans. Appl. Supercond. 10 (2000), p.1204.


[11] J.J. Rabbers, D.C. van der Laan, B. ten Haken, H. J. ten Kate: IEEE Trans. Appl. Supercond. 9 (1999), p.1185.

[12] S. Yamamura, M. Sugahara, O. Tsukamoto, M. Yamaguchi, M. Yamamoto: Superconductor Engineering (in Japanese), The Institute of Electrical Engineers of Japan (1988), p.132.
