Mechanical Properties of Mg-8Zn-4Al-xCa Extruded Magnesium Alloy Tube at Elevated Temperature

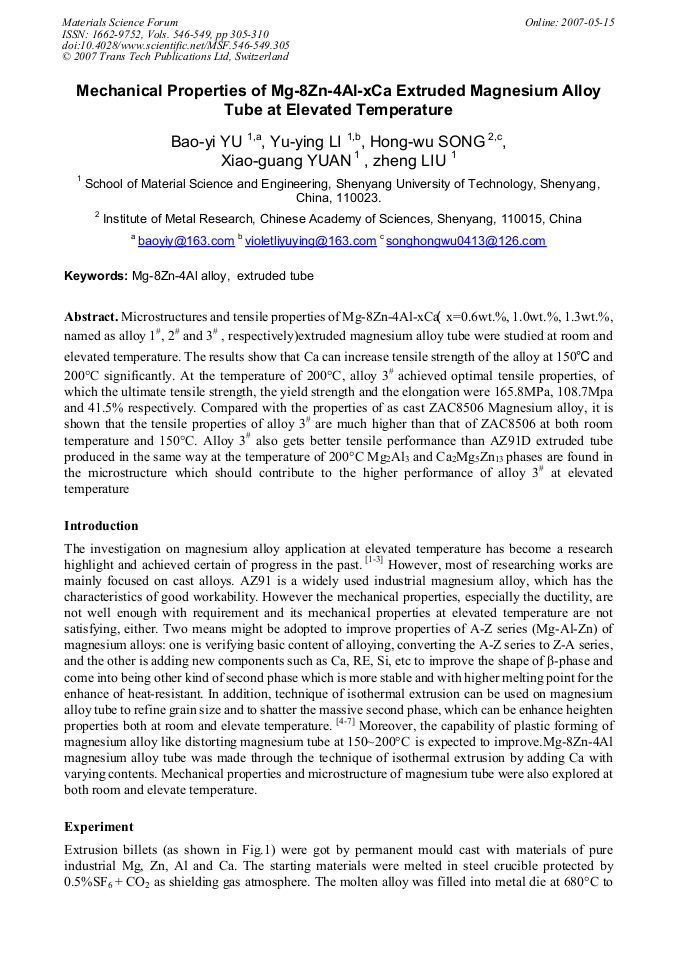

Article Preview

Microstructures and tensile properties of Mg-8Zn-4Al-xCax=0.6wt.%, 1.0wt.%, 1.3wt.%, named as alloy 1#, 2# and 3# , respectively)extruded magnesium alloy tube were studied at room and elevated temperature. The results show that Ca can increase tensile strength of the alloy at 150 and 200°C significantly. At the temperature of 200°C, alloy 3# achieved optimal tensile properties, of which the ultimate tensile strength, the yield strength and the elongation were 165.8MPa, 108.7Mpa and 41.5% respectively. Compared with the properties of as cast ZAC8506 Magnesium alloy, it is shown that the tensile properties of alloy 3# are much higher than that of ZAC8506 at both room temperature and 150°C. Alloy 3# also gets better tensile performance than AZ91D extruded tube produced in the same way at the temperature of 200°C Mg2Al3 and Ca2Mg5Zn13 phases are found in the microstructure which should contribute to the higher performance of alloy 3# at elevated temperature



Materials Science Forum (Volumes 546-549)

Edited by:

Yafang Han et al.




B. Y. Yu et al., "Mechanical Properties of Mg-8Zn-4Al-xCa Extruded Magnesium Alloy Tube at Elevated Temperature", Materials Science Forum, Vols. 546-549, pp. 305-310, 2007

Online since:

May 2007




[1] Wu Guo-hua, Fan Yu, Gao Hong-tao, et al: Materials Science and Engineering A 408 (2005), p.255.

[2] Zhan Zhang, Alain Couture , Scripta Materialia Vol. 39 (1998), p.45.

[3] YUAN Guang-yin, SUN Yang-shan, et al:. Trans. Nonferrous Met. Soc. China Vol. 10 (2000), p.469.

[4] Wang Ying-xin, Guan Shao-kang, Wang Jian-qing: The Chinese Journal of Nonferrous Metals Vol. 13 (2003), p.616.

[5] Kaikun Wang, Yonglin Kang, Kui Zhang: Materials Vol. 9 (2002), p.363.

[6] Yuanyuan Li, Datong Zhang, et al: Materials Vol. 9 (2002), p.352.

[7] Kinji Hiraia, Hidetoshi Somekawab, Yorinobu Takigawa et al: Materials Science and Engineering A 403 (2005), p.276.
