Texture Evolution in Rolled Mg-13wt%Li-X Alloy

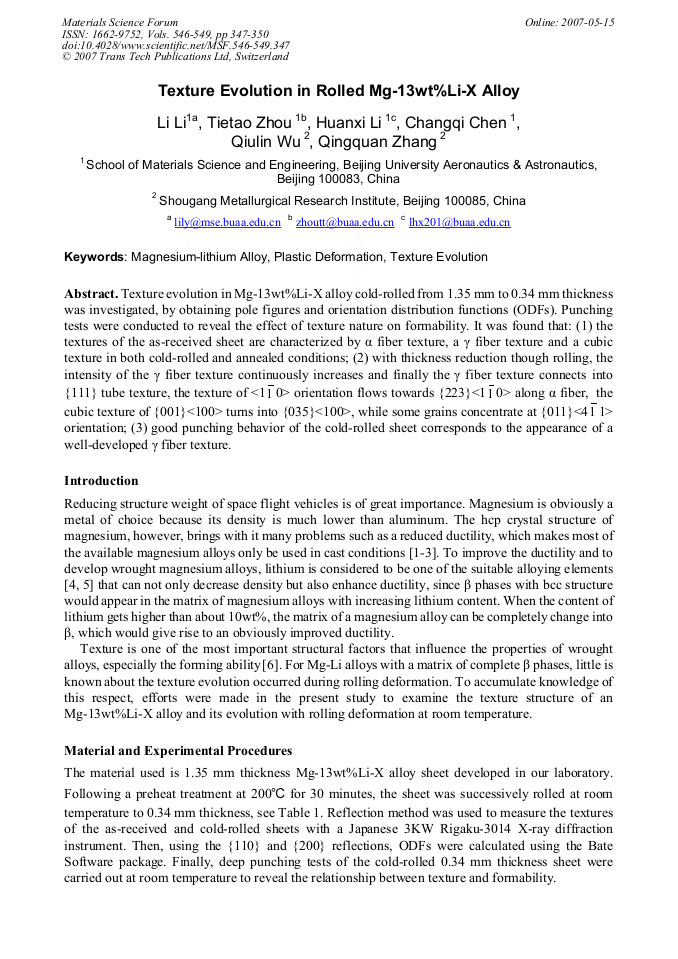

Article Preview

Texture evolution in Mg-13wt%Li-X alloy cold-rolled from 1.35 mm to 0.34 mm thickness was investigated, by obtaining pole figures and orientation distribution functions (ODFs). Punching tests were conducted to reveal the effect of texture nature on formability. It was found that: (1) the textures of the as-received sheet are characterized by α fiber texture, a γ fiber texture and a cubic texture in both cold-rolled and annealed conditions; (2) with thickness reduction though rolling, the intensity of the γ fiber texture continuously increases and finally the γ fiber texture connects into {111} tube texture, the texture of <11 0> orientation flows towards {223}<11 0> along α fiber, the cubic texture of {001}<100> turns into {035}<100>, while some grains concentrate at {011}<41 1> orientation; (3) good punching behavior of the cold-rolled sheet corresponds to the appearance of a well-developed γ fiber texture.



Materials Science Forum (Volumes 546-549)

Edited by:

Yafang Han et al.




L. Li et al., "Texture Evolution in Rolled Mg-13wt%Li-X Alloy", Materials Science Forum, Vols. 546-549, pp. 347-350, 2007

Online since:

May 2007




[1] F.H. Froes: Magnesium 2000/proceeding of 2nd Israeli international conference on magnesium science & amp technology (2000), p.22.

[2] R.L. Edgar and K.V. Kainer : Magnesium alloys and their applications ( Munich Publications, Germany 2000), p.3.

[3] S. Schumann and H. Friedrich: Mater. Sci. Forum. Vol. 419-422(2003), p.51.

[4] T. Uesugi, M. Kohyama, M. Kkohzu and K. Higashi: Mater. Sci. Forum. Vol. 350-351(2000), p.49.

[5] Feng Linping: Deformation behavior and microstructure of Mg-13Li-X Alloy (Beijing University of Aeronautics and Astronautics, China 2005).

[6] H.R. Wenk, I. Lonardelli and D. Williams: Acta Materialia. Vol. 52 (2004), p.1899.

[7] M.Y. Huh and O. Engler: Materials Science and Engineering A. Vol. 308 (2001), p.74.

[8] J. Hirsch and K. Lucke: Acta metal. Vol. 36 (1988-11), p.2863.

[9] Y. Hwang and G. Tzhou: Internaional Journal of Mechanical Sciences. Vol. 39 (1997-3), p.289.
