Phase Analysis of Al-Mn Compounds in the AZ Magnesium Alloys

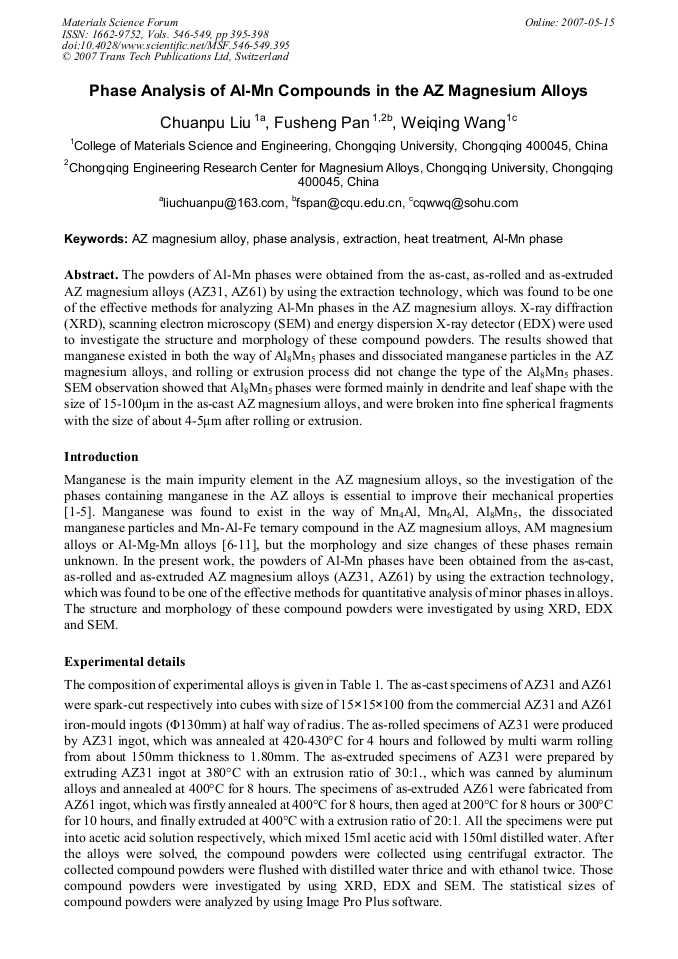

Article Preview

The powders of Al-Mn phases were obtained from the as-cast, as-rolled and as-extruded AZ magnesium alloys (AZ31, AZ61) by using the extraction technology, which was found to be one of the effective methods for analyzing Al-Mn phases in the AZ magnesium alloys. X-ray diffraction (XRD), scanning electron microscopy (SEM) and energy dispersion X-ray detector (EDX) were used to investigate the structure and morphology of these compound powders. The results showed that manganese existed in both the way of Al8Mn5 phases and dissociated manganese particles in the AZ magnesium alloys, and rolling or extrusion process did not change the type of the Al8Mn5 phases. SEM observation showed that Al8Mn5 phases were formed mainly in dendrite and leaf shape with the size of 15-100μm in the as-cast AZ magnesium alloys, and were broken into fine spherical fragments with the size of about 4-5μm after rolling or extrusion.



Materials Science Forum (Volumes 546-549)

Edited by:

Yafang Han et al.




C. P. Liu et al., "Phase Analysis of Al-Mn Compounds in the AZ Magnesium Alloys", Materials Science Forum, Vols. 546-549, pp. 395-398, 2007

Online since:

May 2007




[1] K. Osamura, H. Adachi and T. Sorano: JOM, Vol 56, (2004), p.288.

[2] R.M. Wang, A. Eliezer and E.M. Gutman: Materials Science and Engineering A, Vol. 355, 2003, pp.201-207.

[3] Y.Y. Authors, L. Cisar and T. Sekine: Vol. 68, 2004, pp.412-417.

[4] K. Okuda and Y. Takeno: Progress of Machining Technology - Proceedings of the Seventh International Conference on Progress of Machining Technology, ICPMT'2004, pp.209-214.

[5] S. Spigarelli and M. Cabbibo: JOM, Vol 56, (2004), p.106.

[6] X-F. Tian, Z-T. Fan and N-Y. Huang: Transactions of Nonferrous Metals Society of China (English Edition), : Vol 15, (2005), pp.7-13.

[7] A. Badmos, H. Henein and D.G. Ivey: International Journal of Powder Metallurgy, Vol 39, 2003, pp.39-52.

[8] J.F. Xu and Q.Y. Zhai: Rare Metal Materials and Engineering, Vol 33, (2004), pp.835-838.

[9] H-L. Zhao, S-K. Guan and F-Y. Zheng: Transactions of Nonferrous Metals Society of China, Vol 15, (2005), pp.144-148.

[10] M. Czechowski: Journal of Materials Processing Technology, Vol 164-165, (2005), pp.1001-1006.

[11] N.C.W. Kuijpers, F.J. Vermolen and C. Vuik: Materials Science and Engineering A, Vol 394, (2005), pp.9-19.
