Study on the Microstructure and Mechanical Property of High Strength Mg-Nd-Zn-Zr Alloy

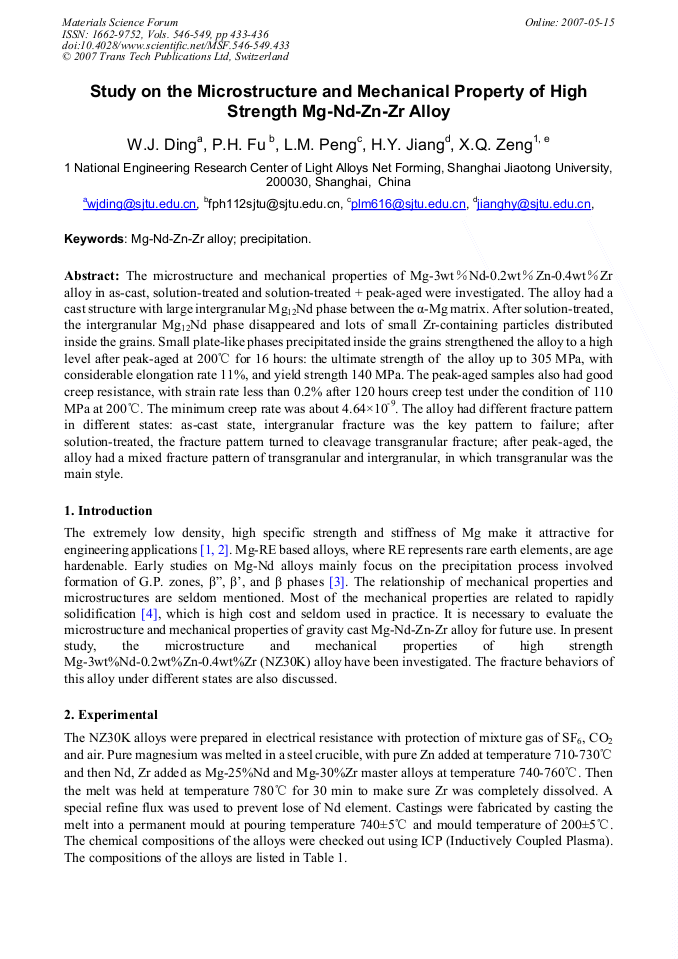

Article Preview

The microstructure and mechanical properties of Mg-3wt%Nd-0.2wt%Zn-0.4wt%Zr alloy in as-cast, solution-treated and solution-treated + peak-aged were investigated. The alloy had a cast structure with large intergranular Mg12Nd phase between the α-Mg matrix. After solution-treated, the intergranular Mg12Nd phase disappeared and lots of small Zr-containing particles distributed inside the grains. Small plate-like phases precipitated inside the grains strengthened the alloy to a high level after peak-aged at 200°C for 16 hours: the ultimate strength of the alloy up to 305 MPa, with considerable elongation rate 11%, and yield strength 140 MPa. The peak-aged samples also had good creep resistance, with strain rate less than 0.2% after 120 hours creep test under the condition of 110 MPa at 200°C. The minimum creep rate was about 4.64×10-9. The alloy had different fracture pattern in different states: as-cast state, intergranular fracture was the key pattern to failure; after solution-treated, the fracture pattern turned to cleavage transgranular fracture; after peak-aged, the alloy had a mixed fracture pattern of transgranular and intergranular, in which transgranular was the main style.



Materials Science Forum (Volumes 546-549)

Edited by:

Yafang Han et al.




W. J. Ding et al., "Study on the Microstructure and Mechanical Property of High Strength Mg-Nd-Zn-Zr Alloy", Materials Science Forum, Vols. 546-549, pp. 433-436, 2007

Online since:

May 2007




[1] B.L. Mordike, T. Ebert: Materials Science and Engineering A, 302 (2001), pp.37-45.

[2] I.M. Baghni, et al.: Trans. Nonferrous Met. Soc. China, 2003, 13(6), pp.1253-1259.

[3] T. J. Pike and B. Noble: Journal of the Less-Common metals, 30(1973), pp.63-74.

[4] W. J. Park, Hyun Park, D. H. Kim, Nack J. Kim: Materials science and engineering A, 180 (1994), pp.637-640.

[5] Peng liming, Fu penghuai, Jiang haiyan, et al.: The microstructure and mechanical properties of low pressure die cast AM50 magnesium alloy, ICM2006, accepted.

[6] Fu penghuai, Peng liming, Jiang haiyan, et al.: Zr-containing precipitations in Mg- 3wt%Nd -0. 2wt%Zn -0. 4wt%Zr alloy during solution treatment at 540℃, ICM2006, accepted Crack along grain boundary Crack inside grains Crack along grain boundary Intergranular Transgranular (a) (c) (b).
