A Cyclic Stress-Strain Constitutive Model for Polycrystalline Magnesium Alloy and its Application

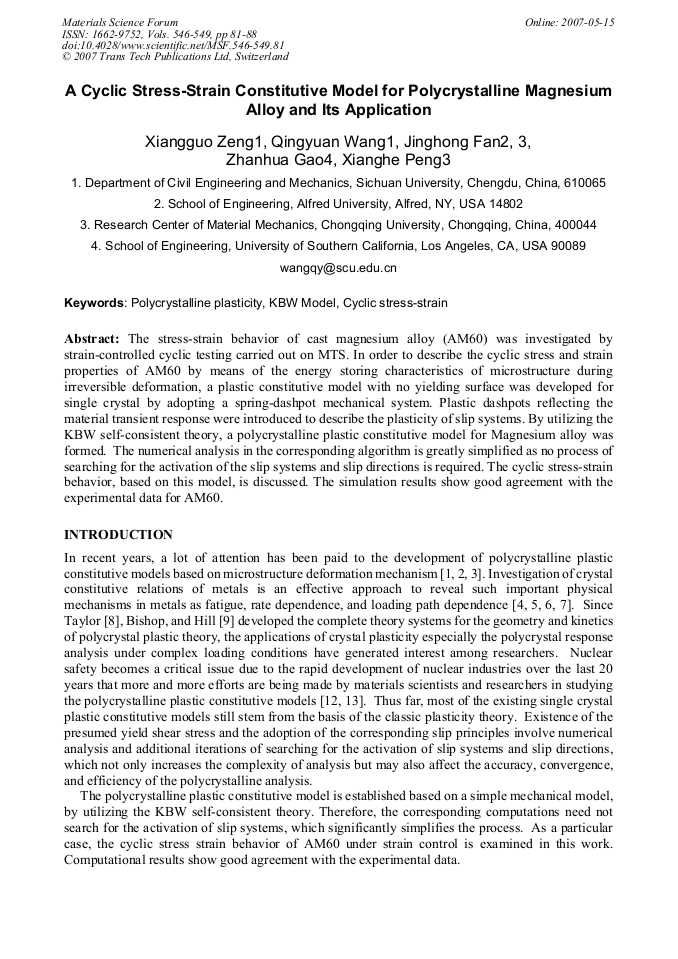

Article Preview

The stress-strain behavior of cast magnesium alloy (AM60) was investigated by strain-controlled cyclic testing carried out on MTS. In order to describe the cyclic stress and strain properties of AM60 by means of the energy storing characteristics of microstructure during irreversible deformation, a plastic constitutive model with no yielding surface was developed for single crystal by adopting a spring-dashpot mechanical system. Plastic dashpots reflecting the material transient response were introduced to describe the plasticity of slip systems. By utilizing the KBW self-consistent theory, a polycrystalline plastic constitutive model for Magnesium alloy was formed. The numerical analysis in the corresponding algorithm is greatly simplified as no process of searching for the activation of the slip systems and slip directions is required. The cyclic stress-strain behavior, based on this model, is discussed. The simulation results show good agreement with the experimental data for AM60.



Materials Science Forum (Volumes 546-549)

Edited by:

Yafang Han et al.




X. G. Zeng et al., "A Cyclic Stress-Strain Constitutive Model for Polycrystalline Magnesium Alloy and its Application", Materials Science Forum, Vols. 546-549, pp. 81-88, 2007

Online since:

May 2007




[1] Voyiadjis, G. Z., Al-Rub, R. K. A., Palazotto, A. N., Int. J. of Plasticity, 2004, Vol. 20(6): 981-1038.

[2] Kowalczyk, K., Gambin, W., Int. J. of Plasticity, 2004, 20, 19-54.

[3] Tashman, L., Masad, E., Dallas, L., and Zbib, H., Int.J. Plast., 2005, 21(9): 1659-1854.

[4] L. Meric, P. Poubanne and G. Cailletaud, ASME Journal of Applied Mechanics. Vol 113, Jan 1991, 162-170.

[5] L. Meric and G. Cailletaud, Journal of Engineering Materials and Technology. Vol 113, Jan 1991, 171-182.

[6] Peng Xianghe Zeng Xiangguo and Fan Jinghong Applied Mathematics and Mechanics, Vol. 19(10) October 1998:897-906.

[7] Peng Xianghe Zeng Xiangguo Acta Mechanica Solida Sinica, Vol. 21(2) June 2000:131-137.

[8] Taylor G. I, J. Inst Metals, 1938, 62: 307-324.

[9] Bishop J F W, Hill R., Phlos Mag, 1951, 42: 414-427.

[10] Hill. Rice J R., J Mech Phys Solids, 1972, 20: 401-413.

[11] Hill R., JMech Phys Solids, 1966, 14: 95-102.

[12] Peng X and Fan J., Computers and Structures, 1993, 47: 313-320.

[13] E.H. Jordan, K.P. Walker, Journal of Engineering Materials and Technology, Jan 1992, Vol 114/19.

[14] Bassani J.L. Appl Mech Rev, 1990, 43(5): 320-327.

[15] Polmear, I. J., Introduction: History, Production, Applications, and Markets, in ASM SpecialtyHandbook: Magnesium and Magnesium Alloys, eds. Avedesian, M. M., Baker, H., Materials Park, OH: ASM International (1999).

[16] Aune, T. K., and Westengen, H., Automotive Engineering, , August 1995 pp.87-92.

[17] Pengxianghe Zengxiangguo Fanjinghong , Mathematics and Mechanics, Vol. 19, No. Oct. 1998 971-982.

[18] Zeng X. Microscopic and Phenomenlogical Study on Polycrystal Plasticity and Creep, Ph.D. Dissertation, Chongqing University, (1996).
